Bottle Air Rinser

CVC 1102-400

The CVC 1102-400 Bottle Air Rinser is Equipped with powerful clean air jet and vacuum suction which are combined with 180-degree inversion of bottle at speeds of up to 80 bottles per minute. The CVC 1102-400 series Automatic Bottle Air Rinser are the ideal solution for oral products lines to achieve cGMP compliance.

Different bottle sizes are easily change over with customized bottle format change parts.

STANDARD FEATURES

  • Display touchscreen instruction for machine operation is available in two languages.
  • Interlocked safety guarding.
  • Bottle backlog sensor at outfeed.
  • Type 304 stainless steel bin, frame, enclosure panels.
  • Type 316 stainless steel contact parts.
  • ISO 9001:2015 certified.

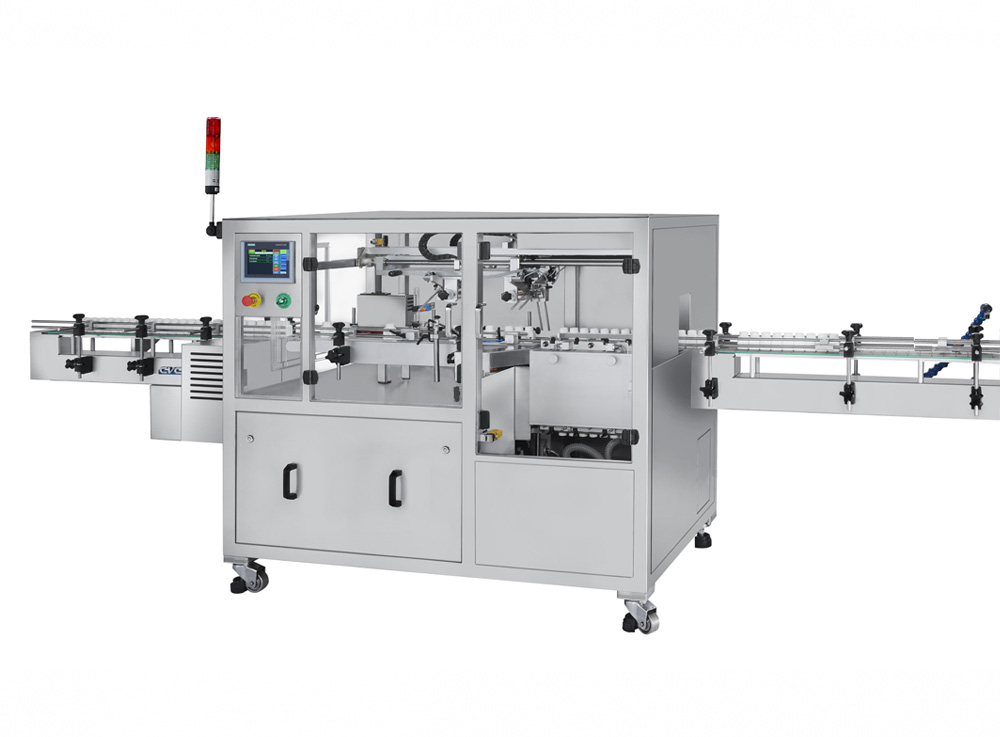

CVC 1102-400
CVC 1102-400

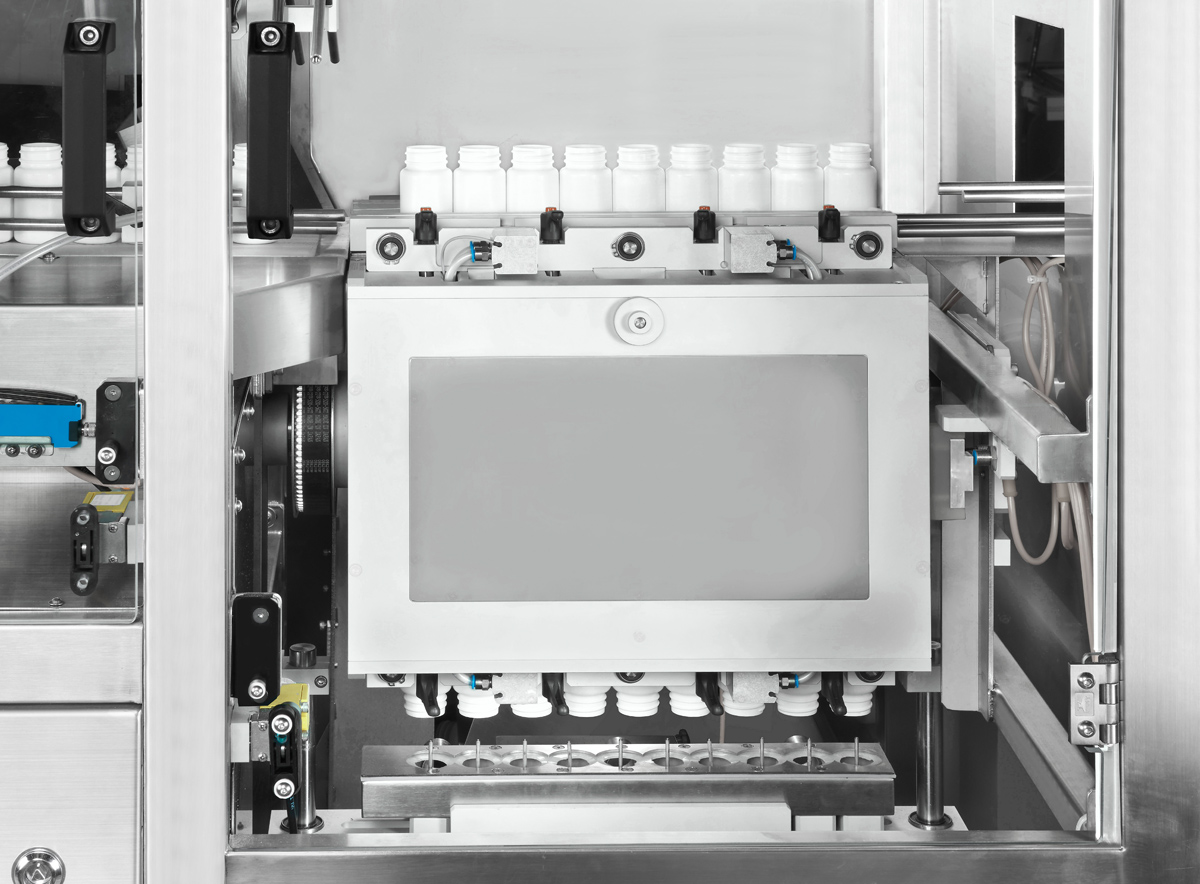

Air Rinse Station
Air Rinse Station
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Static eliminator bar in disc sorter
  • Ionized air rinsing assembly with collection tray
  • Tower lamp
  • 21CFR Part 11 License



MACHINE LAYOUTS:




The dimensions shown are for standard machine. The conveyor can be extended: the length may vary based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.


Technical Specifications CVC 1102-400 Technical Specifications
Type U4
Productivity Up to 80-100 BPM (subject to trial confirmation)
Applicable Size Bottle Dia.: Ø30-80 mm (1 1⁄4" to 3 1⁄4")
Bottle Height: 50-150 mm (2" to 6")
Air Filter Efficiency 0.01μm (99.99 %)
Power source 220 V, 50/60 HZ, 1 PH
Power Consumption 1,230 VA (5.6 A) (with Air Rinse & Vacuum)
Air Pressure 6 bar (87 psi)
Air Consumption 1,250 NL/min (43.7 CFM)
Machine Dimensions ( L x W x H ) 1,605 x 1,050 x 1,435 mm
(5'-4" x 3'-6" x 4'-9")
Machine Weight 425 kg (937 lbs)
Noise Level ≤ 78 dB
