Wrap-Around Labeler

CVC 302

The 302 Hawk™ Labeler is uniquely designed for pharmaceutical as well as other companies that value quality control in packaging.

STANDARD FEATURES

  • Stops automatically if the optional bar code scanner can not verify the bar code
  • Stops automatically if the label length is incorrect
  • Auto rejection system for missing hot stamp code
  • Auto rejection system for missing label
  • Featuring CVC SelfSet™
  • Automatic adjustment of product separation: The CVC 302 automa-tically regulates distance between each bottle to prevent missing labels caused by bottles crowded
  • Servo-driven labeling head brings the remarkable improvement of output labeling speed ranging from 163 to 233 feet per minute
  • Meets cGMP requirements, and ISO 9001:2015 standards
  • The labeling head is powered by servo motor for increased speed, power and accuracy
  • Touch screen control programmed in English, Spanish and Chinese
  • The CE model is available upon request

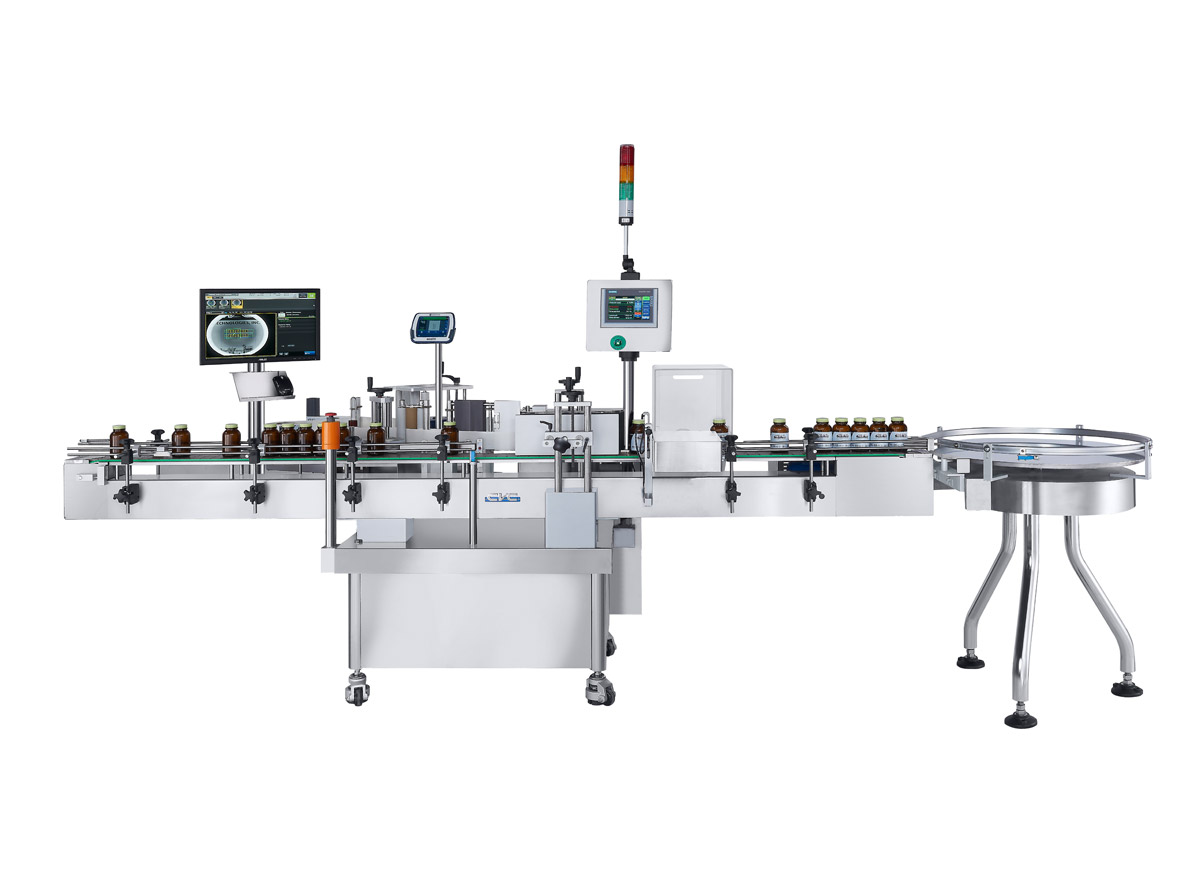

CVC 302
CVC 302

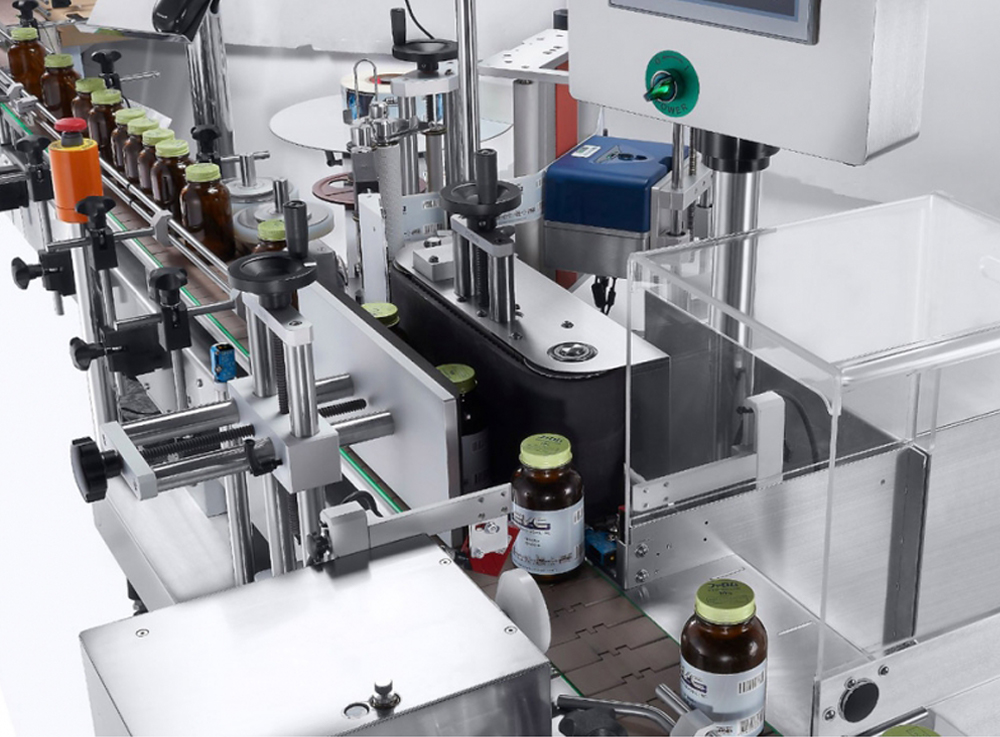

CVC 302+IPC+轉盤
CVC 302+IPC+轉盤

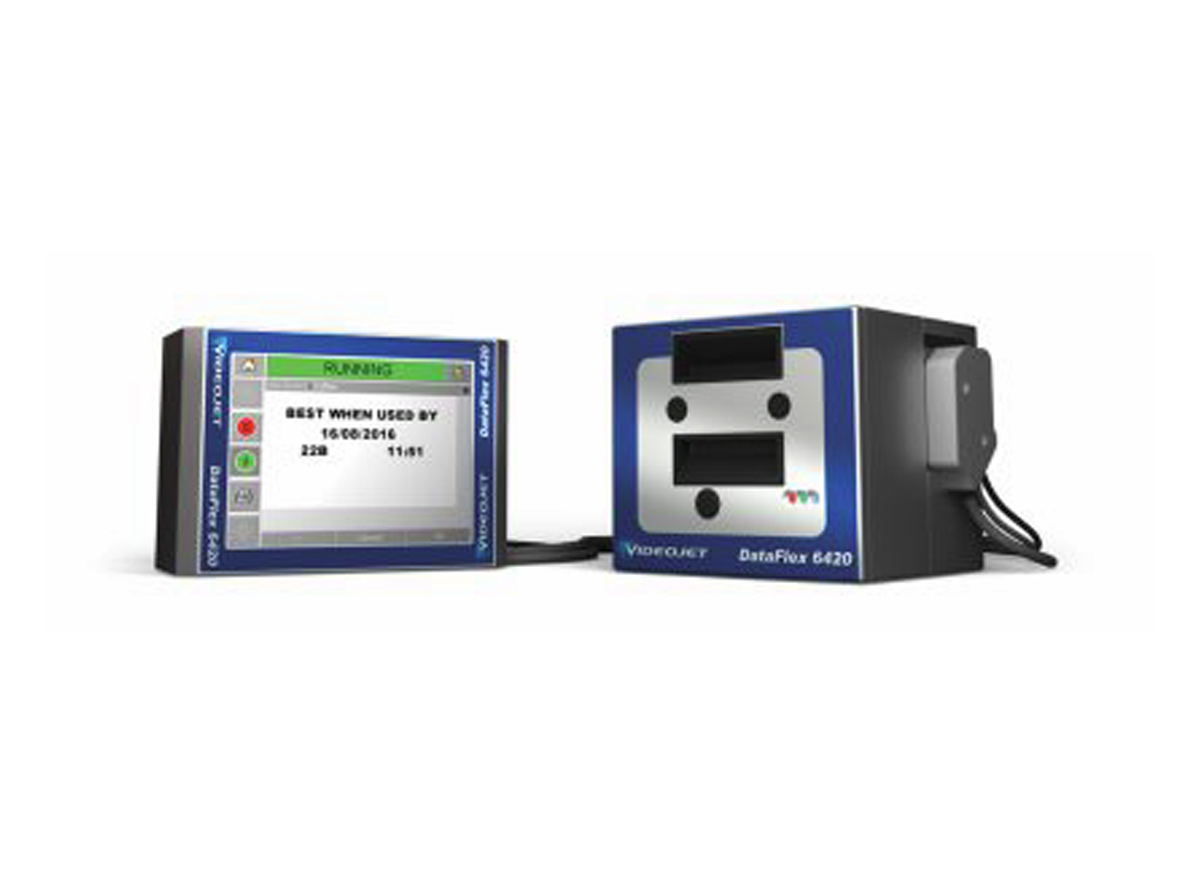

THERMAL TRANSFER PRINTER
THERMAL TRANSFER PRINTER

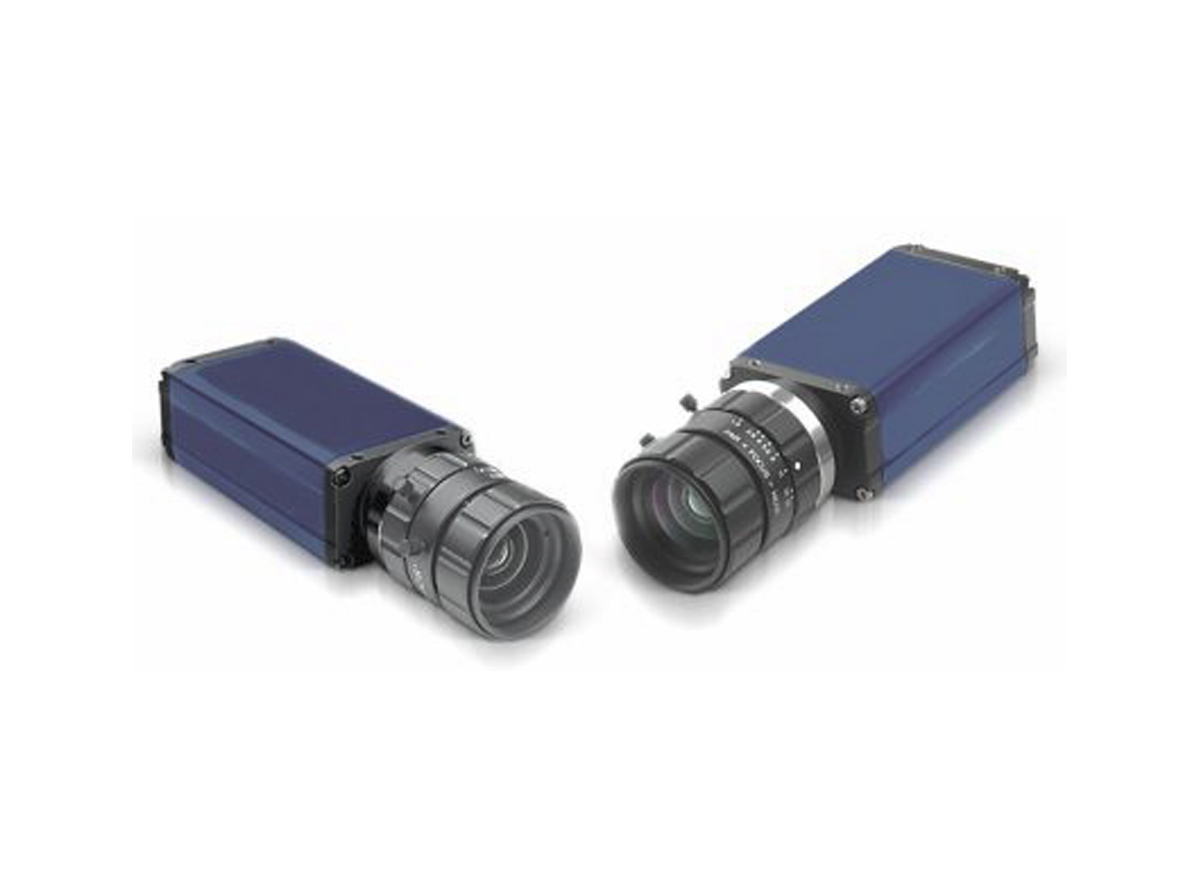

VISION INSPECTION SYSTEMS
VISION INSPECTION SYSTEMS
CVC 302
CVC 302
CVC 302
CVC 302
CVC 302
CVC 302
CVC 302
CVC 302
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • C70 Hot Stamp (Lot/Date Coding)
  • Missing Hot Stamp Imprint Check
  • Integrated Thermal Printer (Lot/Date, Bar Code and Graphics)
  • Dataflex or Similar Lot/Date Code Printer
  • Clear, Metalic or Color Label Sensor
  • End to end Transfer Plates
  • Infeed and outfeed Conveyor Extensions
  • Adjustable Tilt for Tapered Bottles
  • Product Infeed Tray With Stainless Steel Insert And Paddle For Easy Product Loading Onto A Rotary Turntable

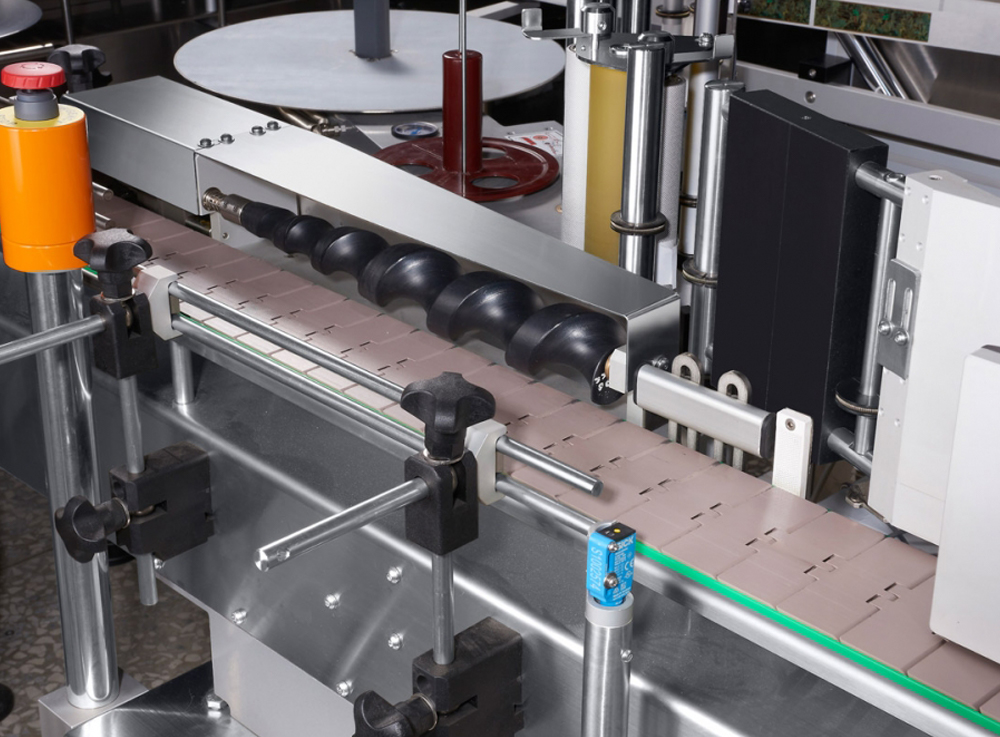

  • Feed Screw
  • Custom Made Wrap Station

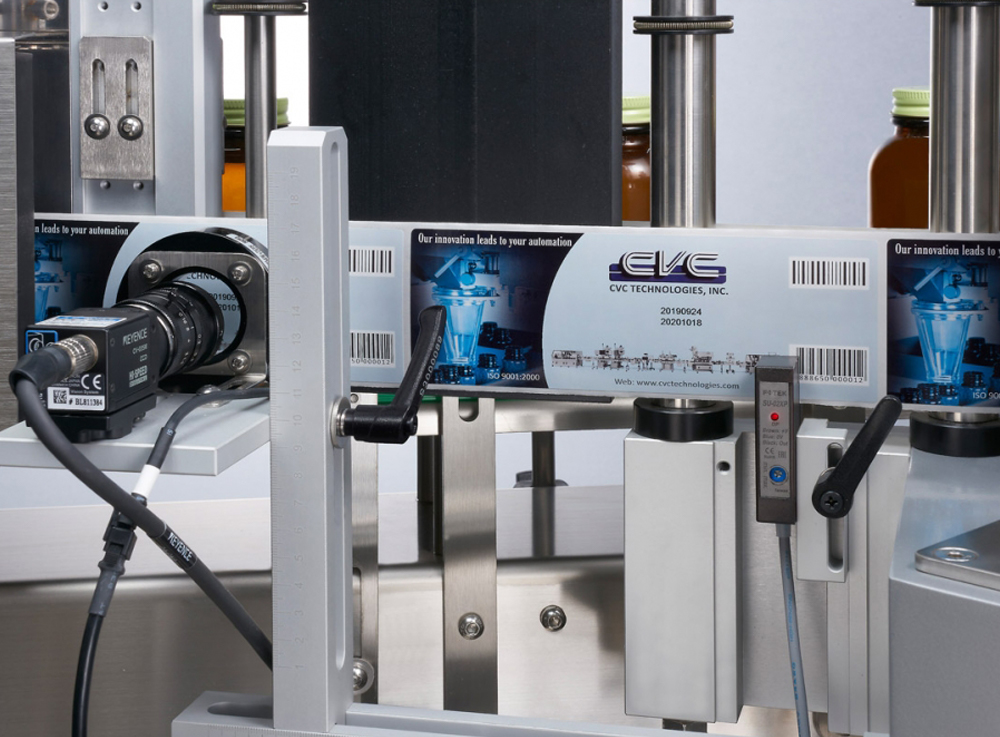

  • Camera Detection (OCV System)
  • Missing Label Detection System (UV)
  • Rejection System
  • Rejection Verification Check
  • 3-Color Tower Stack Light
  • 21CFR Part 11 Compliance
  • OPC UA for Data Collection

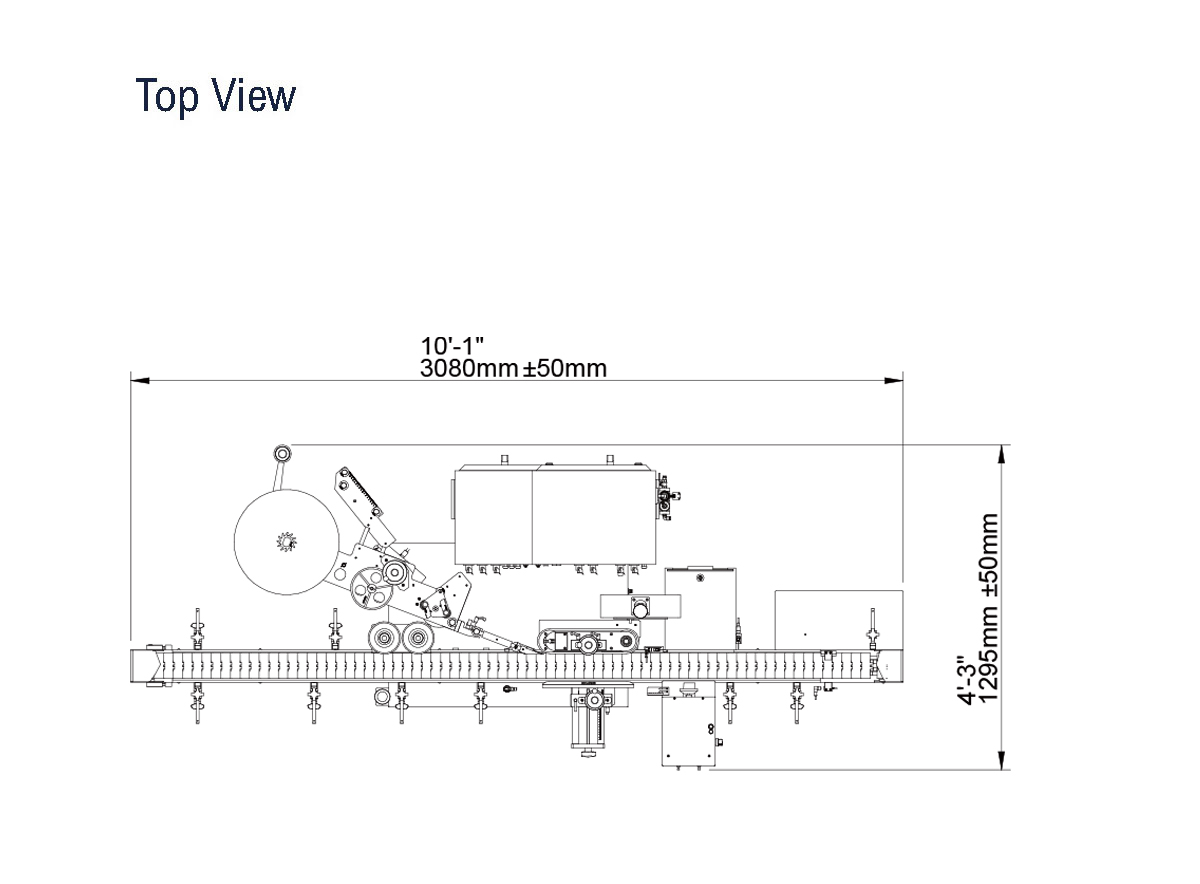

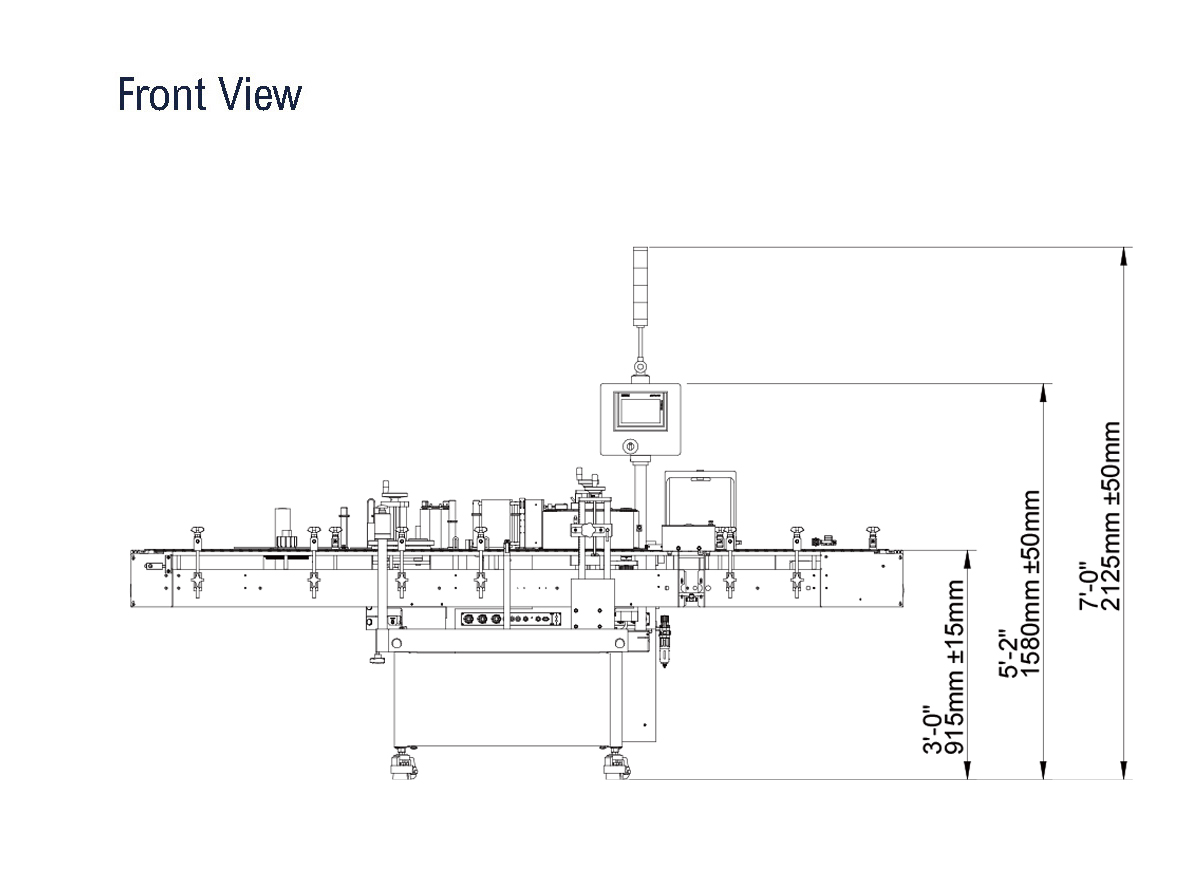

MACHINE LAYOUTS:


The dimensions shown are for standard machine. The conveyor can be extended: the length may vary based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.


All CVC labelers include our patented Self Set™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.

Technical Specifications CVC 302 Technical Specifications
Type U4
Productivity Up to 150 BPM (subject to trial confirmation)
Up to 250 BPM (Tiny Bottle and Feed Screw)
Labeling Speed: 75 M/min (246 ft/min)
Applicable Size Label:
Length: 15-254 mm (1⁄2" to 10")
Width: (depend on label head type)
A: 15-80 mm (1⁄2" to 3") (only CVC 302)
B: 15-120 mm (1⁄2" to 4 3⁄4")
C: 15-150 mm (1⁄2" to 6")
D: 15-180 mm (1⁄2" to 7")
E: 15-220 mm (1⁄2" to 8 3⁄4")
Bottle:
Dia.: Ø30-110 mm (1 1⁄4" to 4 1⁄4")(depend on conveyor width)
Height: 50-320 mm (2” to 12 1⁄2")
Power source 220 V, 50/60 HZ, 1 PH
Power Consumption 880 VA (4 A)
Air Pressure 6 bar (87 psi)
Air Consumption 78.5 NL/min (2.8 CFM)
(for optional reject and Lot/Date printer)
Machine Dimensions ( L x W x H ) 3,080 x 1,295 x 1,580 mm (10’-1” x 4’-3“ x 5’-2“)
Machine Weight 370 kg (816 lbs)
Noise Level ≤ 75 dB
