Wrap-Around Labeler

CVC 300.U2

The CVC 300.U2 Wrap-Around Labeler is built to automatically apply pressure sensitive labels onto round containers at up to 200 bottles per minute. The CVC 300.U2 is servo motor controlled, comes standard with a touch screen HMI, and can be ordered with various inspection options including bar code verification, vision, and missing label detection. The CVC 300.U2 labeling system is an ideal machine for contract packagers and manufacturers serving the pharmaceutical, nutraceutical, and food markets.l, food, cosmetic, personal care, and household product markets.

The CVC 300.U2 labelers include our SelfSet™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button. It can run stand alone or integrated into a full packaging line.

STANDARD FEATURES

  • Self Set™ auto adjusting control system
  • Stainless steel frame on lockable casters
  • Stainless steel flat-bed conveyor with 4" wide table top chain (raised sanitary bed) Upgradeable to 6" wide
  • Touchscreen HMI

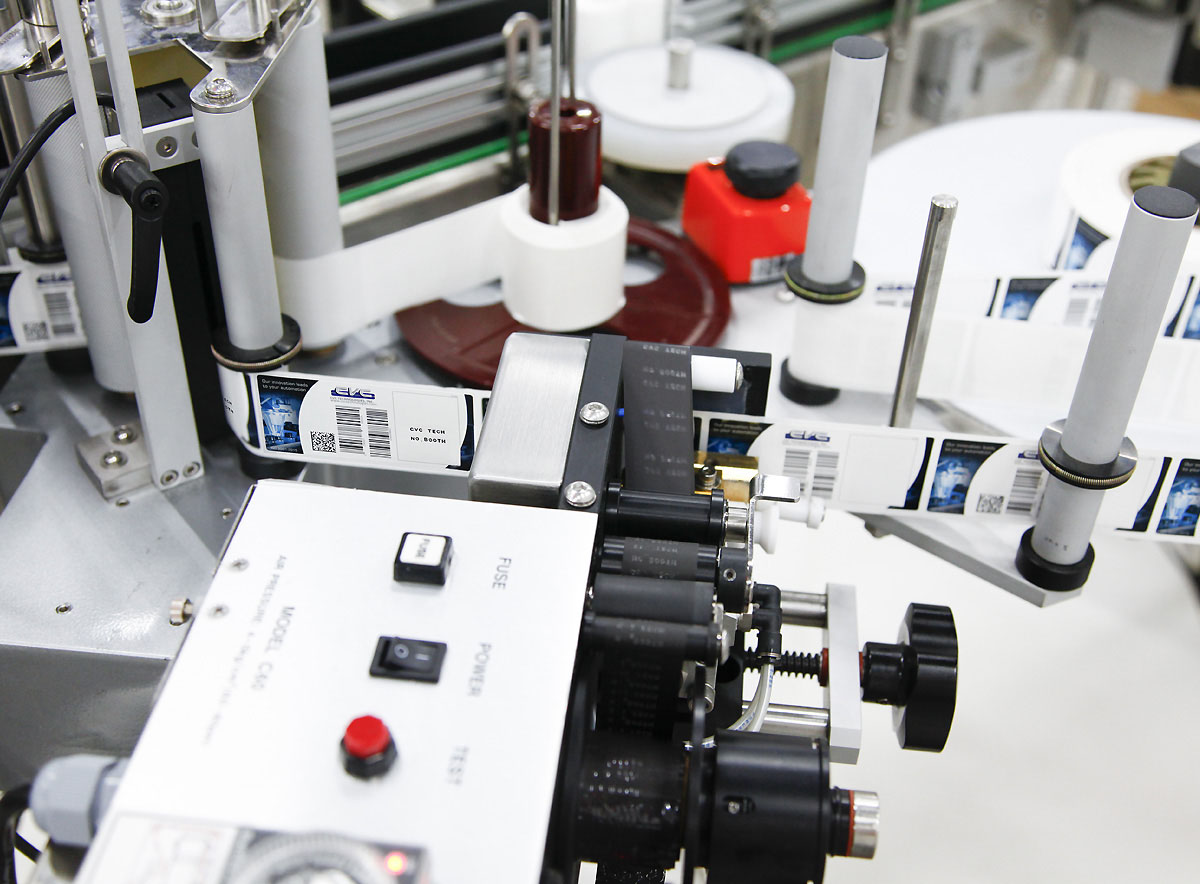

  • Label head with up to ± 1/32” accuracy
    (* bottles / containers dependent)
  • Label sensor for paper or opaque labels
  • Product sensor with opaque and clear bottle mode
  • Variable speed separator wheel
  • Type 304 stainless steel construction
  • ISO 9001 : 2015 certified

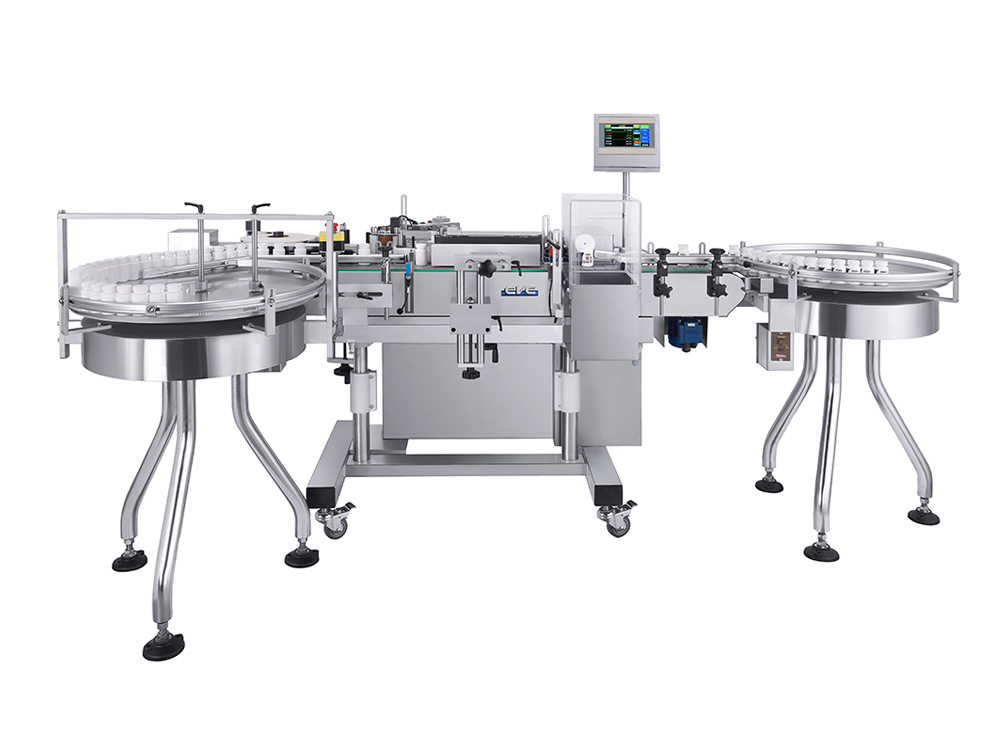

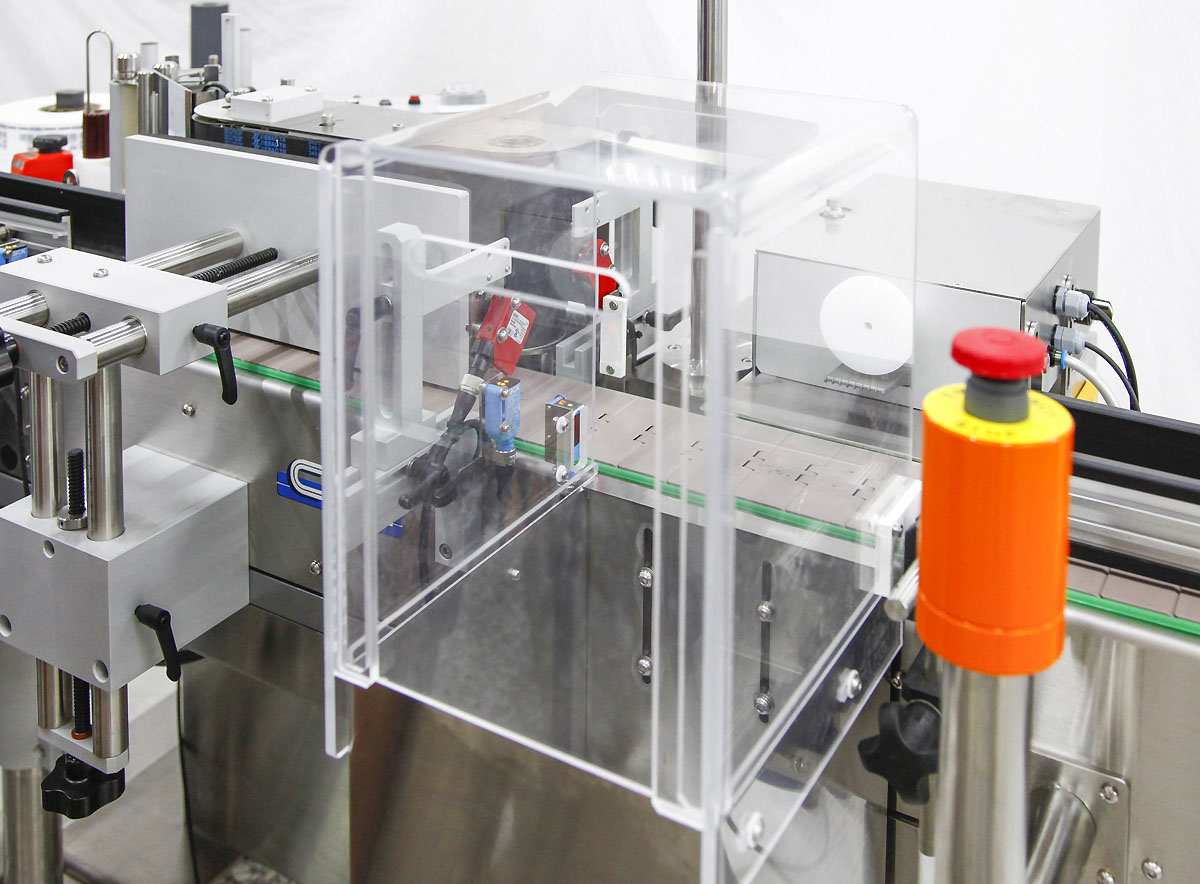

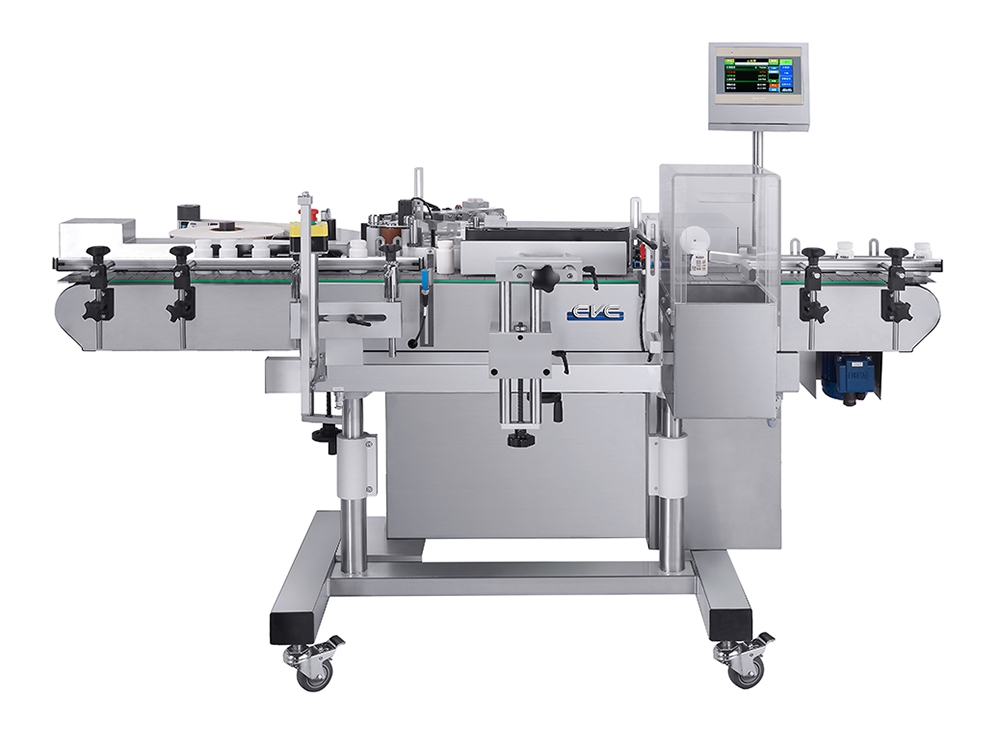

CVC 300.U2
CVC 300.U2
CVC 300.U2
CVC 300.U2
CVC 300.U2
CVC 300.U2
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Hot Stamp (Lot/Date Coding)
  • Integrated Thermal Encoder(Lot/Date, Bar Code and Graphics)
  • Adjustable tilt for tapered bottles
  • Bottle Reject system (air blow or cylinder)
  • Clear Label Sensor
  • Custom Wrap Belts
  • Custom Feed Screws
  • Infeed and Outfeed Conveyor Extensions
  • Bar Code verification
  • Detection for end of label roll or/ and label web break off(Factory Installed Only)
  • Missing Label Detection System (UV)
  • Oufeed Turntable
  • Missing Imprint Check system

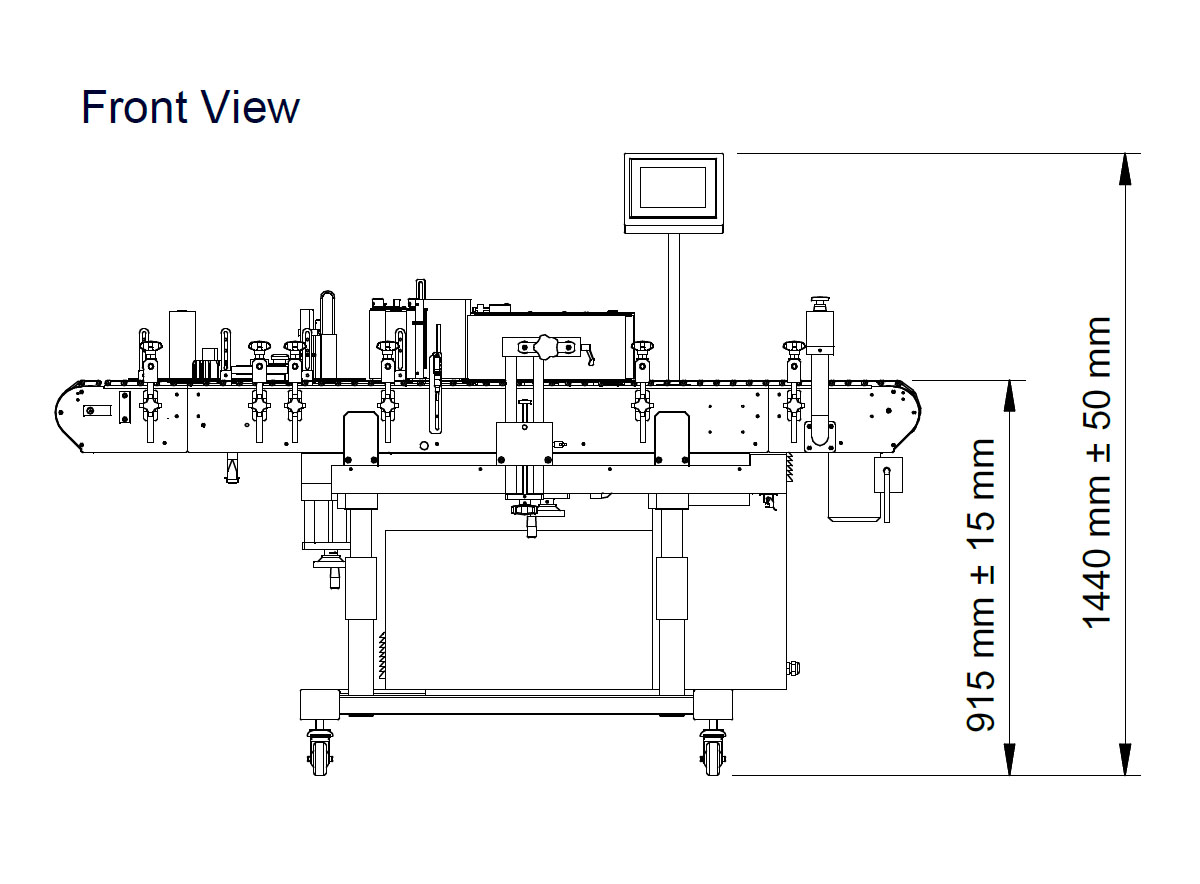

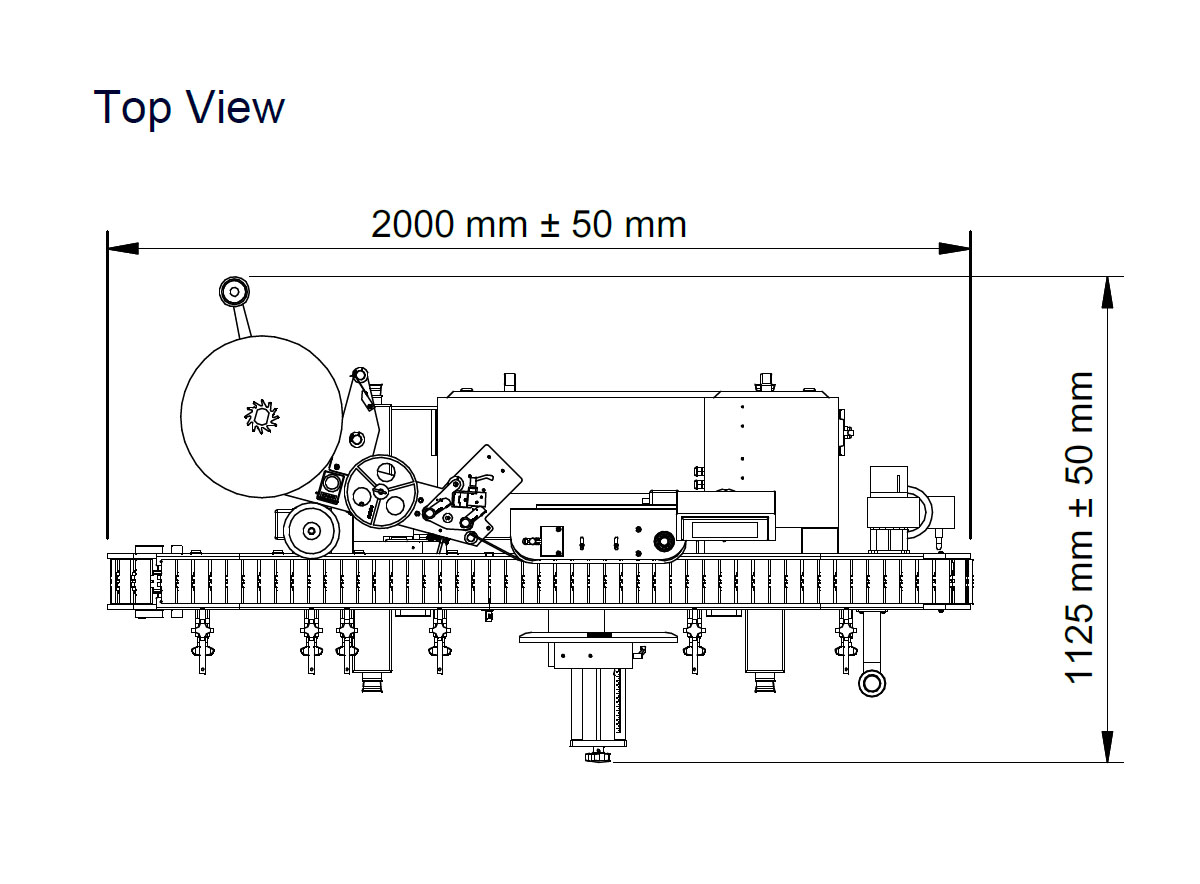

MACHINE LAYOUTS:


Technical data contained in this material are not binding and may be subject to change without prior notice.


All CVC labelers include our patented Self Set™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.


Technical Specifications CVC 300.U2 Technical Specifications
Type U2
Max. Productivity Up to 200 BPM (base on 60 ml (Ø 40 x H. 77 mm) round bottle, labele L. 50 x W. 40 mm, subject to trial confirmation)
Applicable Size Bottle:
Dia.: Ø 25- 102 mm (1”- 4”)
Height: 50- 320 mm (2”- 12 1⁄2”)
Labeler:
Width: 15- 220 mm ( 1⁄2”- 8 3⁄4”)
Length: 15- 254 mm ( 1⁄2”- 10”)
Power source 110/220 V, 50/60 HZ, 1 PH
Power Consumption 880 VA (110V: 8 A, 220V: 4 A)
Air Pressure 6 bar (85 psi)
Air Consumption 50 NL/min (for optional reject and Lot/Date printer)
Consumption Machine Dimensions 2,000 x 1,125 x 1,440 mm (6’-6” x 3’-7” x 4’-7” )( L x W x H )
Conveyor Width 100 mm (3 3⁄4”””)
Conveyor Length 2000 mm (78 3⁄4”)
Machine Weight 200 kg (441 lbs)
Noise Level ≦ 75 dB
