Top Labeler

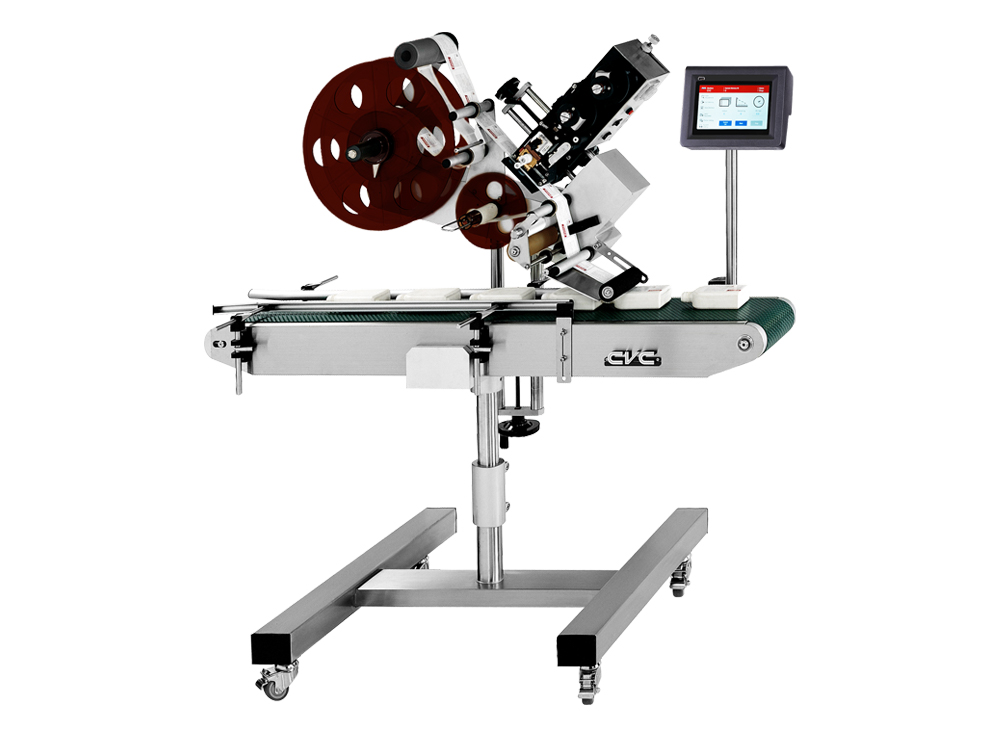

CVC 200

The CVC 200 Top Labeler is built to automatically apply pressure sensitive labels onto the top or side of flat and indented containers. The 200 comes standard with a 6” wide belt conveyor and is ideal for contract packagers and manufacturers serving the nutraceutical, food, cosmetic, personal care, and consumer electronic markets.

All CVC labelers include our patented Self Set™ software which utilizes a high frequency encoder for extremely easy setup and wrinkle free labeling at the touch of a button.

STANDARD FEATURES

  • SelfSet™ Auto Adjusting Control System

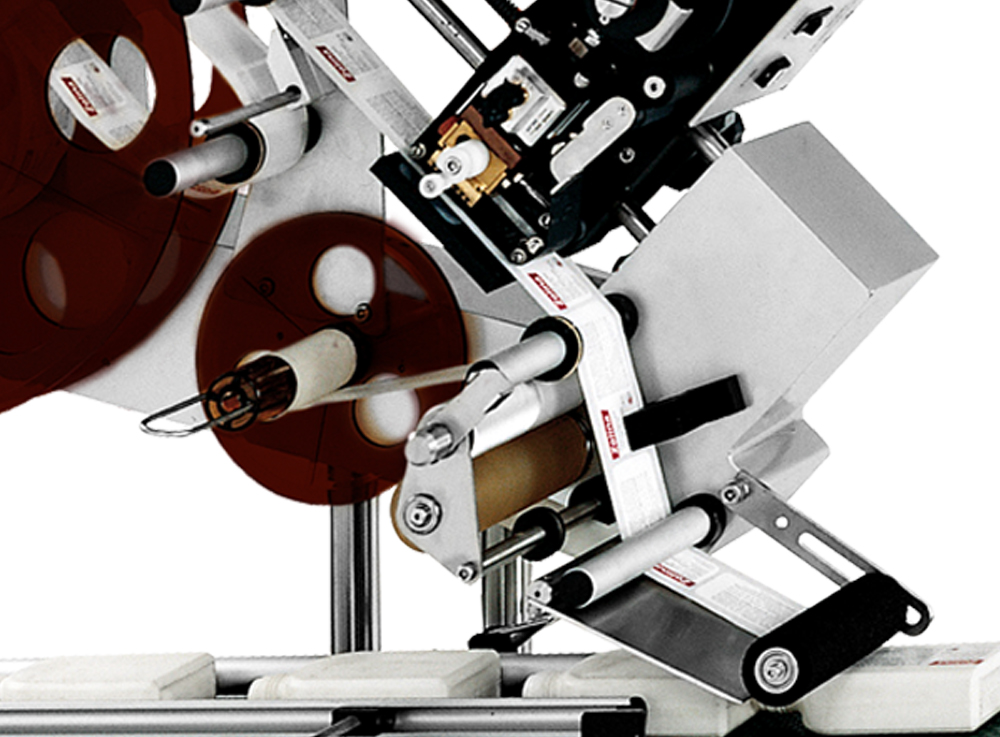

  • Stepper Motor (or Servo Motor) Driven Head Labeling
  • Touch Screen HMI
  • Label Head with up to ± 1 mm (1/32”) Accuracy (*Bottles/ Containers Dependent)
  • Label Sensor for Paper or Opaque Labels
  • Stainless Steel Frame on Lockable Casters
  • Stainless Steel Flatbed Conveyor, 6” Wide Endless Green Belt
CVC 200
CVC 200

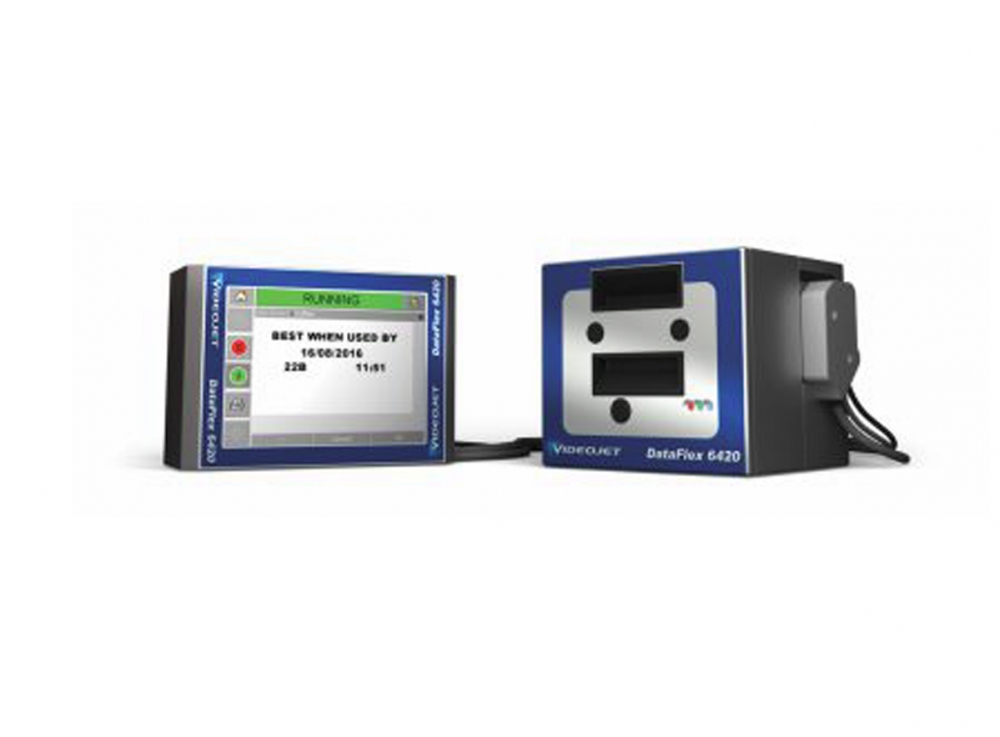

THERMAL TRANSFER PRINTER
THERMAL TRANSFER PRINTER
CVC 200
CVC 200
Previous Next Play Pause
CVC 200 THERMAL TRANSFER PRINTER CVC 200

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • C60/ C70 Hot Stamp (Lot/Date Coding)
  • Integrated Thermal Encoder (Lot/Date, Bar Code and Graphics)
  • Clear, Metallic or Color Label Sensor
  • Dataflex or similar Lot/Date Code Printer
  • End to End transfer plates
  • Infeed and Outfeed Conveyor Extensions
  • Separator wheel for controlled spacing

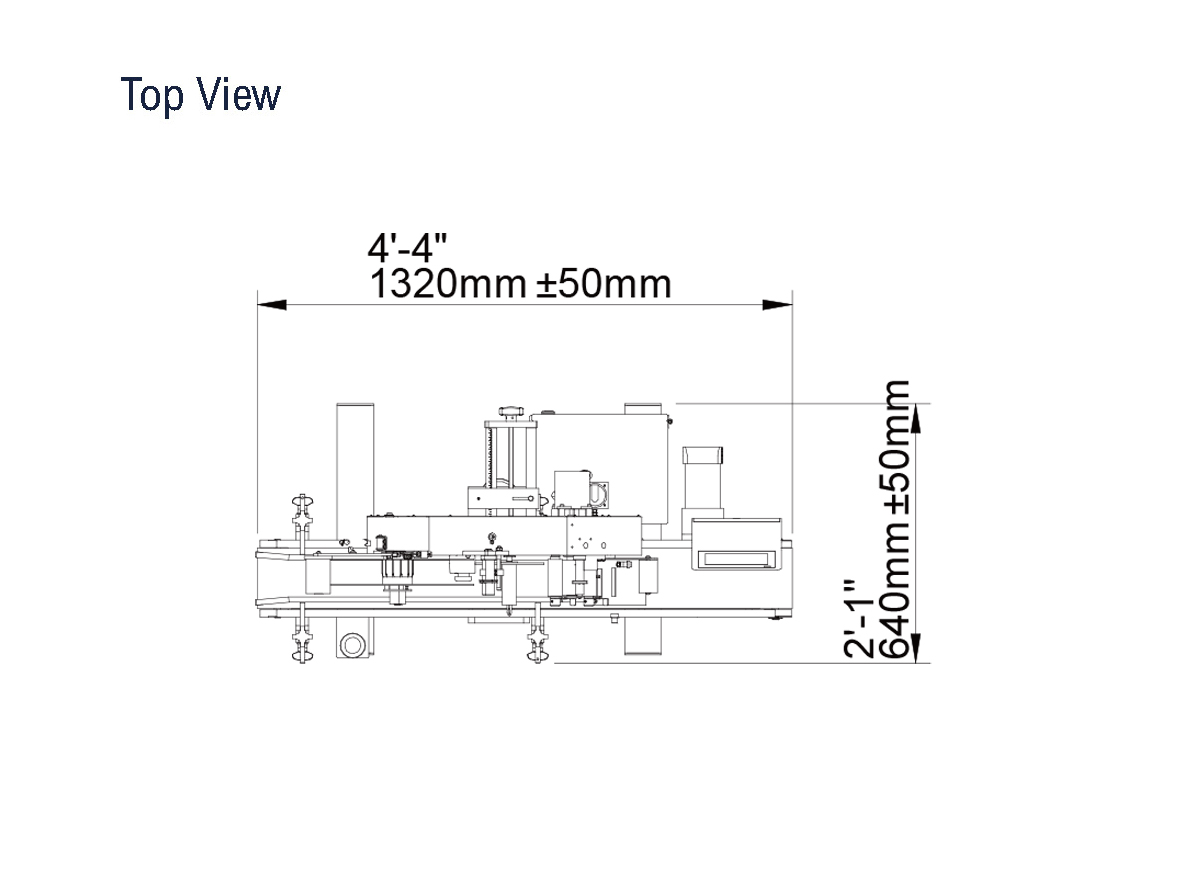

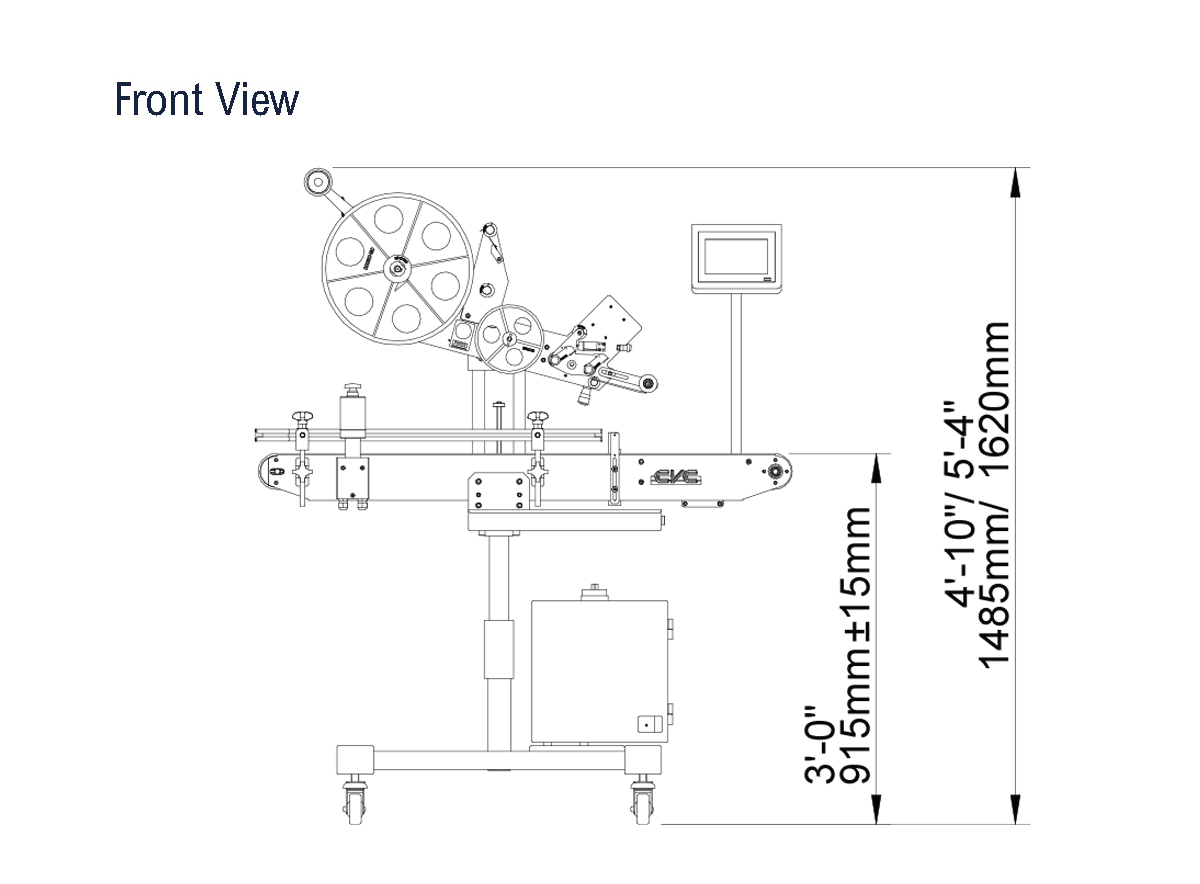

MACHINE LAYOUTS:

The dimensions shown are for standard machine. The conveyor can be extended: the length may vary based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.

Note: The actual rates may var y significantly depending on the following: products, product characteristics, required fill counts, quantity or volume, and bottle dimensions.

Technical Specifications CVC 200 Technical Specifications
Productivity Up to 200 PPM (subject to trial confirmation)
Dispense Speed: 24 M/min (78 ft/min)
Applicable Size Label:
Length: 15-254 mm (1⁄2" to 10")
Width: (depend on label head type)
　A: 15-80 mm (1⁄2" to 3")
　B: 15-120 mm (1⁄2" to 4 3⁄4")
　C: 15-150 mm (1⁄2" to 6")
Product:
Length: 30-260 mm (1 1⁄4" to 10 1⁄4")
Width: 25-150 mm (1” to 6”)
Height: 15-150 mm (1⁄2" to 6”)
Power source 110/220 V, 50/60 HZ, 1 PH
Power Consumption 350 VA (110V: 3.2 A, 220V: 1.6 A)
Air Pressure 6 bar (87 psi)
Air Consumption 50 NL/min (1.8 CFM)
(for optional Lot/Date printer)
Machine Dimensions ( L x W x H ) 1,320 x 640 x 1485- 1,620 mm
(4’-4” x 2’-1“ x 4’-10” to 5'-4")
Machine Weight 130kg (287 lbs)
Noise Level ≤ 75 dB
