TABLET/CAPSULE COUNTER

CVC 1000S-TS

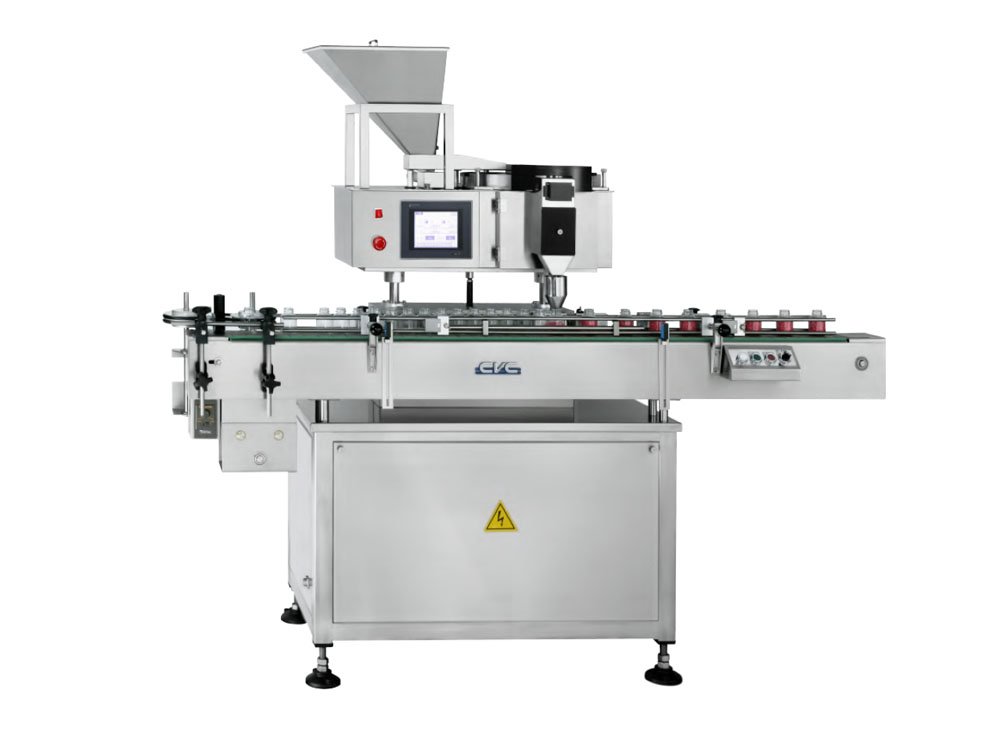

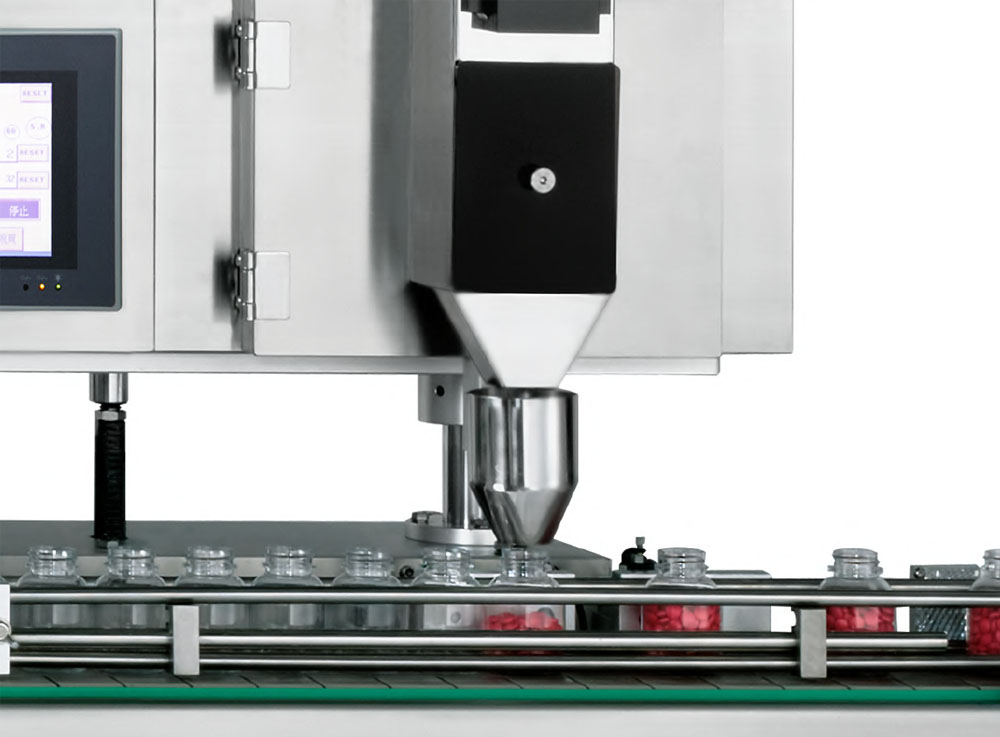

CVC tablet/ Capsule Counter has a simple and reliable design: tablets or capsules loaded from a stainless steel hopper are arranged by a rotary disc, and detected by optical fiber sensors as they are counted and filled into the container.

STANDARD FEATURES

  • Single head Counter with single track conveyor.
  • Output:Tablet (round): 1,000- 2,000 PPM / Capsule: 600- 1,000 PPM
  • Easy operation and adjustment, minimal maintenance and fast products changeover make CVC 1000S-TS series become one of the most popular counters in pharmaceutical industries.
  • Operator can easily setup and adjust machine parameters from the touch screen.
  • Equipped with a conveying and guiding system, CVC 1000S-TS can be perfectly integrated with your existing lines.
  • Dust accumulating port is provided to secure accurate counting. (Vacuum unit is at customer's scope)
  • CVC 1000S-TS series have comprehensive applications for colored capsules, transparent round softgel and coated or uncoated tablets.
  • Designs meet standards of cGMP.
CVC 1000S-TS
CVC 1000S-TS
CVC 1000S-TS
CVC 1000S-TS
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • A dust accumulator is attached inside of the machine to protect machine count accuracy.
  • PC cover for disc and vibrating chute.

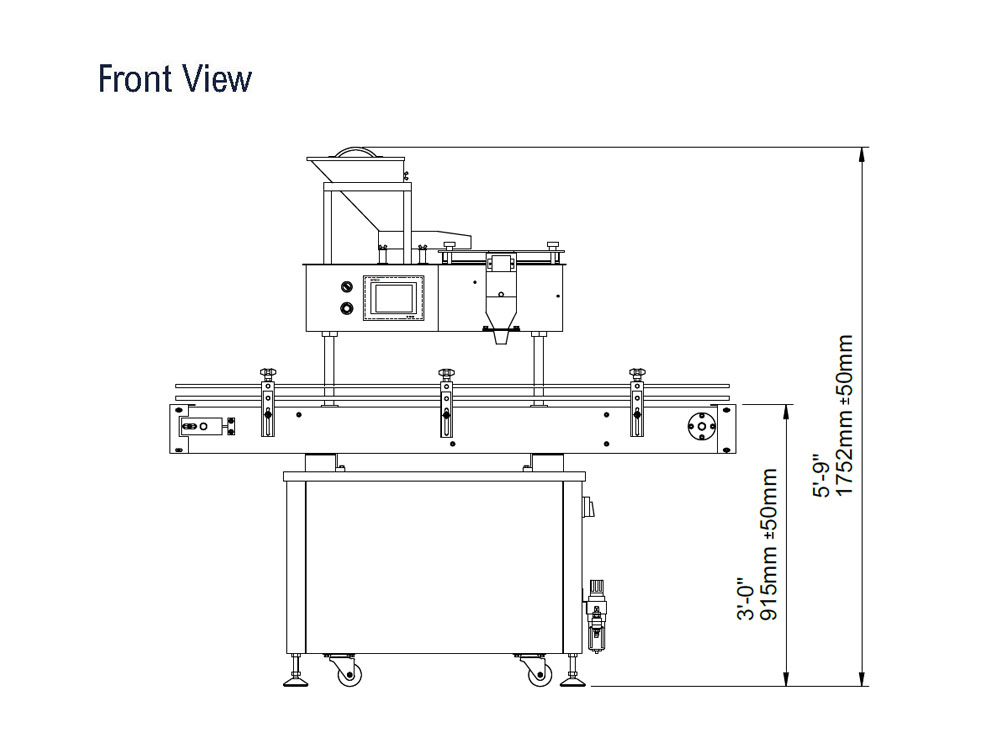

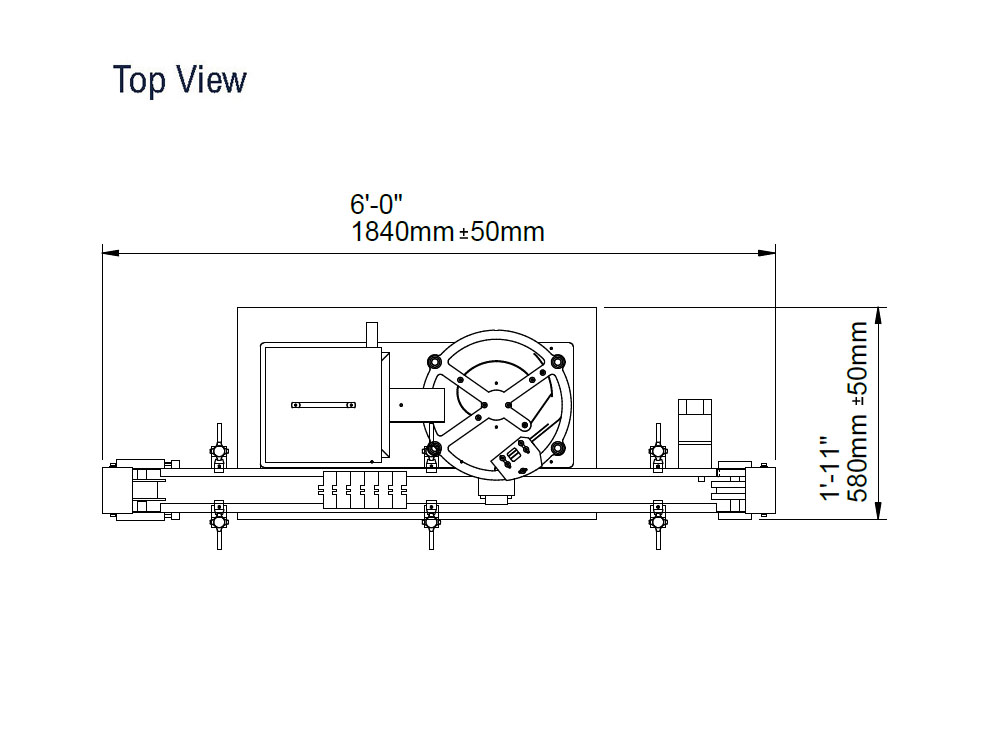

MACHINE LAYOUTS:


Technical data contained in this material are not binding and may be subject to change without prior notice.

Note: The actual rates may var y significantly depending on the following: products, product characteristics, required fill counts, quantity or volume, and bottle dimensions.

Technical Specifications CVC 1000S-TS Technical Specifications
Max. Productivity Round Tablet: 1,000-2,000 PPM Capsule: 600-1,000 PPM (subject to trial confirmation)
Applicable Size Bottle:
Dia.: Ø35-100 mm (1 1/2” to 4”)
I.D. of Mouth: Ø25-85 mm (1” to 3 1/4”)
Height: 50-200 mm (2” to 8”)
Product:
Dia: Ø5-20 mm ( 1/4” to 3/4”)
Length: 5-30 mm ( 1/4” to 1 1/4”)
Width: 5-20 mm ( 1/4” to 3/4”)
Power source 110 V/ 220 V, 50/60 HZ, 1 PH
Power Consumption 110 V: 600 VA (5.5 A)/ 220 V: 600 VA (2.8 A)
Air Pressure 6 bar (87 psi)
Air Consumption 50 NL/min (1.8 CFM)
Consumption Machine Dimensions 1,840 x 580 x 1,752 mm (approx) (6’ x 1’-11” x 5’-9”)( L x W x H )
Machine Weight 180 kg (397 lbs)
Noise Level ≦ 78 dB
