Shrink Bundler & Shrink Tunnel

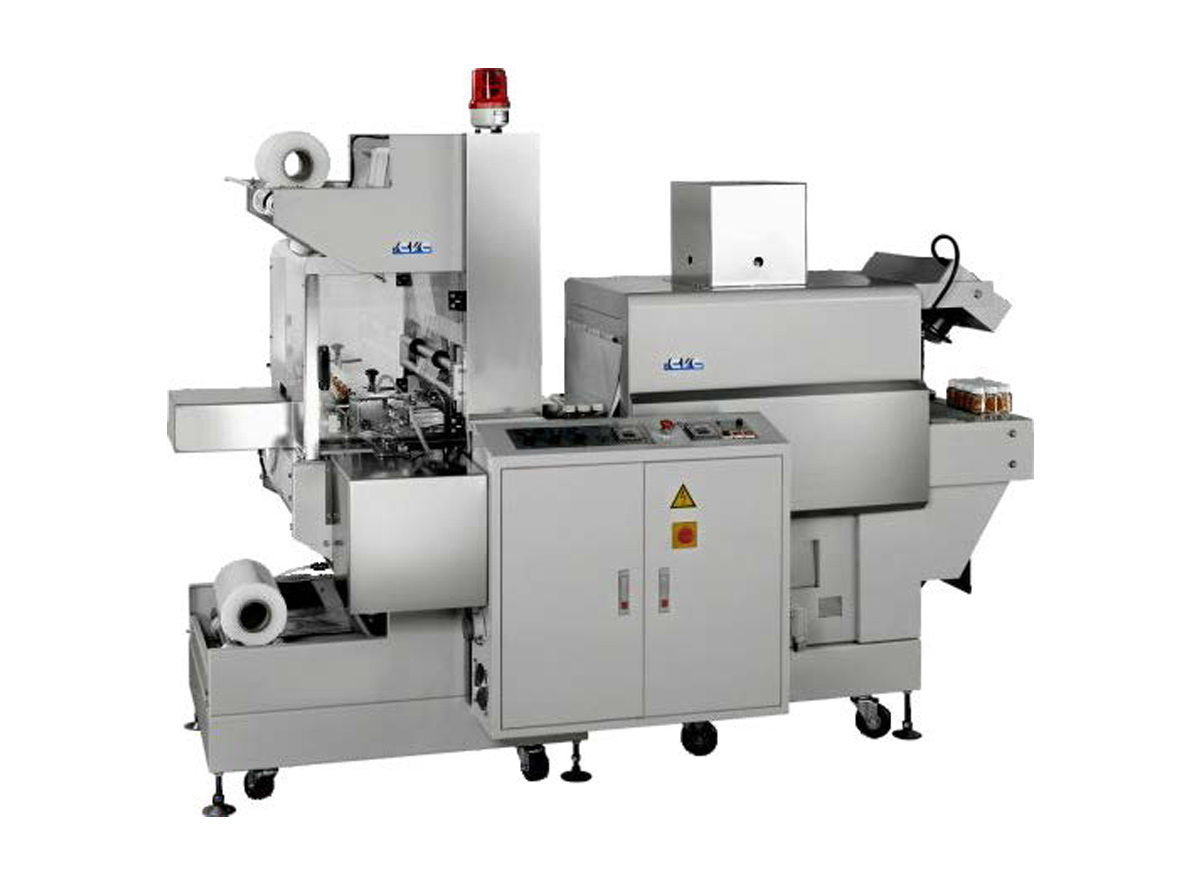

CVC 1661 / CVC 1651

The CVC 1661/1651 Shrink Bundler & Heat Tunnel is a user friendly, compact machine designed to shrink bundle small and medium sized products. Machine options include multiple in-feed configurations and a single or double discharge depending upon rate requirements. The 1650/1651 is an ideal machine for the Nutraceutical, Pharmaceutical, Food and Beverage Markets.

  • Built to cGMP Standards
  • Painted Steel or Stainless Steel Construction
  • Economical Value
  • Quick & Easy Change Over

STANDARD FEATURES

  • Painted Steel or Stainless Steel onstruction
  • Single, indexing product loader and 2-Sided Sealer
  • Integrated Heat Shrink Tunnel
  • Quick product size changeover
  • Machine on casters for ease of movement
  • Light, compact design
  • Rate: Dependent upon bottle matrix

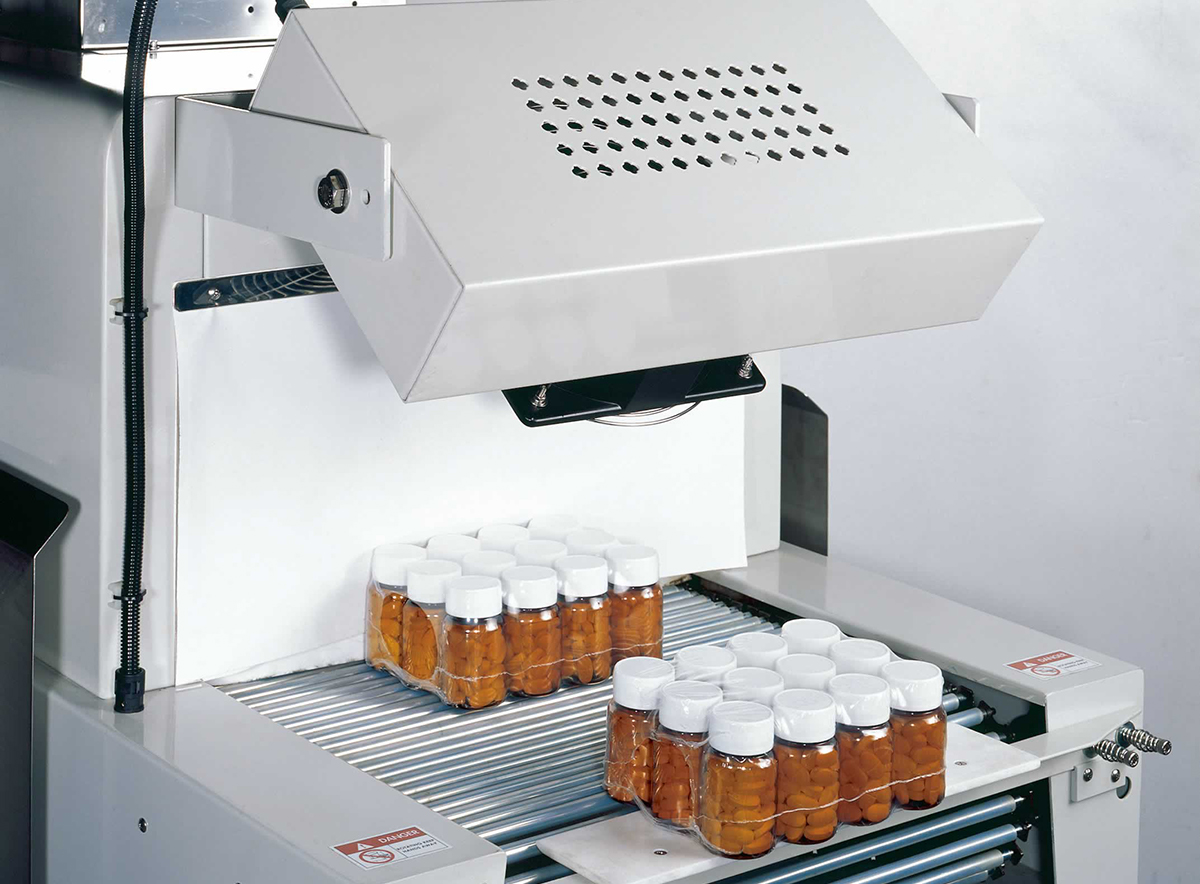

CVC 1661 / CVC 1651 Heat Shrink Tunnel (optional)
CVC 1661 / CVC 1651 Heat Shrink Tunnel (optional)
outfeed
outfeed

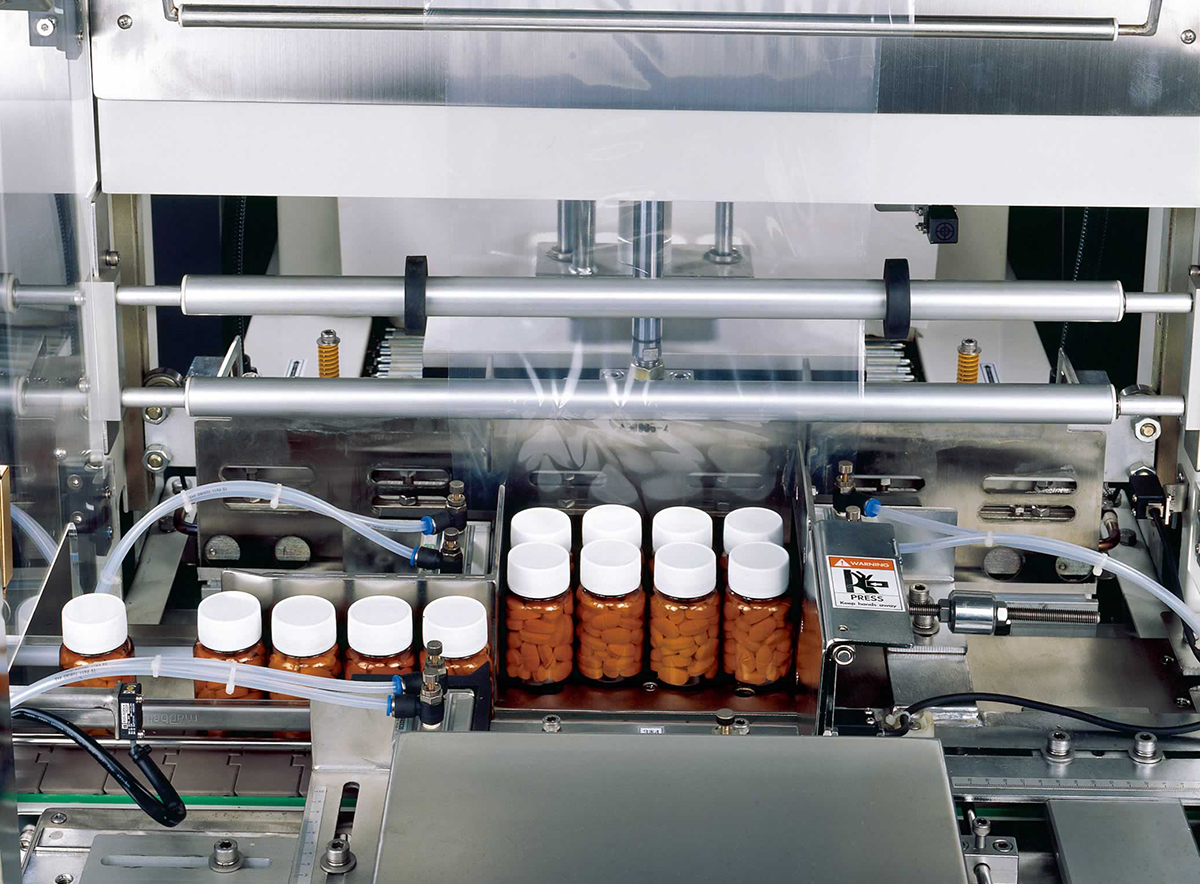

btl arranger
btl arranger

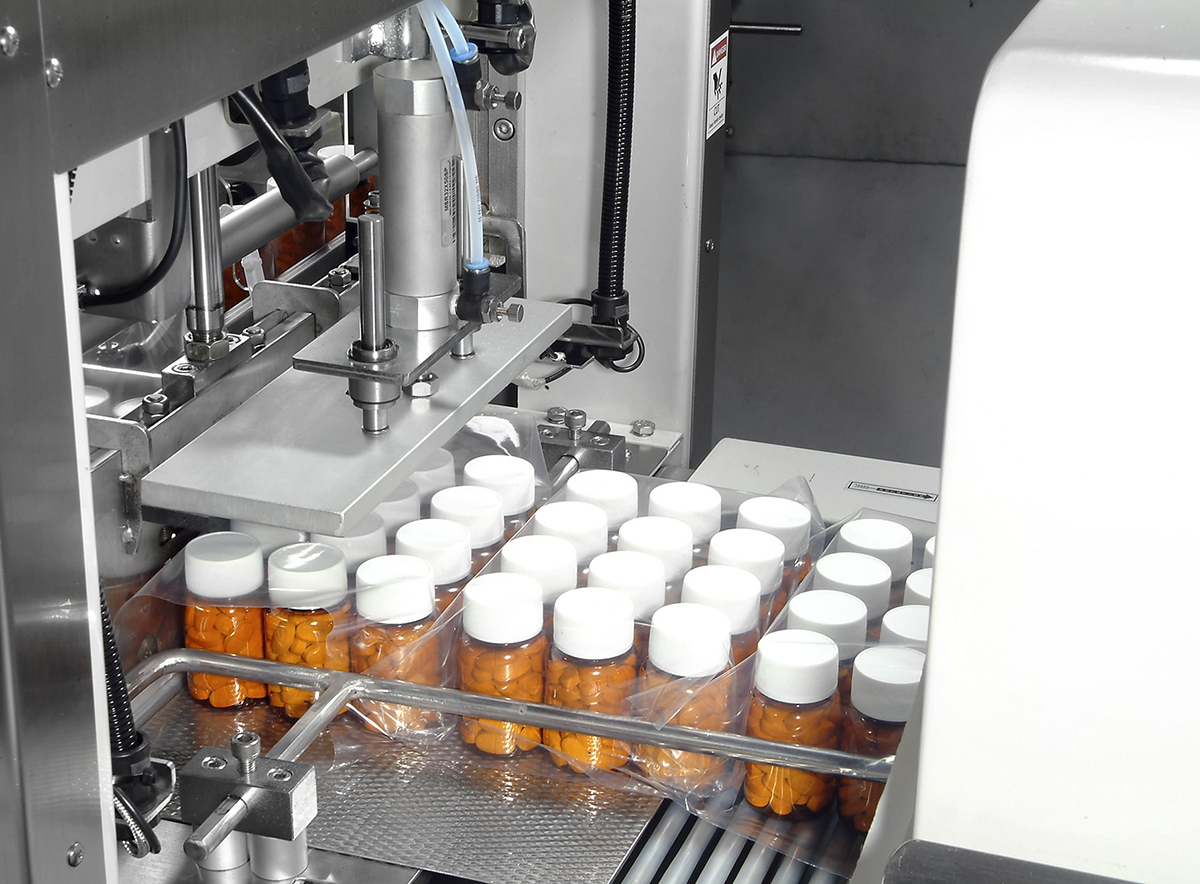

film wrapping
film wrapping
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Product Change Part
  • Variable Speed Drive for In-feed conveyor
  • 1.0M Outlet Gravity Roller Conveyor, SUS 304 Stainless



MACHINE LAYOUTS:


The dimensions shown are for standard machine. The conveyor can be extended: the length may vary based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.


Technical Specifications CVC 1661 Technical Specifications
Power source 220V, 50/60 Hz, 3 Phase
Power Consumption 50-75 AMP
Air Volume 280L (Plant air must be dry and clean)
Air Pressure Minimum 87 psi (ISO 8573-1)
Speed Up to 100 Bottles per Minute(BPM)
Single-Bundle Loader Max width: 16” (410mm)
Max length: 14” (355mm)
Max height: 8 ¾" (222mm)
Two-Bundle Loader Max width: 11 ½” (292mm)
Max length: 9 ¾" (247mm)
Max height: 8 ¾" (222mm)
Film Roll Specs

Single-Bundle Loader
Max roll width: 20 ½” (520mm)

Two-Bundle Loader
Max roll width: 11” (279mm)
Max roll outer diameter: 11 ½” (292mm)
