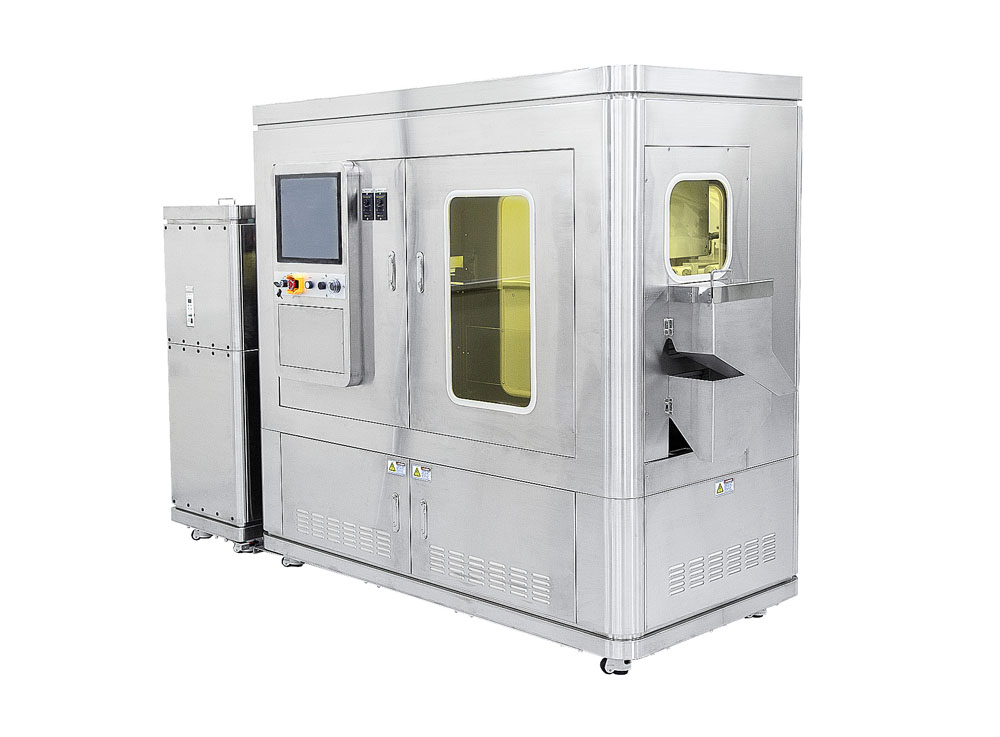

Capsule Inspection Machine

VIM-100

STANDARD FEATURES

  • No need changeable tools (or Jig) according to the capsule shape & size
  • High efficiency lighting plate installed
  • Algorithm method scanning
  • 360˚ capsule self rotating & analyzing
VIM-100
VIM-100
VIM-100
VIM-100

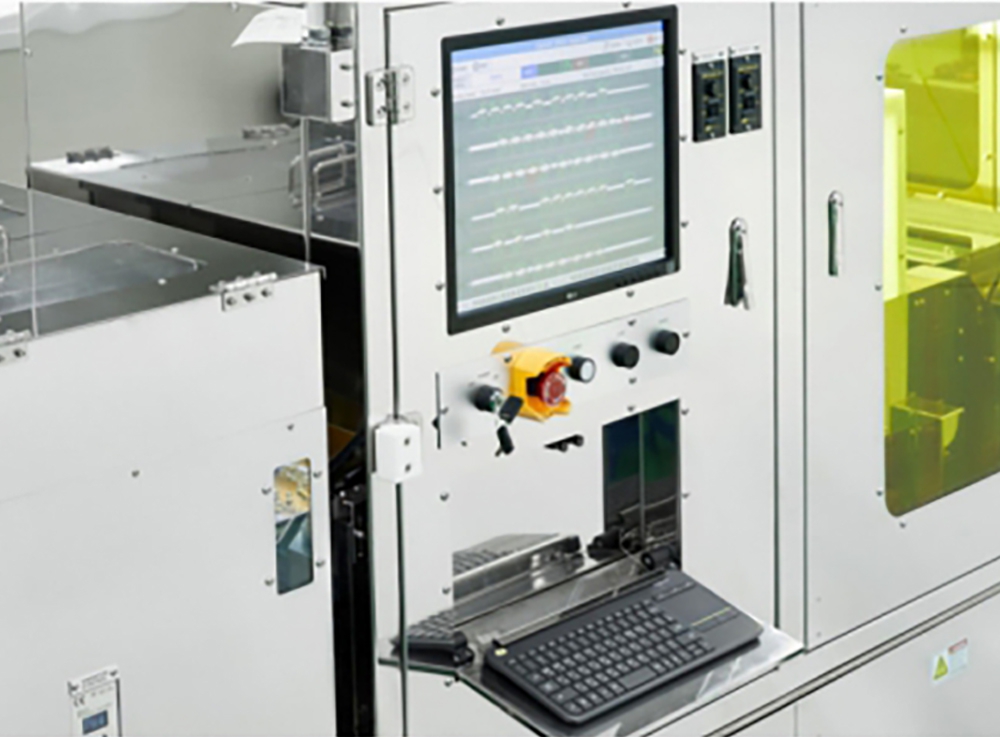

Operation part
Operation part

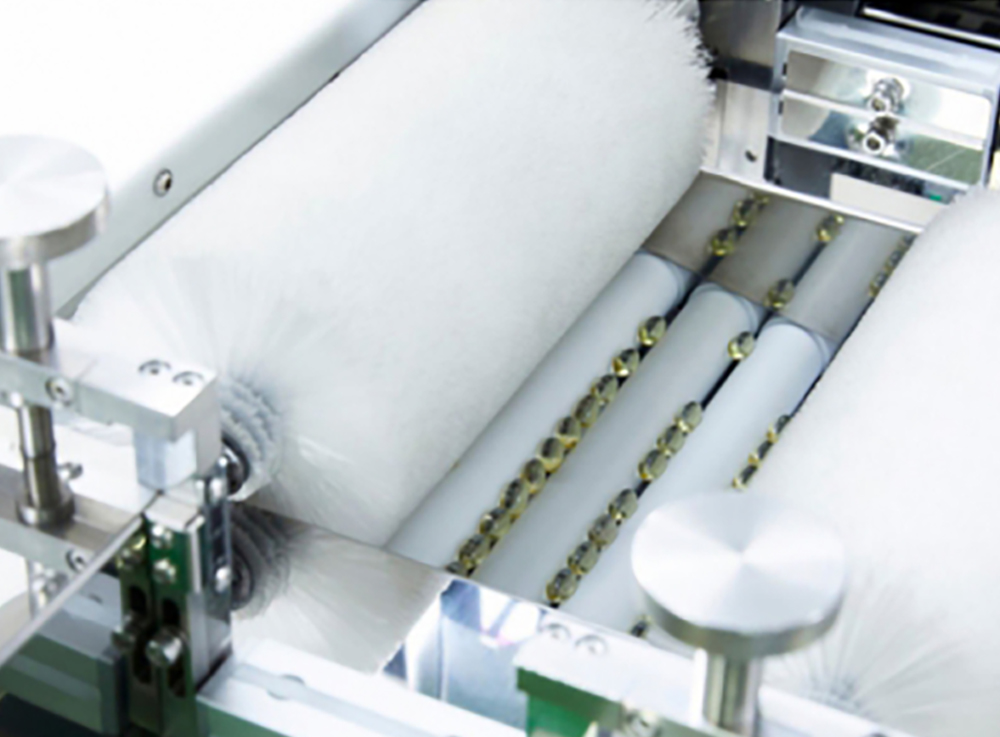

Roller conveyor
Roller conveyor

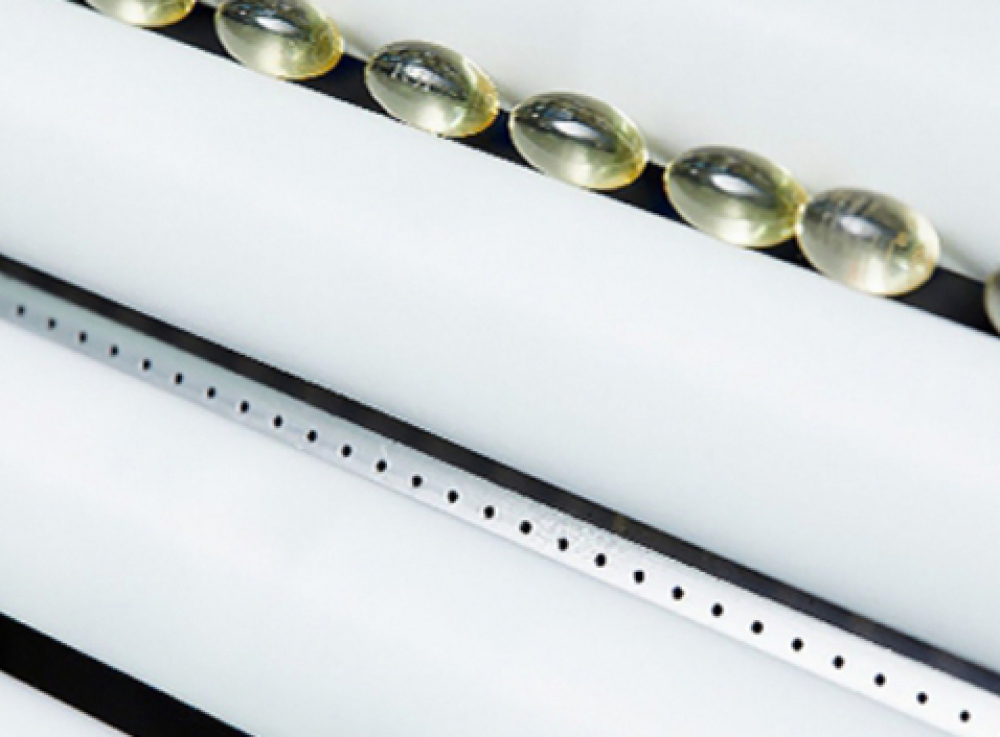

Capsule blowing air holes (2mm gap)
Capsule blowing air holes (2mm gap)
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

Technical Specifications VIM-100 Technical Specifications
Capacity Up to 240,000 Capsule/Hr
Oblong #20 -> 120,000 k/Hr
Oval #10 -> 240,000 Capsule/Hr
Features • 360° capsule self rotating & analyzing
• Total 12 times scanning inspection per capsule by algorithm method
• Easy defect model registration
• Enable the utmost sorting ability in applying “Cross Distance Calculating Algorithm” (1.0mm3 cubical resolution power)
• With applying the symmetry volume calculation algorithm, realized the highest precise sorting ability
(Especially effectiveness for capsule size and deforming sorting ability)
Dimension 2,591(L) x 992(W) x 2,234(H) mm
Weight Approx. 900 KG
Power Consumption 1.5 kW
