Servo Softgel Machine

880SR

STANDARD FEATURES

  • Animal Softgel for High Output
  • Providing an additional Ethernet port and address mapping service to meet customer’s SCADA communication system
  • Easy to change the filling volume on the touch screen (EFA)
  • Auto Gel Thickness control system included (AGT)
  • Linear motor type medicine pump drive

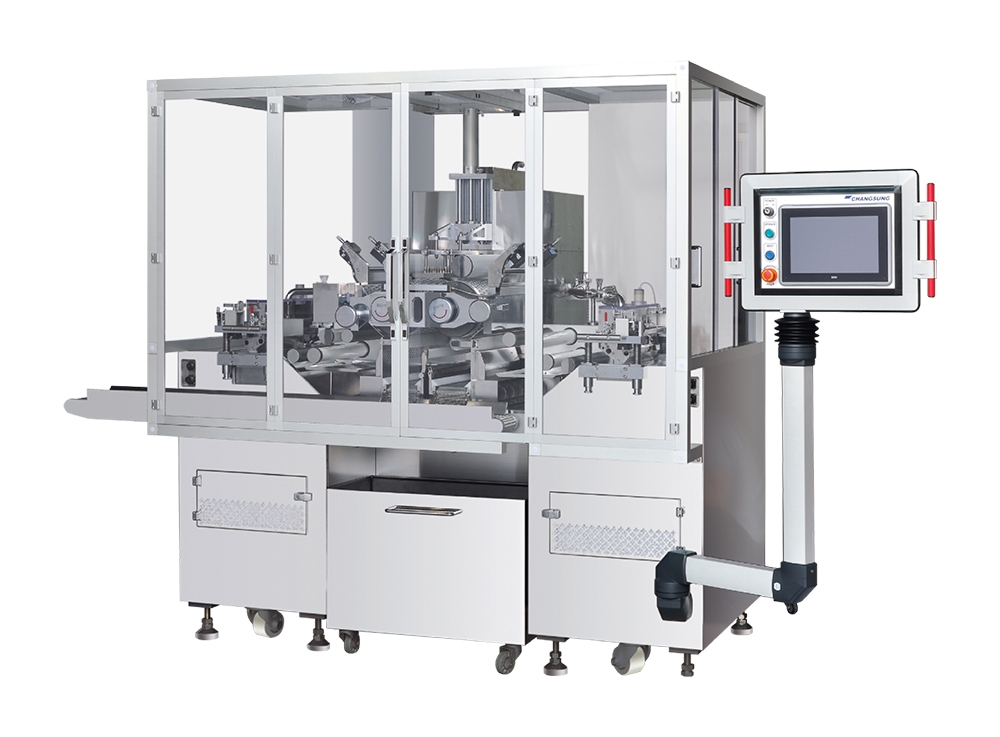

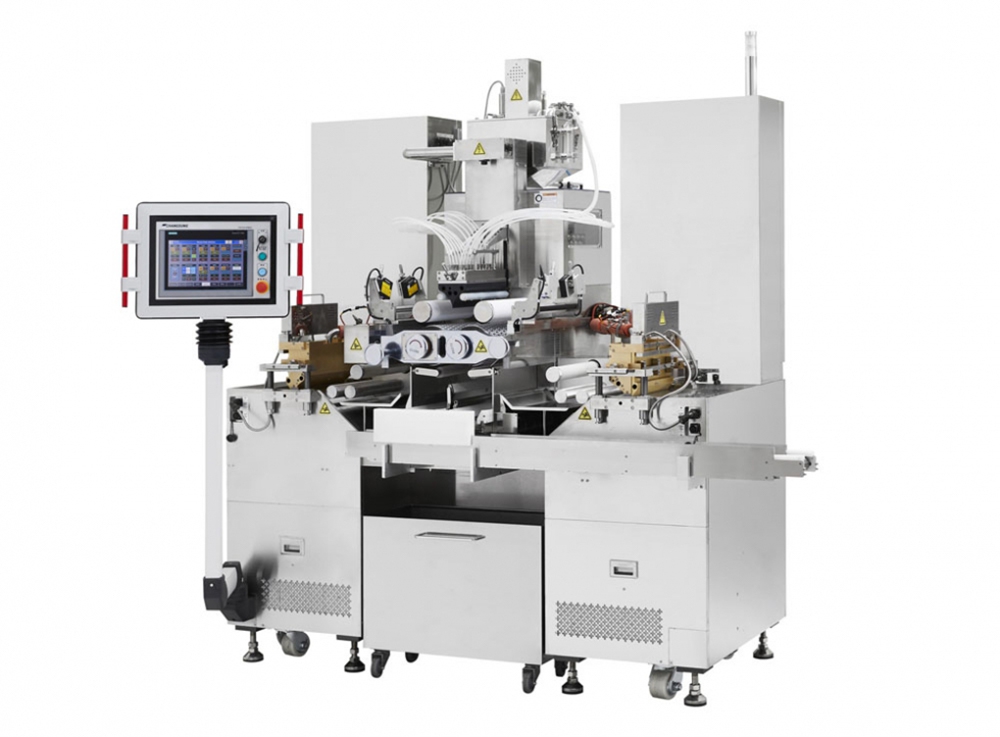

880SR
880SR
880SR
880SR

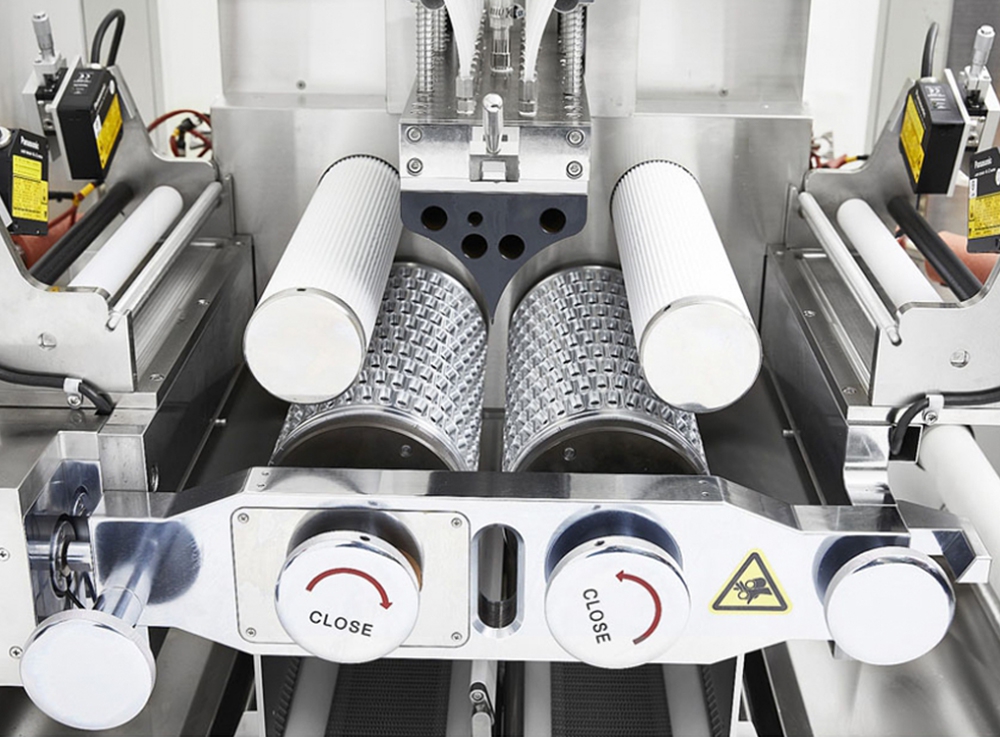

Die Roll Housing
Die Roll Housing

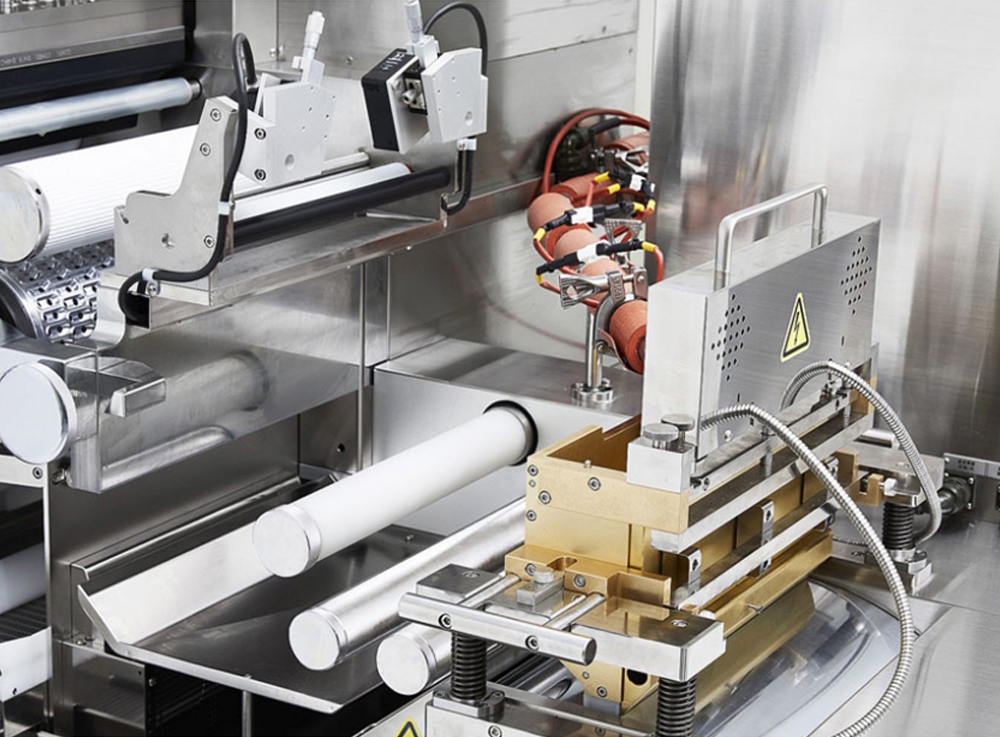

Spreader Box
Spreader Box

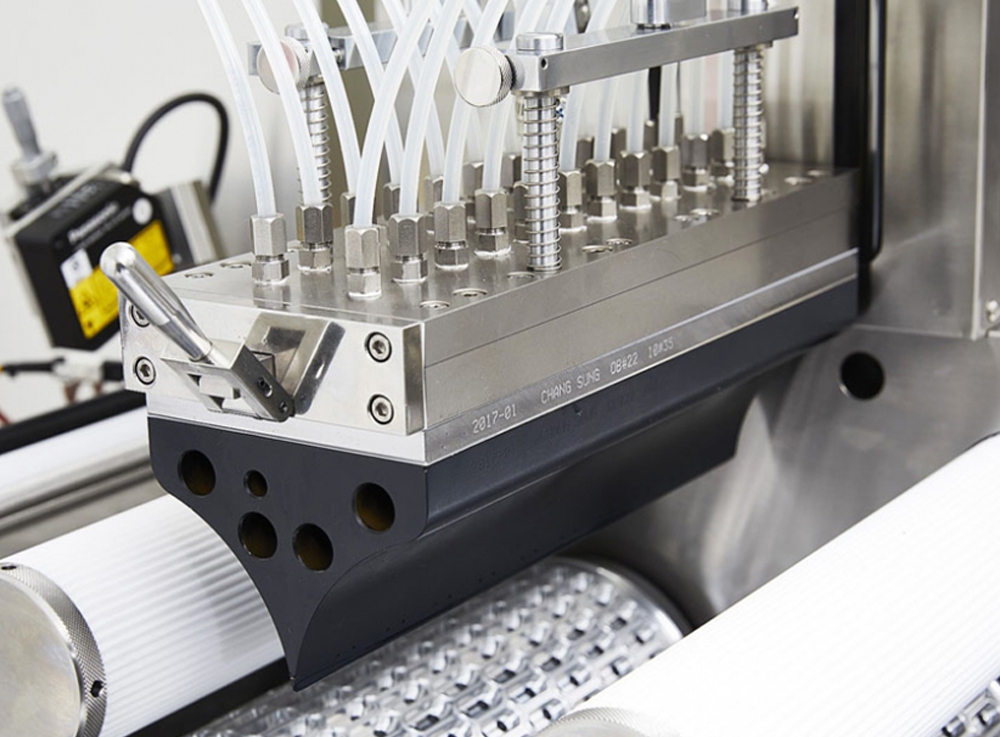

Wedge
Wedge

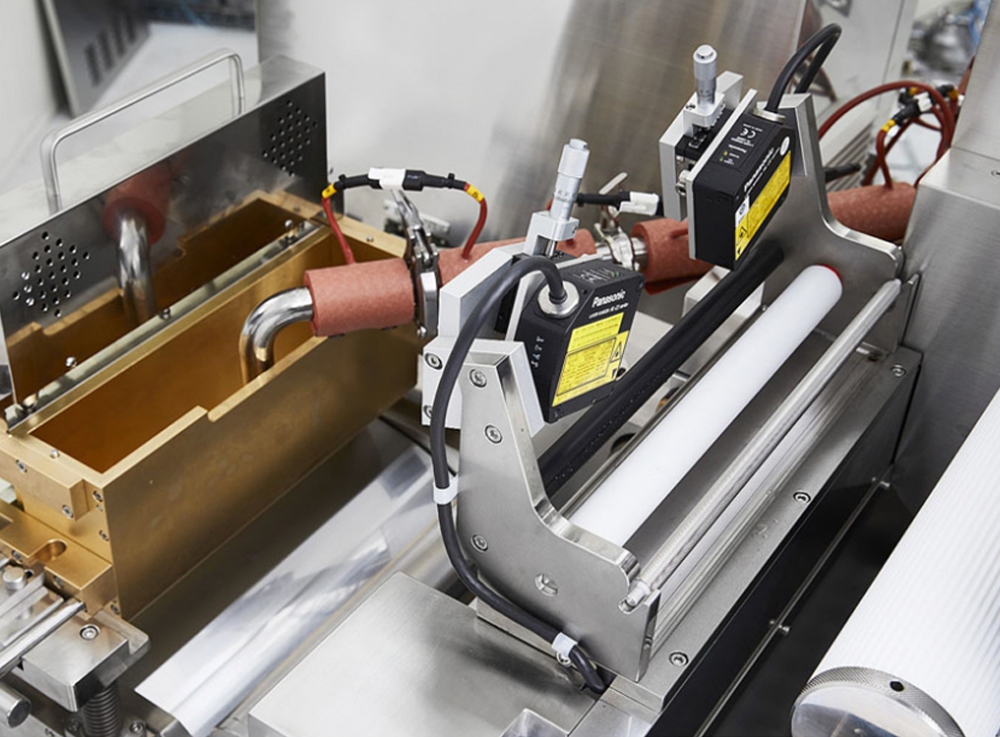

AGT
AGT

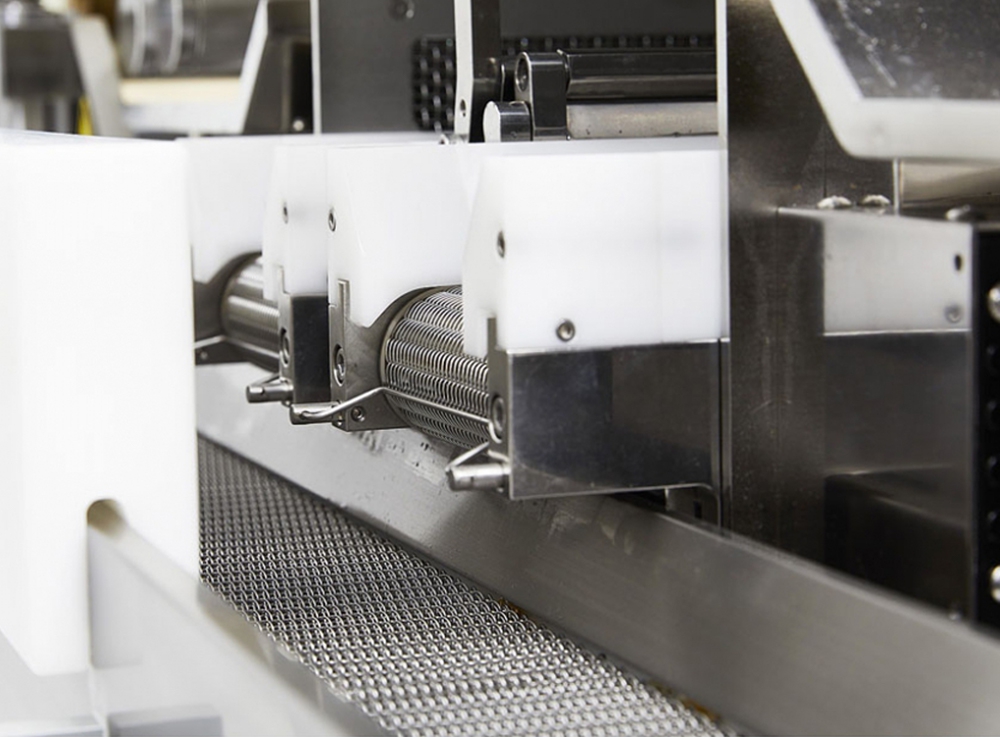

Conveyor
Conveyor

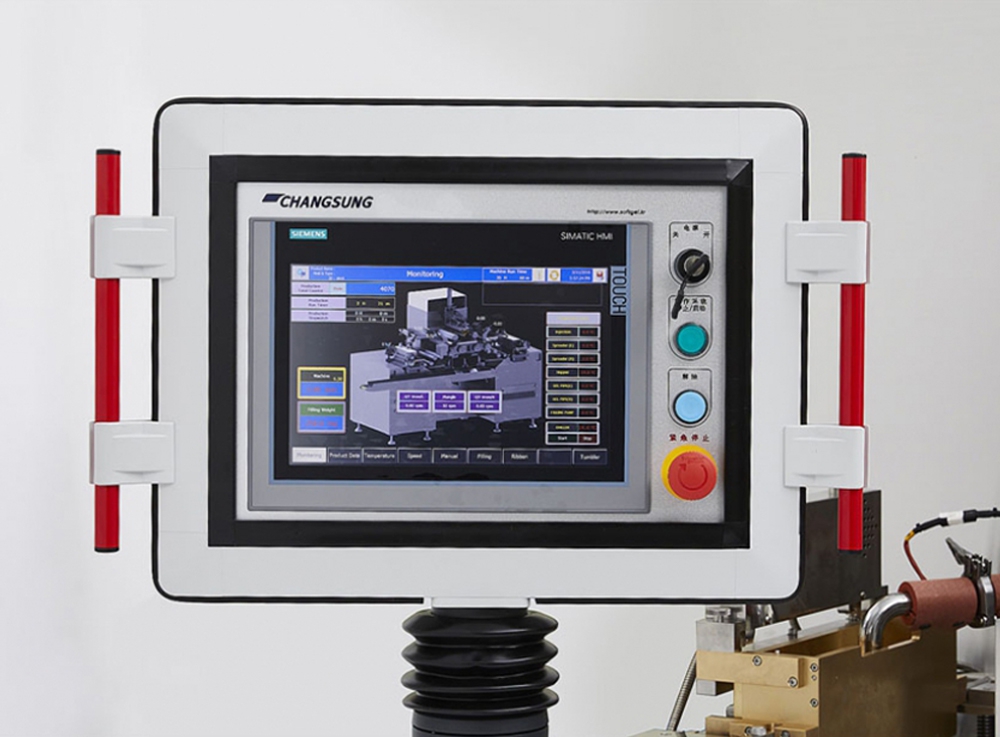

HMI
HMI
Previous Next Play Pause
880SR 880SR Die Roll Housing Spreader Box Wedge AGT Conveyor HMI

TECHNICAL SPECIFICATIONS



MACHINE LAYOUTS:



Technical Specifications 880SR Technical Specifications
Dimension 2,409(L) x 1,338(W) x 2,362(H) mm
Weight 2,200 KG
Electric Power AC 220, 380, 440 V / 50, 60Hz / 3 Ph
Power Consumption 28 kW
Die Roll Speed 6 rpm
Compressed Air 5 kg f/cm²
Die Roll Size Ø150 x 320 mm
Productivity AVG. 110,000 caps/hr at 6 rpm (Ob#20)

CATALOG DOWNLOAD

Ask about this product
