CVC Technologies, Inc.Leading pharma packaging.

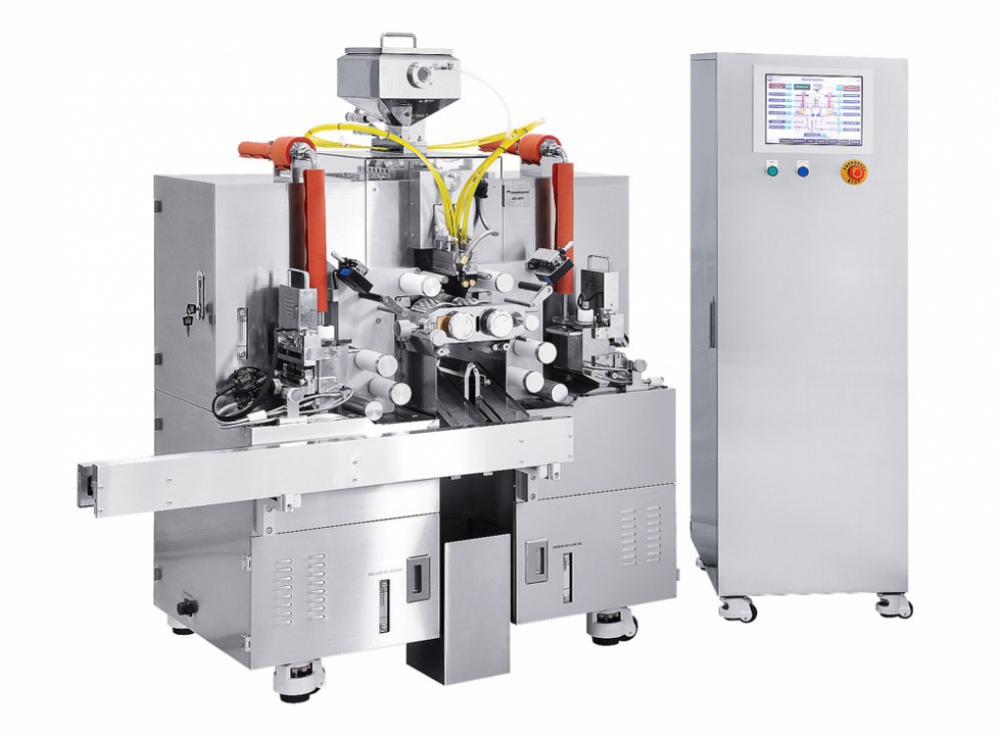

Servo Softgel R&D machine

SRD

STANDARD FEATURES

  • Anodizing aluminum and stainless steel
  • Driven by servo motors
  • Easy to change the filling volume on the touch screen (EFA)
  • Easy attachable capsule striper
  • Complying with GMP
  • Complying with TIR securely
SRD
SRD
Medicine Filling Pump
Medicine Filling Pump

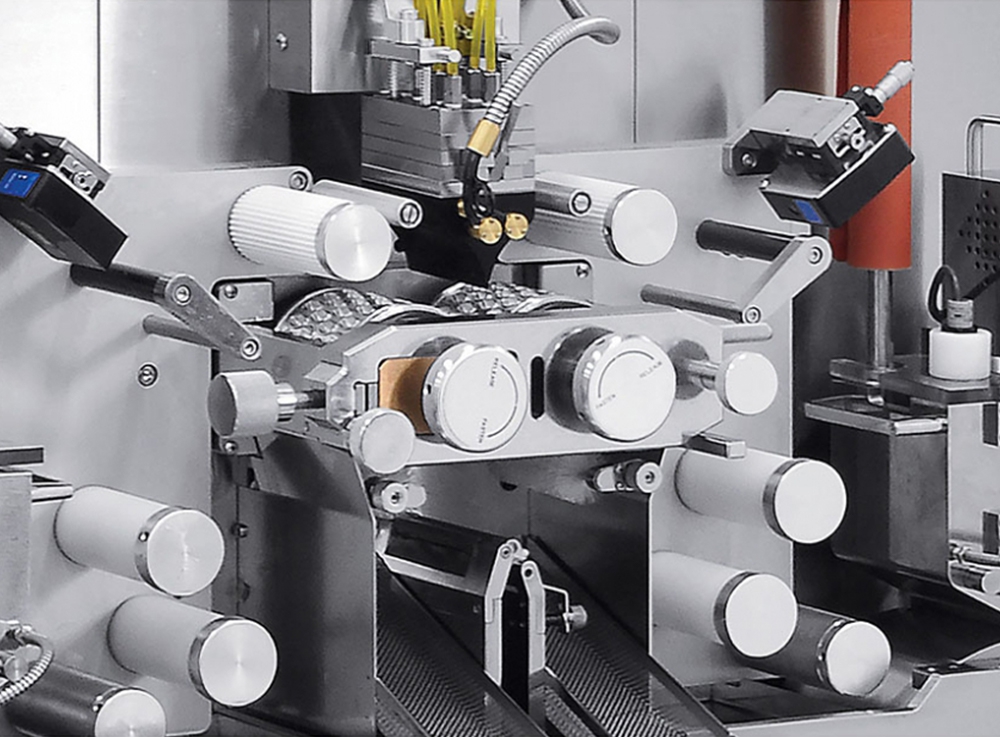

Die Roll Housing
Die Roll Housing
Previous Next Play Pause

TECHNICAL SPECIFICATIONS



MACHINE LAYOUTS:



Technical Specifications SRD Technical Specifications
Dimension 1,738(L) X 905(W) X 1,725(H) mm
Weight 670 KG
Electric Power AC 220, 380, 440 V / 50,60 Hz / 3 Ph
Power Consumption 18 kW
Die Roll Speed 3 rpm
Compressed Air 5 kg f/cm²
Die Roll Size Ø100 x 100 mm
Productivity AVG. 8,000 caps/hr at 3 rpm (Ob#20)

CATALOG DOWNLOAD

  • SRD
    pdf | 692.38 KB | 202 hits
Ask about this product
