Induction Capsealer

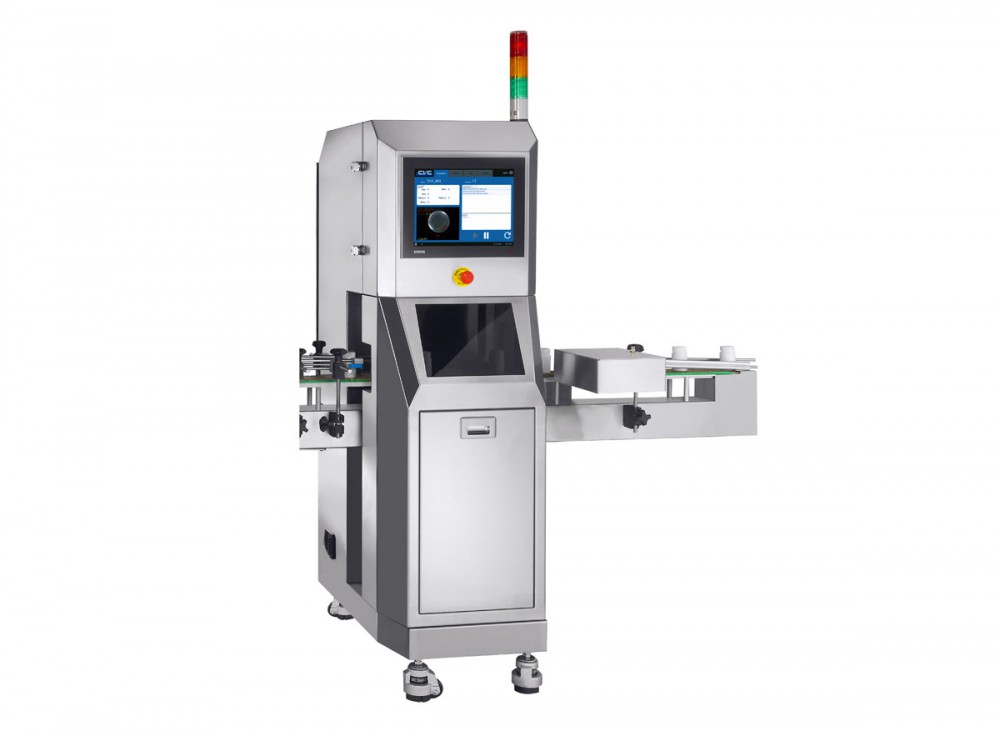

CVC FIS20-M / L

CVC FIS20 Series Thermal image inspection system, adopting the latest thermal imaging technology along with a thermal image camera, is able to perform multi-point temperature checks and converts the data into thermal images for aluminum foil sealing inspection.



CVC FIS20 can easily integrate with an induction capsealing machine to inspect aluminum foil seals immediately after sealing, ensuring product quality. It comes in two models, mid-wave (CVC FIS20-M) and long-wave (CVC FIS20-L), to suit different types of bottle caps.

STANDARD FEATURES

  • Stainless steel construction for durability
  • Utilizes advanced thermal imaging technology
  • Equipped with a large floor-standing bottle conveyor system

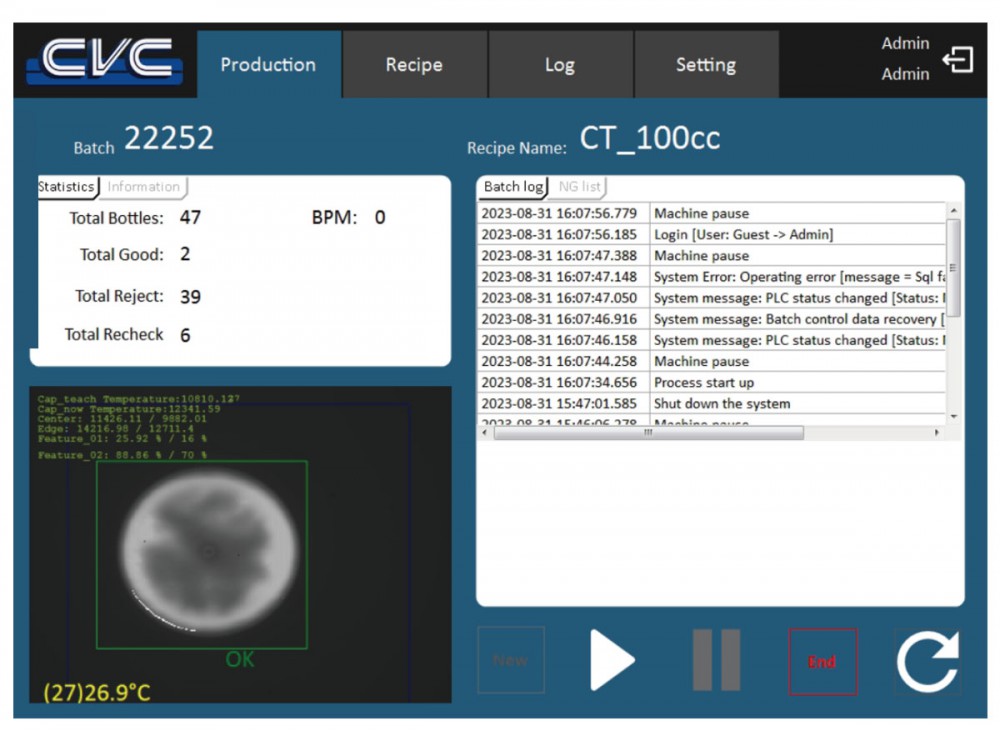

  • 15" PC touch screen with the ability to save multiple teaching modes.
  • Siemens PLC control system
  • Inspection capacity: up to 200 bottles per minute(with optional bottle screw set)
  • Compatible with various plastic bottle cap types: mid-wave and long-wave models for CT caps, mid-wave model for CRC caps
  • Applicable bottle sizes: maximum bottle diameter120mm, maximum bottle height 200mm
  • Comply to US FDA 21CFR Part 11, audit trail and production reports available
  • Easily integrated into various bottle packaging lines
  • Inspection capability:
    - bent or damaged foil, missing foil, damaged edge or edges, upside-down liner
    - loose or crooked caps
    - overheating or under-heating
    - fallen containers
FIS20-M / L
FIS20-M / L

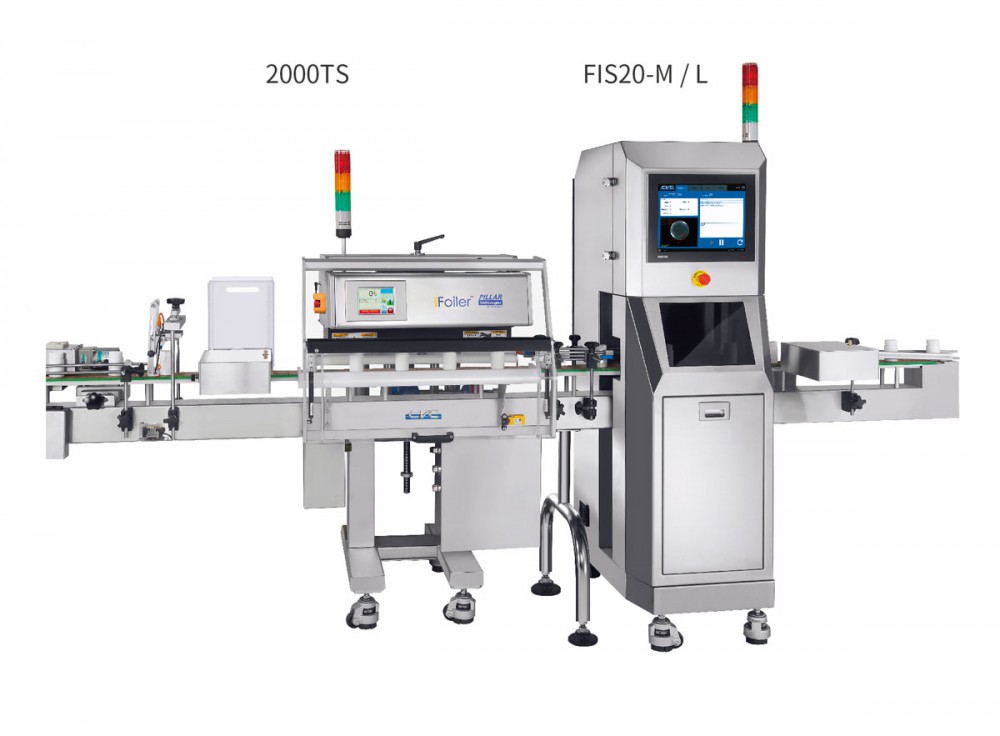

2000TS + FIS20-M / L
2000TS + FIS20-M / L
Pass
Pass
Fail
Fail

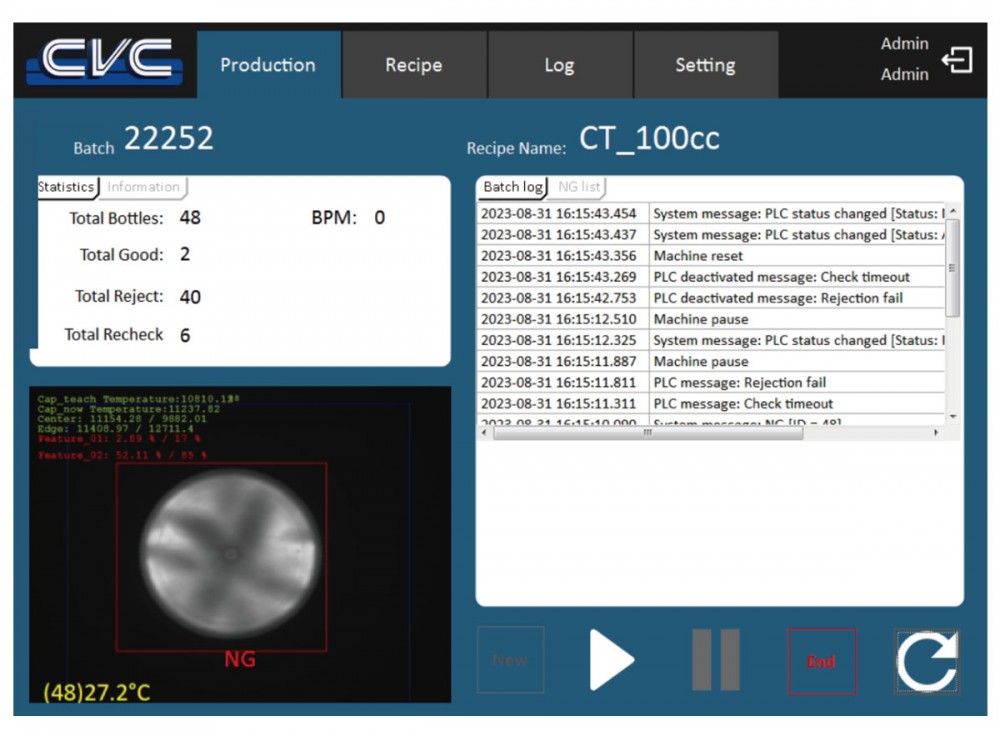

thermal image
thermal image
Previous Next Play Pause

TECHNICAL SPECIFICATIONS



AVAILABLE OPTIONS:

  • 3-Color Stack Tower Light
  • Bottle Feed Screw
  • 21CFR Part 11 Compliant
  • OPC UA Server
  • Bottle Reject Verification



MACHINE LAYOUTS:

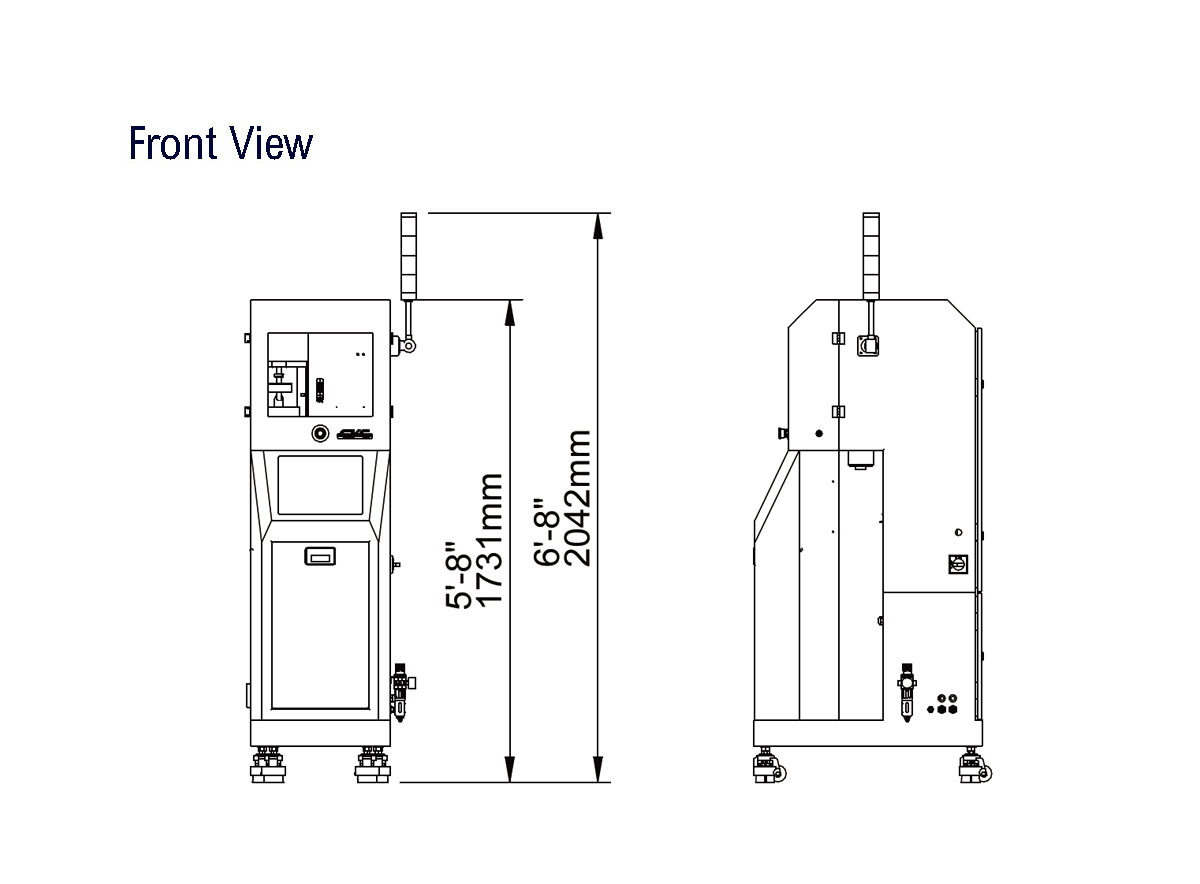

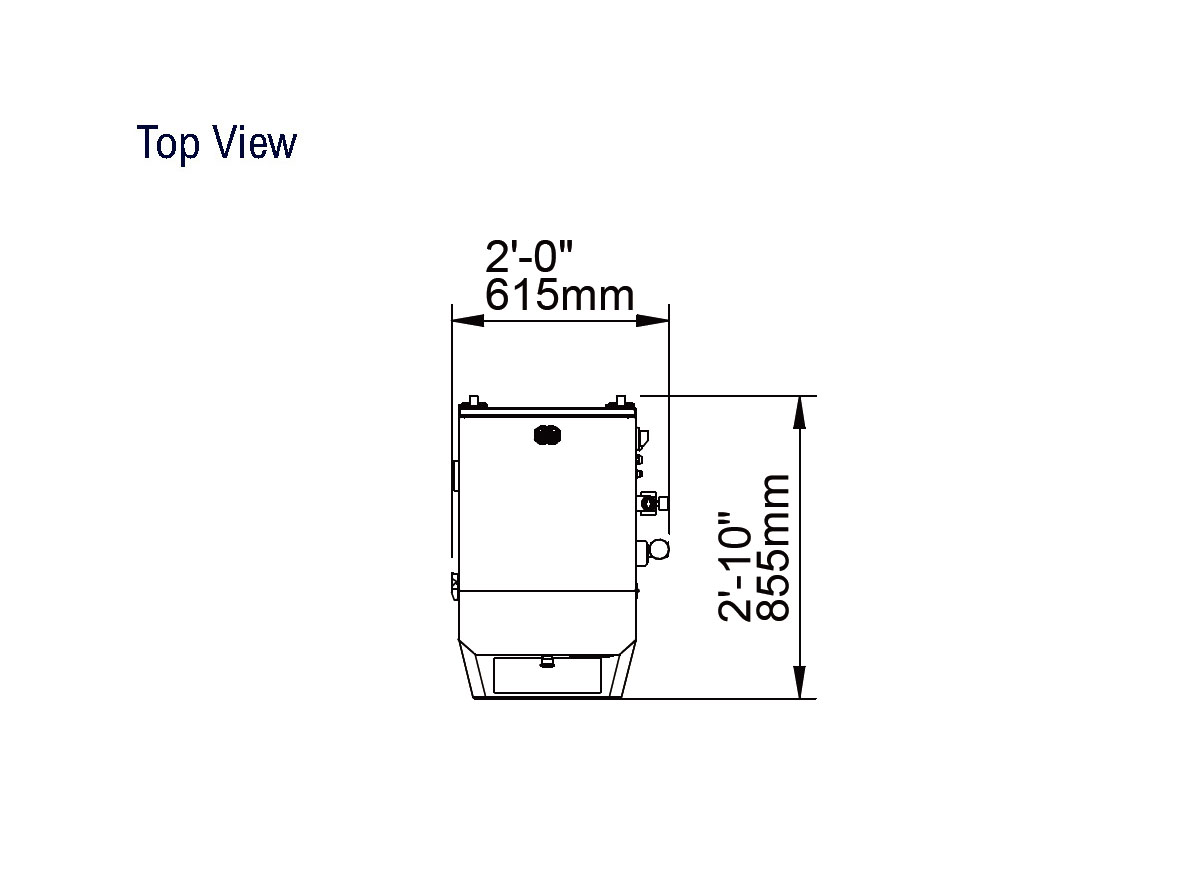

The dimensions shown are for standard machine. The conveyor can be extended: the length may vary based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.

Technical Specifications CVC FIS20-M / L Technical Specifications
Productivity M: up to 200BPM / L: up to 120BPM(when optional bottle feed screw is selected)
Applicable Size Maximum bottle height: 200 mm
Maximum bottle width: 120 mm
Maximum cap diameter: 60 mm
Power source 220V, 50/60Hz, single phase
Power Consumption 2.3 KW
Air Pressure 6kg/cm²
Air Consumption 100 NL/min (3.5 CFM)
Consumption Machine Dimensions 820(mm)x500(mm)x1730(mm)
Other *Process control
-Immediate accept/reject of each bottle: Yes
-Rejection unit(with alarm Gate): Air Punch / cylinder (Controlled by PLC)
-Rejection verification: Optional
-Separator wheel control (front of induction capsealer): Yes (standard)
-Change bottles: M(--)/ L(Cylinder-module)

*System support
-CVC technical support: Yes
-Troubleshooting application: Yes
-Documentation: Operation manual with full validation documentation (Optional)
-Regulatory compliance: 21 CFR part 11 (Optional)
-Support OPC-UA: Optional

*System Hardware

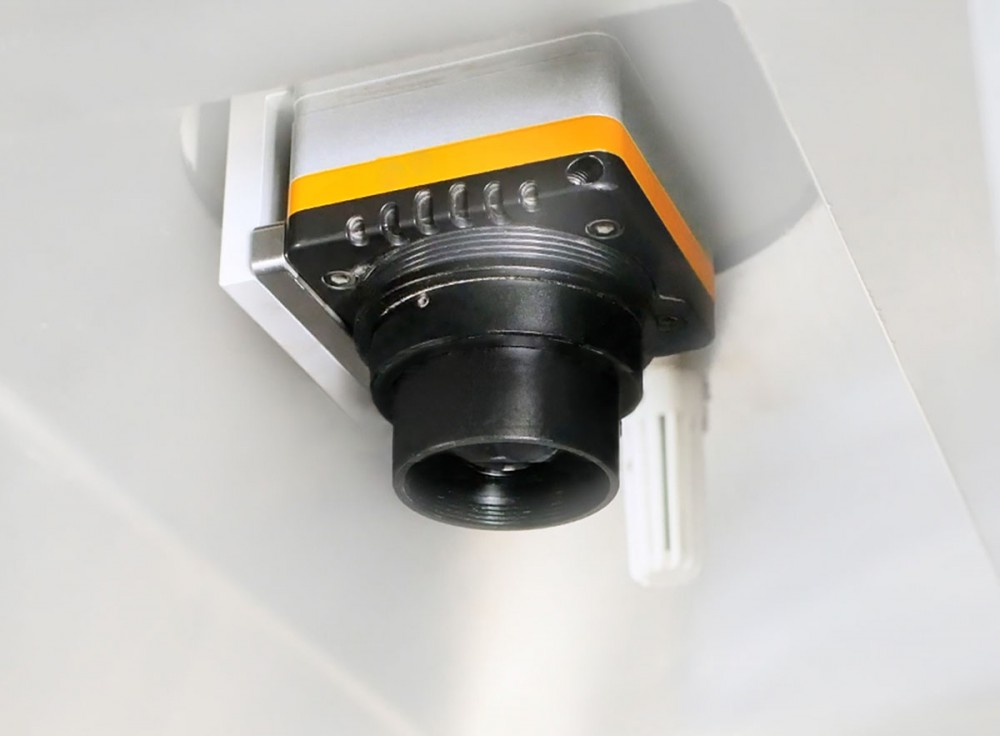

-Camera: IR Camera
-Controller: PC-Panel / PLC
-Structure: Stainless Steel Construction
-Height adjustment: Camera height adjustment (with motor)
-UPS: Optional
