CVC Technologies, Inc.Leading pharma packaging.

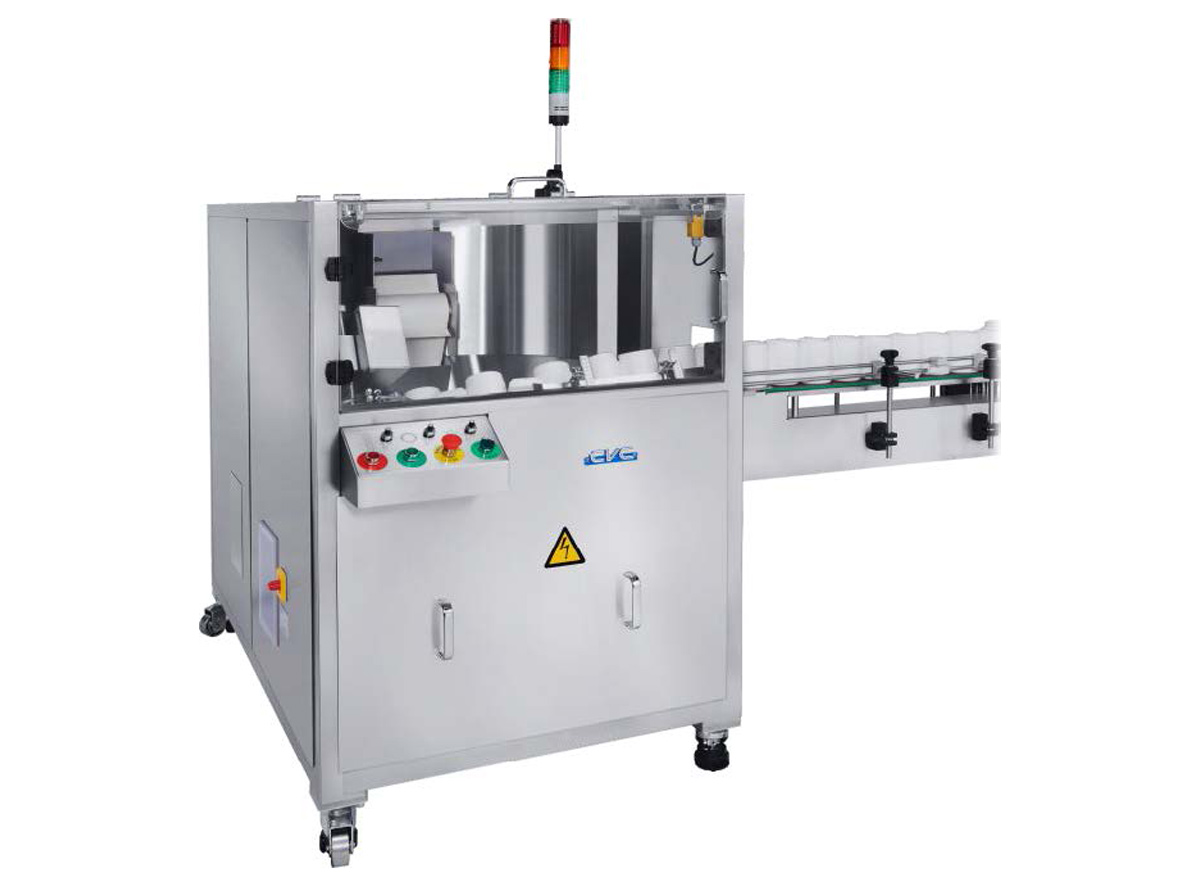

Bottle Unscrambler

CVC 1263E

√ Specially designed to meet the packaging line requirements in pharmaceutical and nutraceutical industries.

√ Compact design with enclosed built-in hopper and starwheel disc sorter for noise elimination and space saving.

√ Control panel features simple operation.

STANDARD FEATURES

  • Type 304 stainless steel bin, frame, enclosure panels.
  • Maximum speed is 80 bottles per minute. (based on 100 cc round bottle size)
  • Stainless steel frame and transparent shield for operator safety and isolation from dust.
  • Bottle orientating assembly is accurate, adjustable and user friendly.
  • Adapting Mitsubishi PLC.
  • Bottles are discharged upright and properly arranged onto existing conveyor.
  • PLC Controlled.
  • Variable speed motors.
  • Locking casters as standard feature.
  • Full cGMP compliance.
CVC 1263E
CVC 1263E

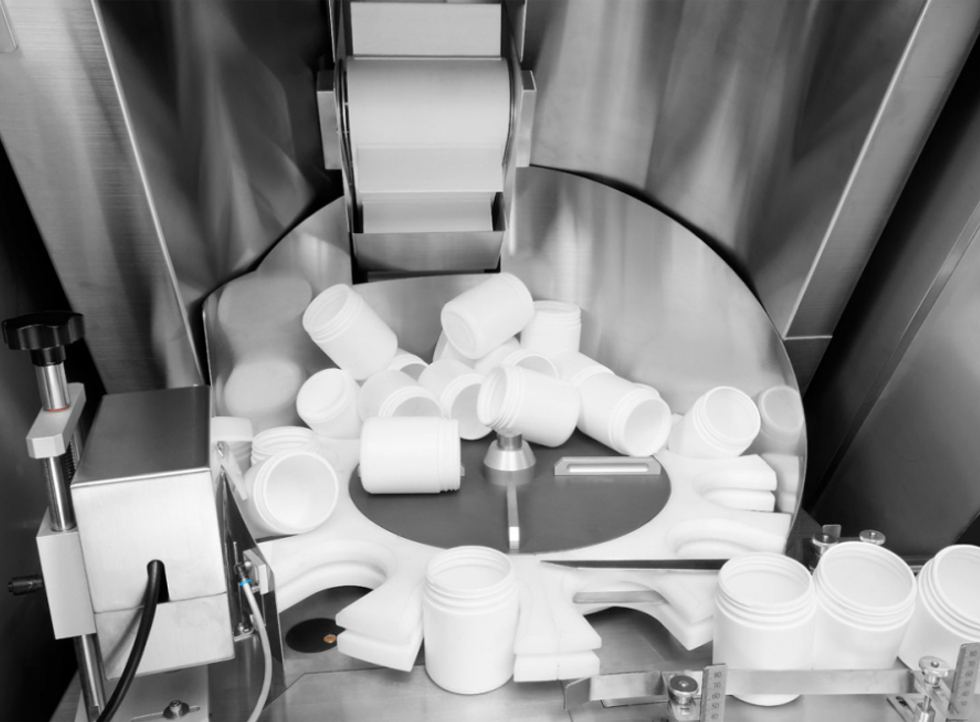

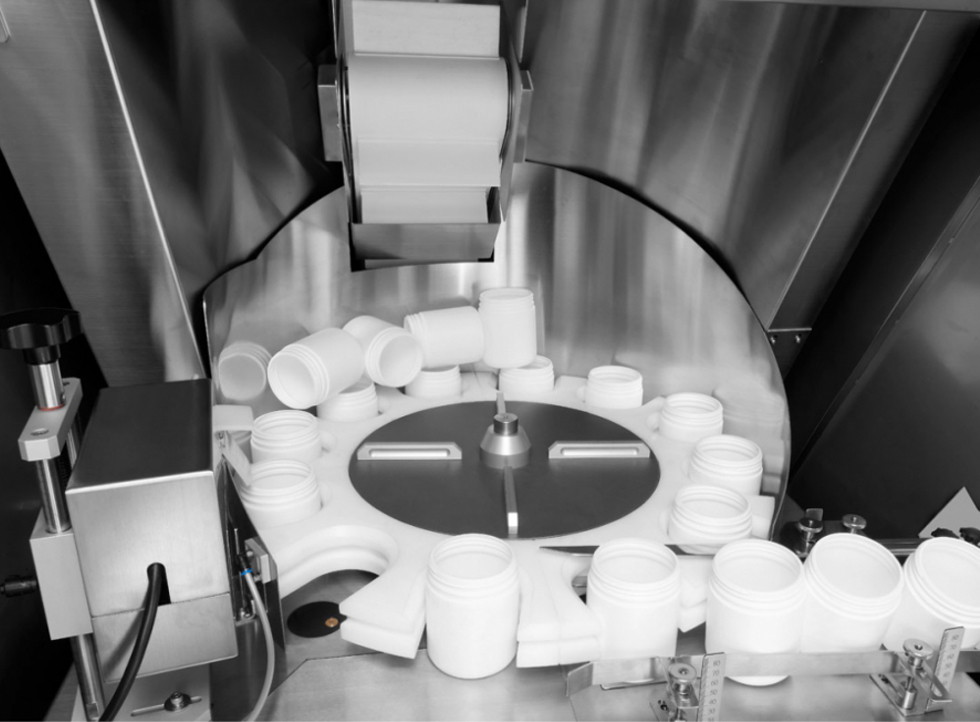

Bottle Sorter: <br> The starwheel type bottle orientating and sorting assembly works precisely and is easy to be adjusted.
Bottle Sorter:
The starwheel type bottle orientating and sorting assembly works precisely and is easy to be adjusted.

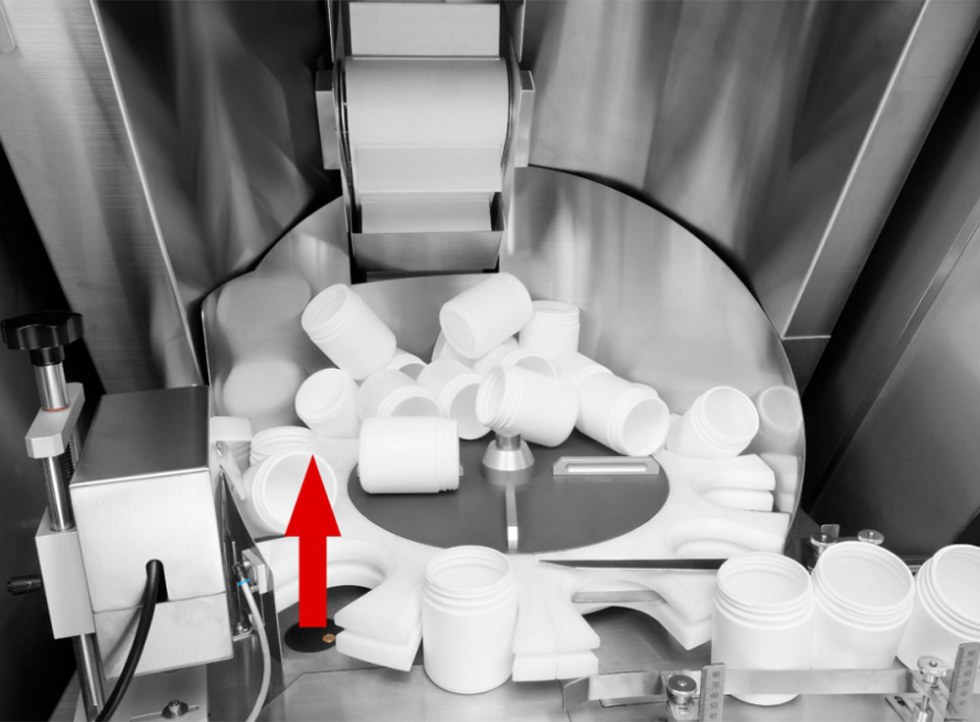

Bottle Orientation:<br> Use a air blowing device to eject the upside down bottle back to the starwheel sorter for further sorting.
Bottle Orientation:
Use a air blowing device to eject the upside down bottle back to the starwheel sorter for further sorting.
CVC 1263E
CVC 1263E
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Bottles are discharged upright and properly arranged onto existing conveyor.
  • PLC Controlled.
  • Variable speed motors.
  • Locking casters as standard feature.
  • Full cGMP compliance.



MACHINE LAYOUTS:






The dimensions shown are for standard machine. The conveyor can be extended: the length may var y based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.


Technical Specifications CVC 1263E Technical Specifications
Productivity Up to 60-80 BPM (base on 40-100 cc round bottle, subject to trial confirmation)
Applicable Size Bottle Dia.: Ø30-80 mm (1 1⁄4" to 3 1⁄4")
Bottle Height: 50-150 mm (2" to 6")
Min. Container Dia./ Height: 1: 1.5
Hopper Capacity 227 L (8 Cuft)
Power source 220 V, 50/60 HZ, 1 PH
Power Consumption 450 VA (2.1 A)
Air Pressure 6 bar (87 psi)
Air Consumption 60 NL/min (2.1 CFM)
Machine Dimensions ( L x W x H ) 955 x 1,680 x 1,970 mm (approx)
(3’-2” x 5’-7” x 6’-6”)
Machine Weight 300 kg (662 lbs)
Noise Level ≤ 78 dB
