Desiccant Canister Inserter

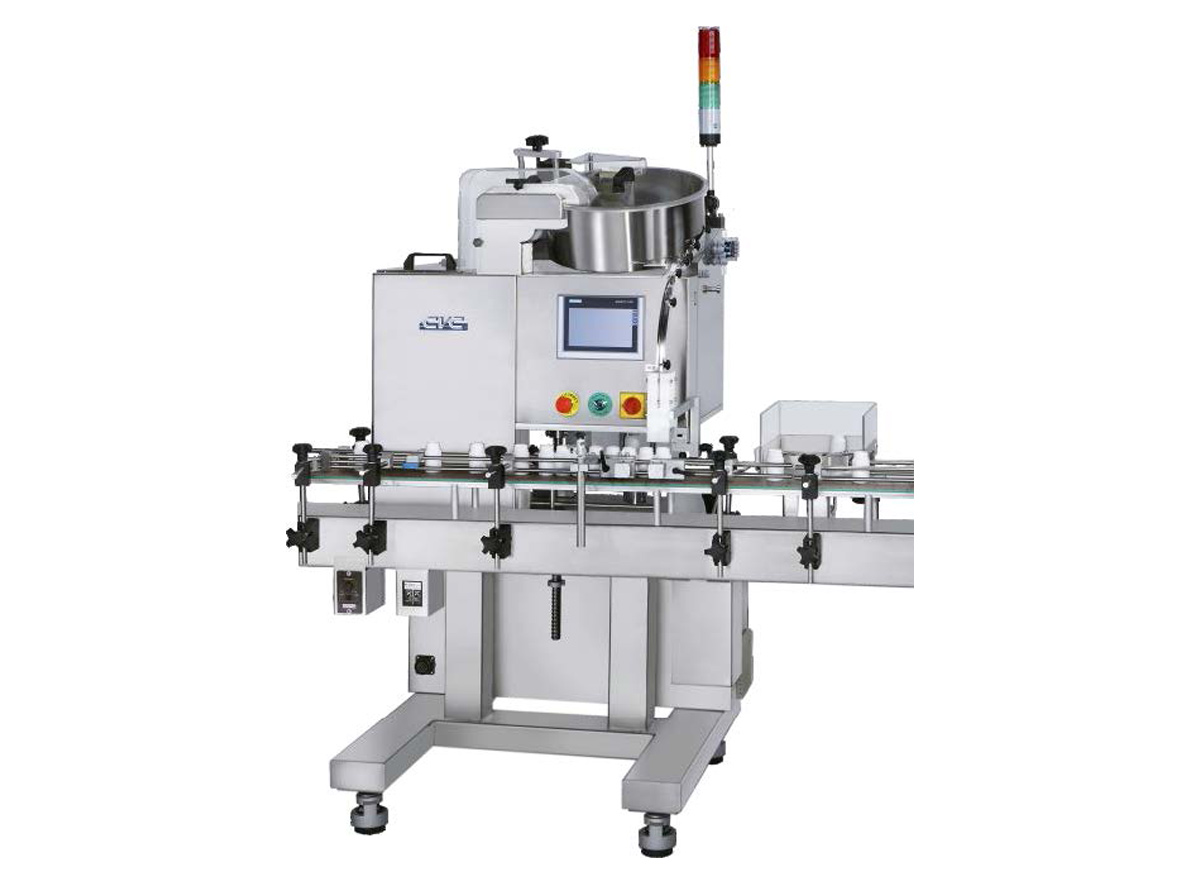

CVC 1112H

The CVC 1112H Canister Desiccant Inserter sorts and dispenses desiccant barrels into containers at speeds of up to 200 bottles per minute. The system is designed to comply with cGMP requirements and is controlled by Siemens PLC and ser vo motor.

STANDARD FEATURES

  • Servo Motor & Siemens PLC Controlled
  • No-bottle no-fill
  • Safety guards with automatic machine stop
  • Pneumatic gating for positive stop
  • cGMP compliance
CVC 1112H
CVC 1112H

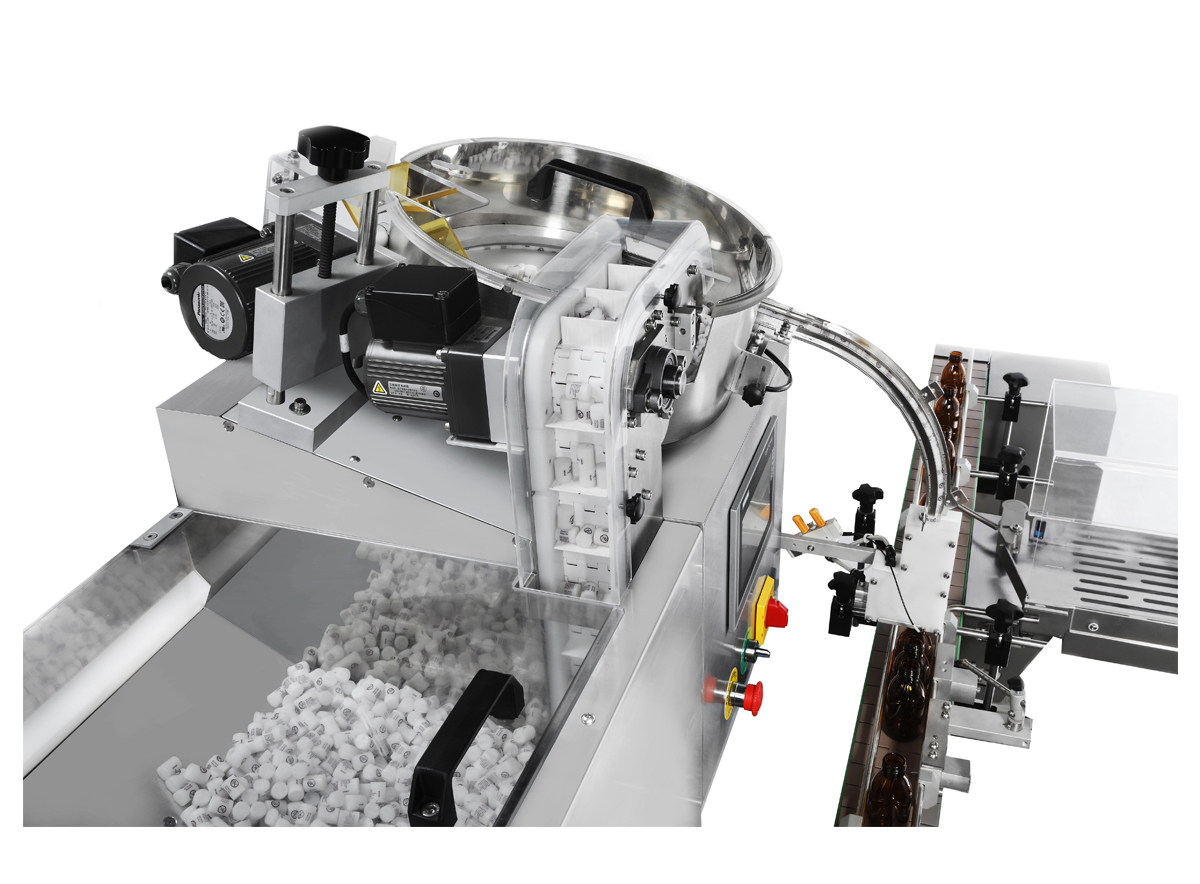

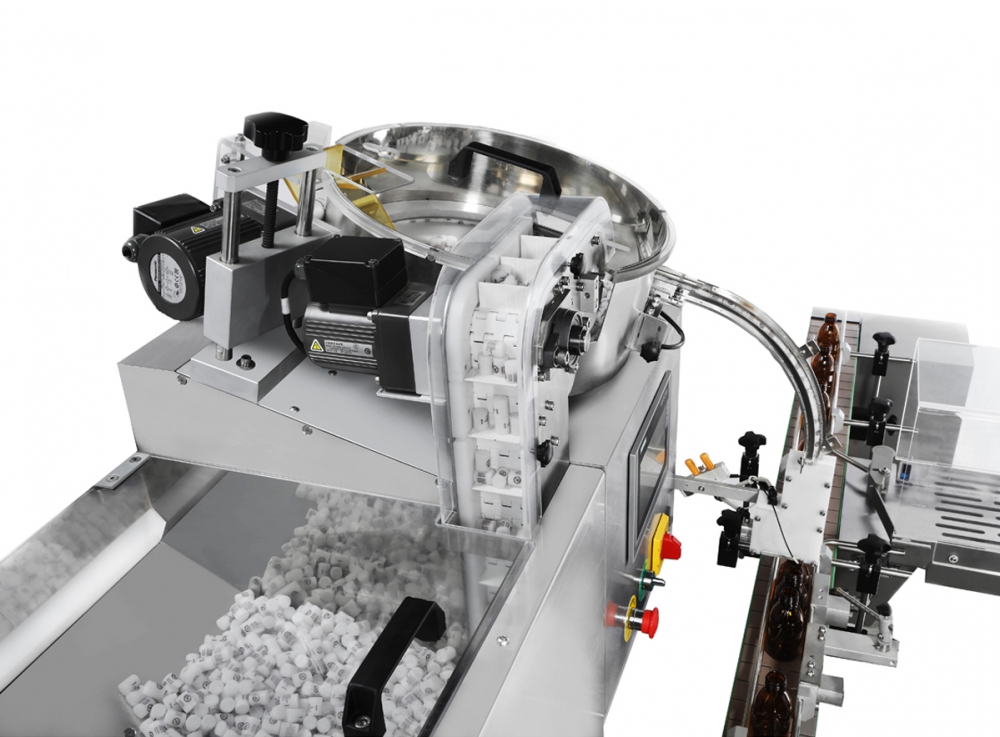

INTEGRATED PRODUCT HOPPER
INTEGRATED PRODUCT HOPPER
CVC 1112H
CVC 1112H
Previous Next Play Pause
CVC 1112H INTEGRATED PRODUCT HOPPER CVC 1112H

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

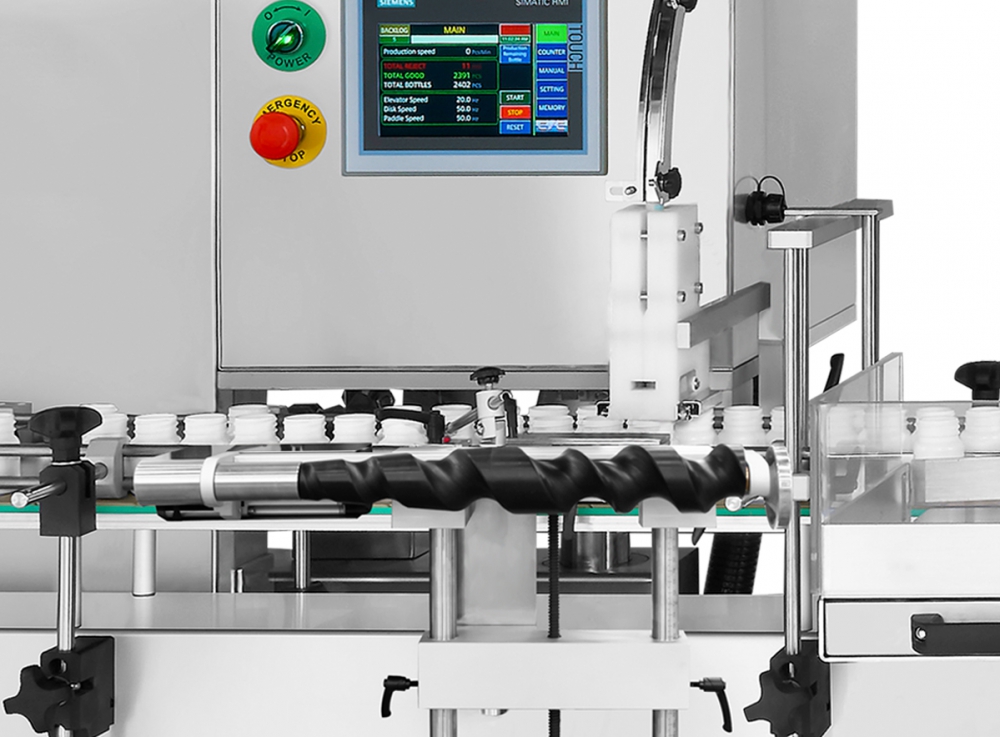

  • Infeed feed screw system for high speed applications
  • Tower lamp
  • 21 CFR Part 11 License

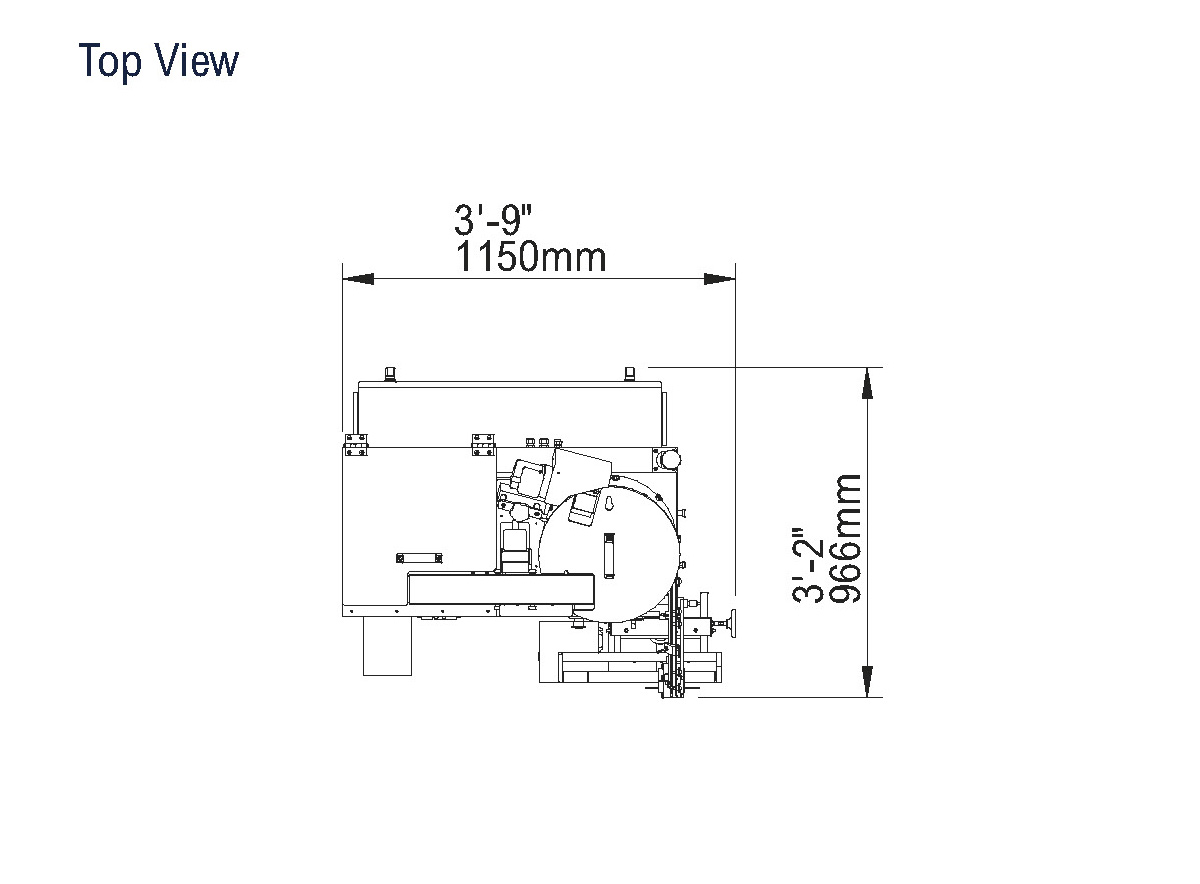

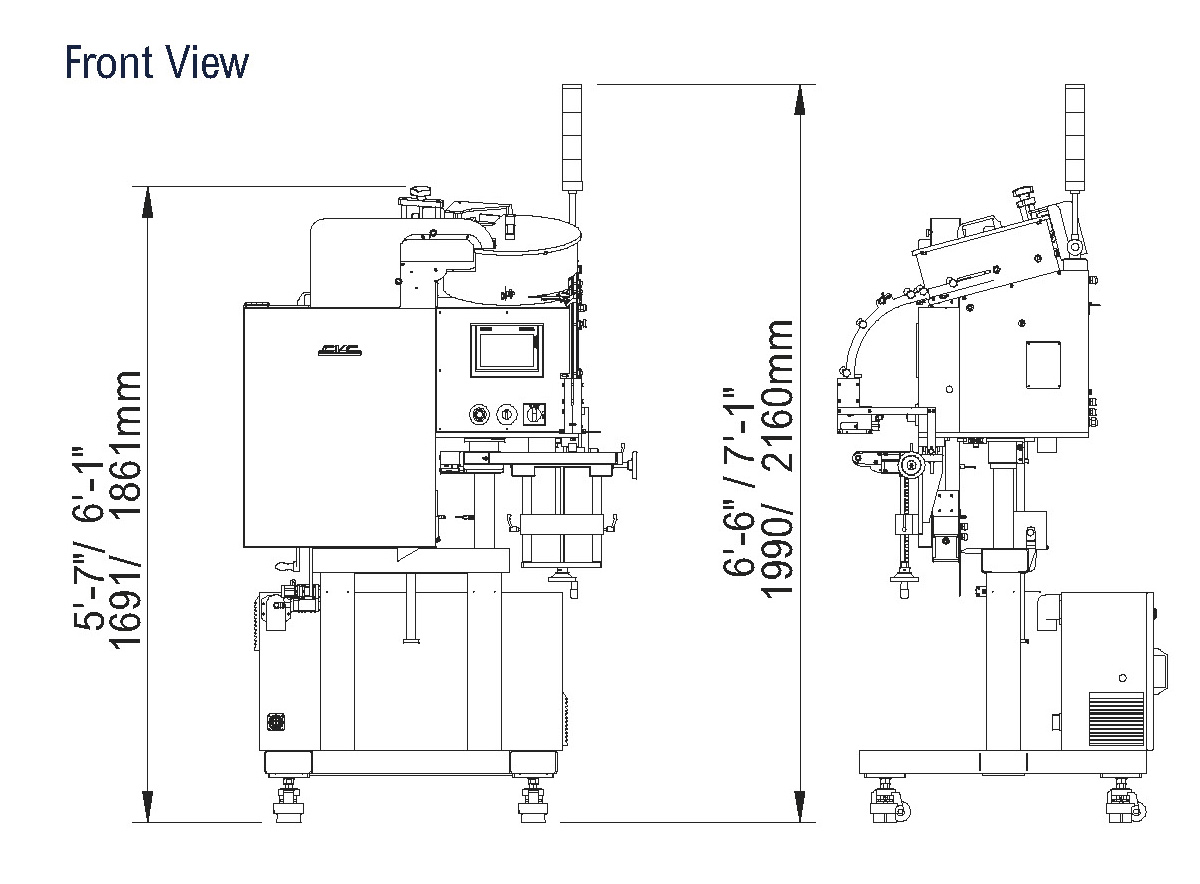

MACHINE LAYOUTS:

The dimensions shown are for standard machine. The conveyor can be extended: the length may vary based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year par ts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.

1.25 : 1.00, Canister diameter cannot equal canister height.

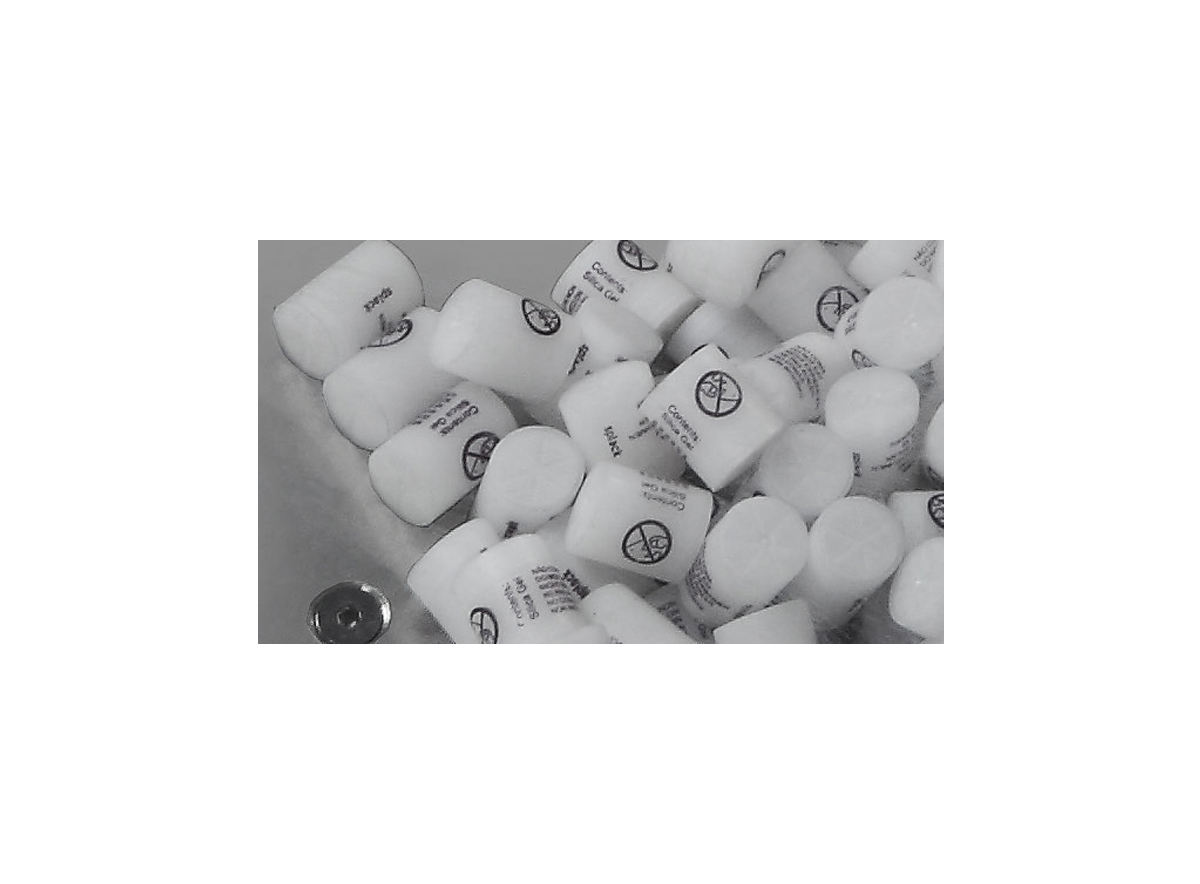

Note: Rate is based on 1 gram canister with one insertion per bottle and canister size is 14mm Diam. X 18mm Ht.

Technical Specifications CVC 1112H Technical Specifications
Type U4
Productivity Up to 210-240 BPM
(subject to trial confirmation)
Applicable Size Product: (Canister Desiccant: 1-3 g)
Dia.: Ø14-20 mm (1⁄2" to 3⁄4")
Height: 18-25mm (5⁄8" to 1”)
Bottle:
Dia.: Ø30-124 mm (1 1⁄4” to 4 3⁄4”)
I.D. of Mouth: Ø20-100 mm (3⁄4" to 3 3⁄4")
Height: 50-220 mm (2” to 8 1⁄2”)
Min. Container Dia./ Height: 1: 1.25
Hopper Capacity 50 L (1.8 Cuft)
Power source 220 V, 50/60 HZ, 1 PH
Power Consumption Pneumatic Gating: 450 VA (2.1 A)
Bottle Feed Screw: 1,002 VA (4.6 A)
Air Pressure 6 bar (87 psi)
Air Consumption Pneumatic Gating: 361 NL/min (12.8 CFM)
Bottle Feed Screw: 570 NL/min (20 CFM)
Machine Dimensions ( L x W x H ) 1,150 x 970 x 2,160 mm
(3’-9” x 3’-3” x 7’-1”)
Machine Weight 220 kg (485 lbs)
Noise Level ≤ 83 dB
