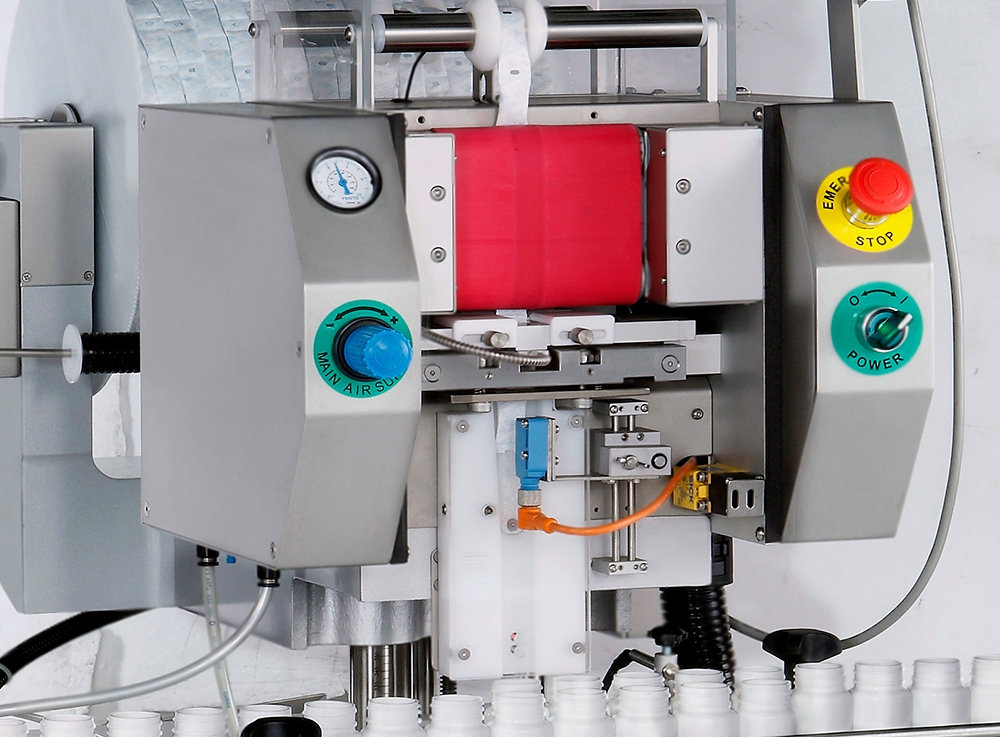

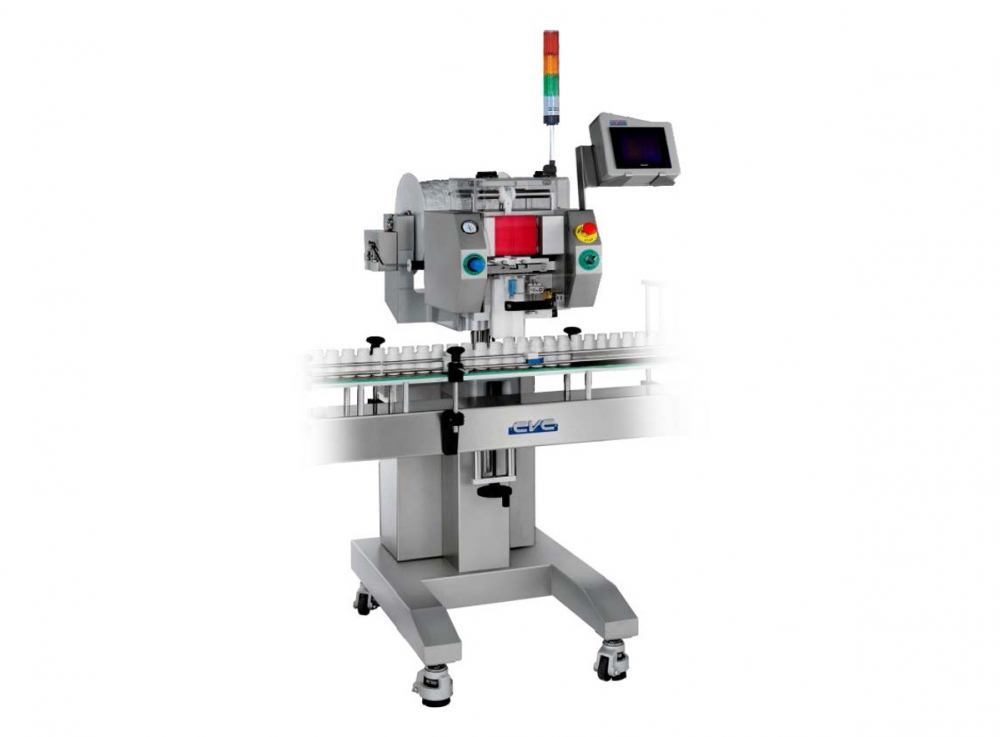

The CVC 1103 Pouch Desiccant Inserter is a compact highly cost-effective means to insert desiccants or oxygen absorbents into a variety of bottles and containers. The system cuts packets from a roll and inserts them into containers at speeds of up to 120 bottles per minute. The CVC 1103 is Siemens PLC controlled with ser vo motor. Options include tower lamp and feed screw for higher speed applications.
STANDARD FEATURES
- Servo Motor & Siemens PLC Controlled
- Display touchscreen instruction for machine operation is available in two languages
- Capability of recipe storage
- Storage and printing of Production Report and Alarm Report
- Safety guards with automatic machine stop when opened
- Servo driven
- Bottle backlog sensor
- Special heavy duty blades for longer durability
- Flexible adjustments can meet different product bottle heights
- Bottle backlog sensor at outfeed
- Type 304 stainless steel bin, frame, enclosure panels
- Type 316L stainless steel air rinse nozzles
- CE or UL/CSA standard PC safety guard
- ISO 9001:2015 certified
TECHNICAL SPECIFICATIONS
AVAILABLE OPTIONS:
- Infeed feed screw system for high speed applications
- Bottle discharging system (air blow type or cylinder type)
- Validation of bottle discharge
- Conveyor
- 3-color stack light
- Bottle format changeover parts
- 21 CFR Part 11 compliance
- OPC UA for data collection
MACHINE LAYOUTS:
The dimensions shown are for standard machine. The conveyor can be extended: the length may vary based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year par ts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.
