Tablet/Capsule Counter and Filler

CVC 1220CS (SERVO-DRIVEN FLAPS)

The CVC 1220CS is our newest Electronic Channel Counter designed for high speed, highly accurate counting of tablets, capsules, and soft gels. The system has been upgraded with ser vo- driven flaps to improve accuracy of pre-count functions.

In addition, the ser vo system adds to longevity of the assembly and reduce the requirement to replace pneumatically driven actuators.

STANDARD FEATURES

  • Single or Double Bottle Discharge

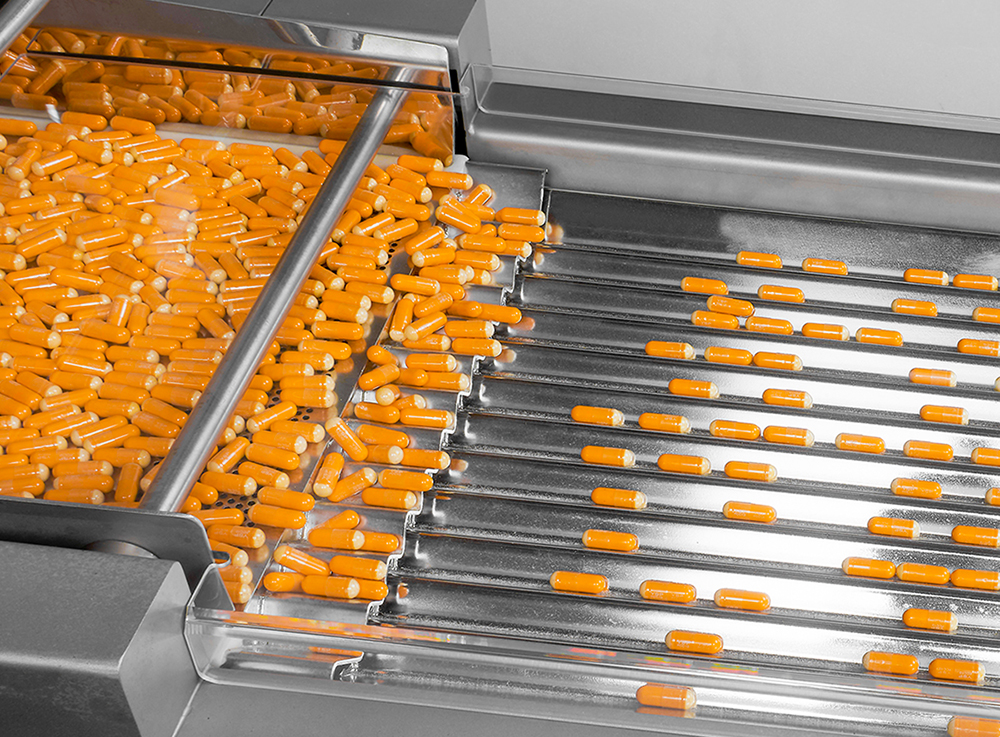

  • 12 V-shaped channels per head (tool less change over)
  • Auto dust compensation and dual dust extraction ports
  • Powered height adjustment and track- full/empty sensors
  • 2.83M-motorized single lane sanitary conveyor (single head)
  • 4.95M-motorized dual lane sanitary conveyor (dual head)
  • Single or Double Bottle Discharge
  • Rejection System
  • Memory capacity for up to 1000 jobs
    (*Requires Touch Screen controller)

FEATURE BENEFITS

  • Independently controlled by ser vo motors
  • Provide precise and absolute control
  • High accuracy positioning and low-noise level
  • Prolong life expectancy of drive unit
  • Reduce the frequency for replacement
CVC 1220CS
CVC 1220CS

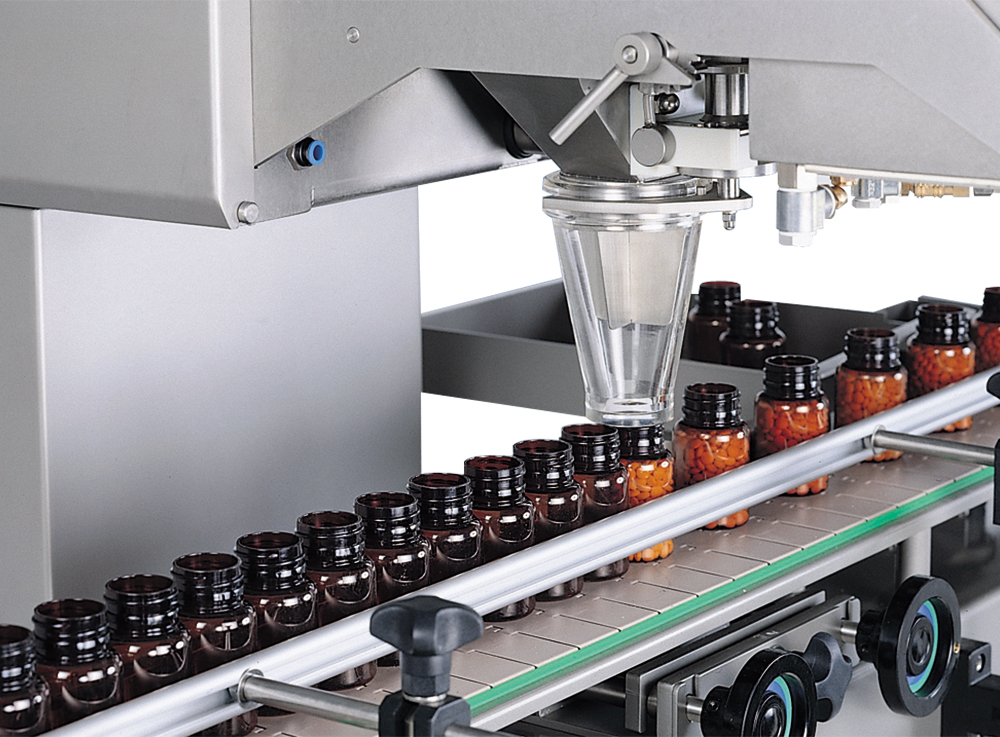

Single or Double Bottle Discharge
Single or Double Bottle Discharge

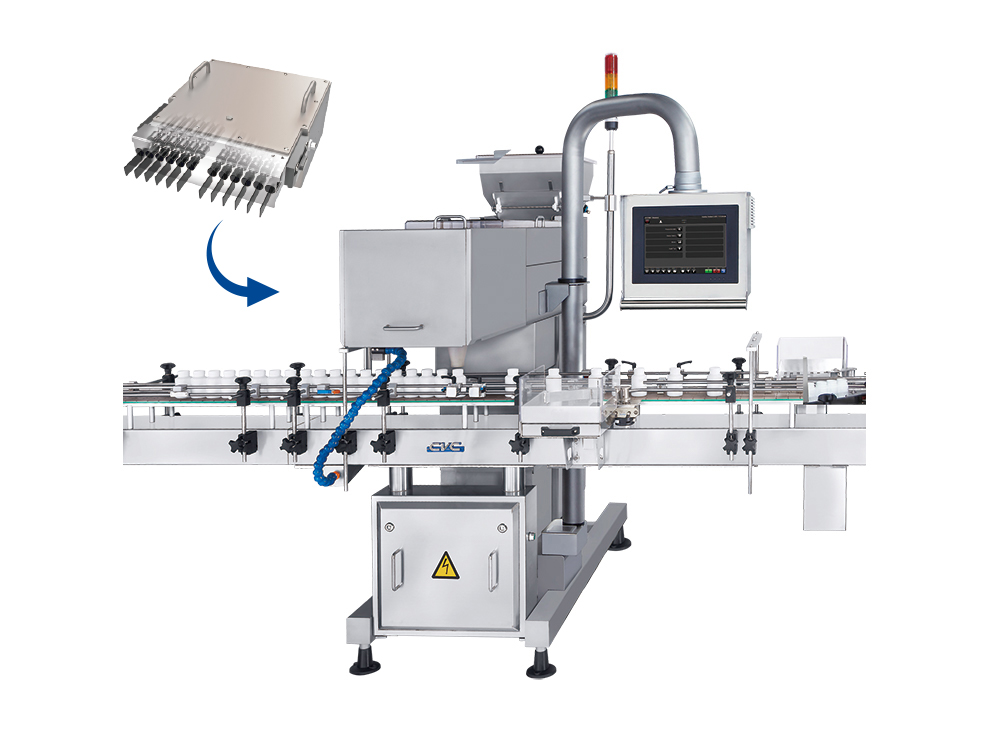

CVC 1220CS (SERVO-DRIVEN FLAPS)
CVC 1220CS (SERVO-DRIVEN FLAPS)

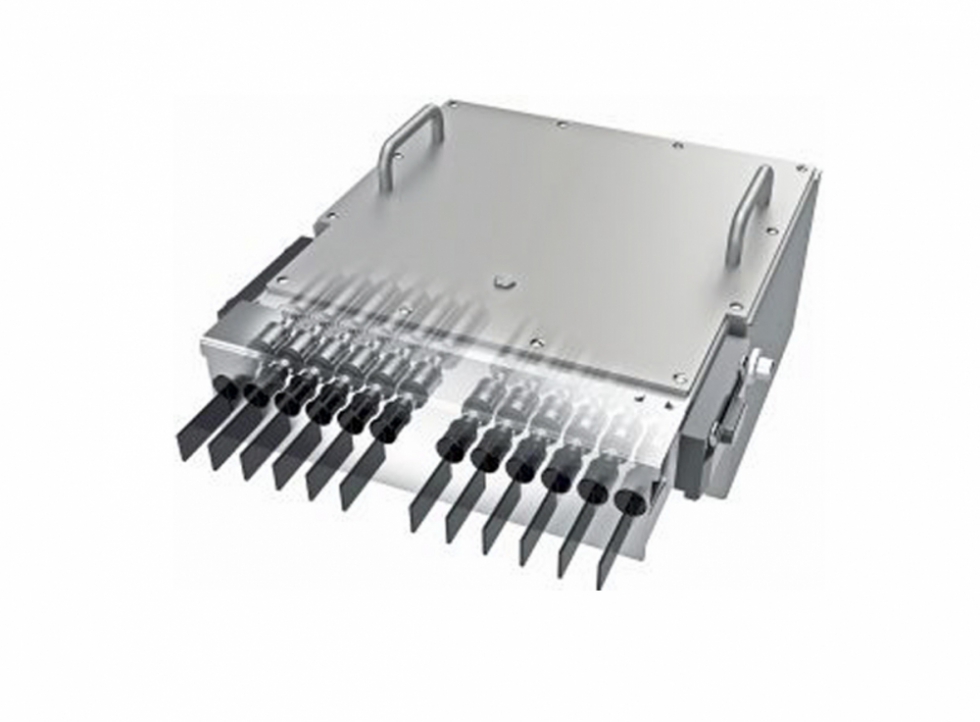

SERVO-DRIVEN FLAP ASSEMBLY
SERVO-DRIVEN FLAP ASSEMBLY

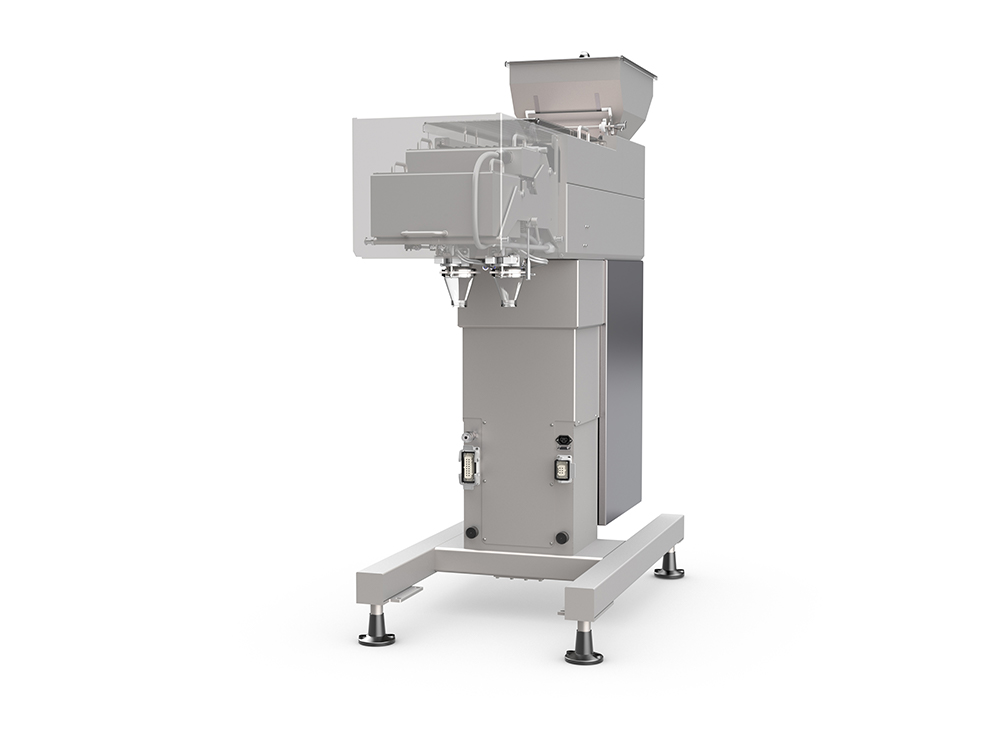

Vibration units separate
Vibration units separate

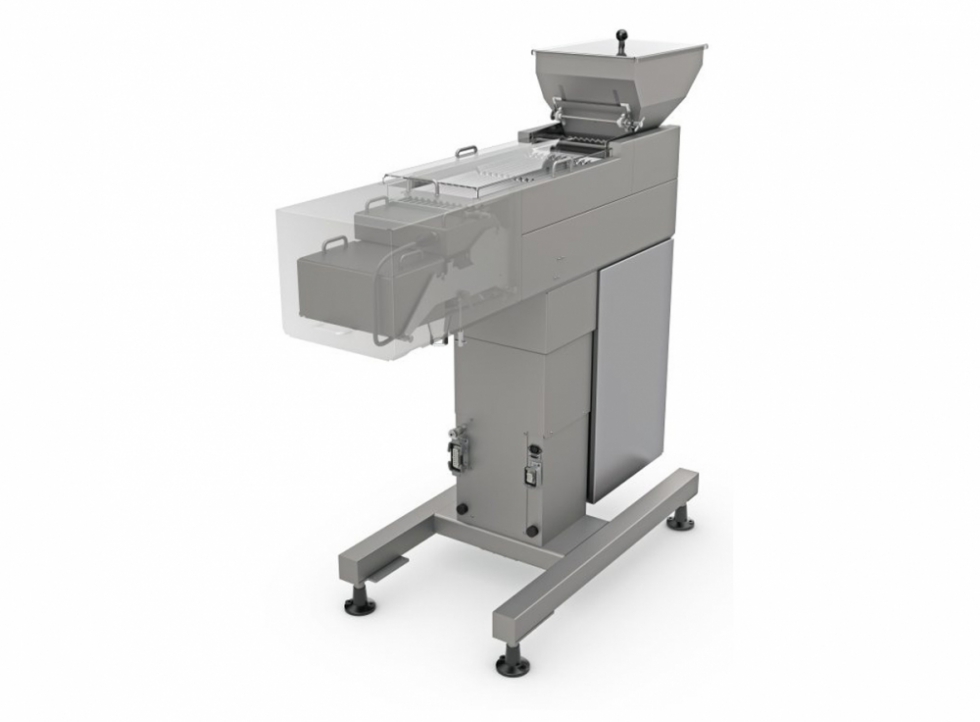

CVC 1220CS
CVC 1220CS

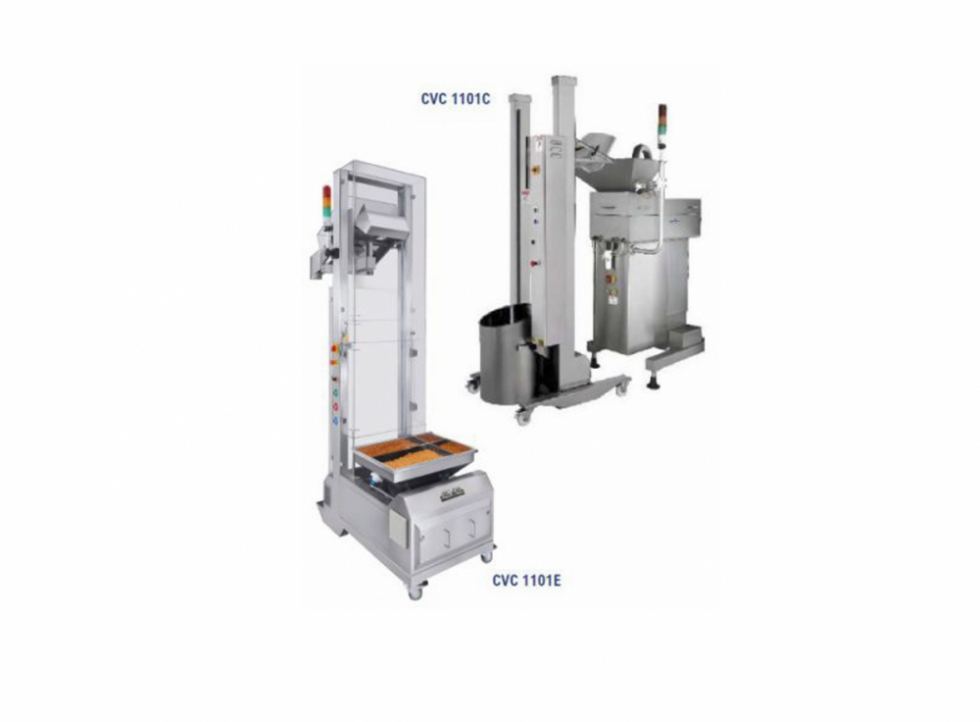

OPTIONAL: TABLET FEEDERS
OPTIONAL: TABLET FEEDERS
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • Channel blocker
  • Container upside down or fallen sensor
  • Floor loaded pre-feeder with integrated controls
  • Hopper level control system with tower lamp
  • Industrial PC, Windows 10 (21CFR Part 11 Compliant)
  • Static eliminator bar
  • Dual counting heads are available
  • Tablet Inspection Vision System (OEM)

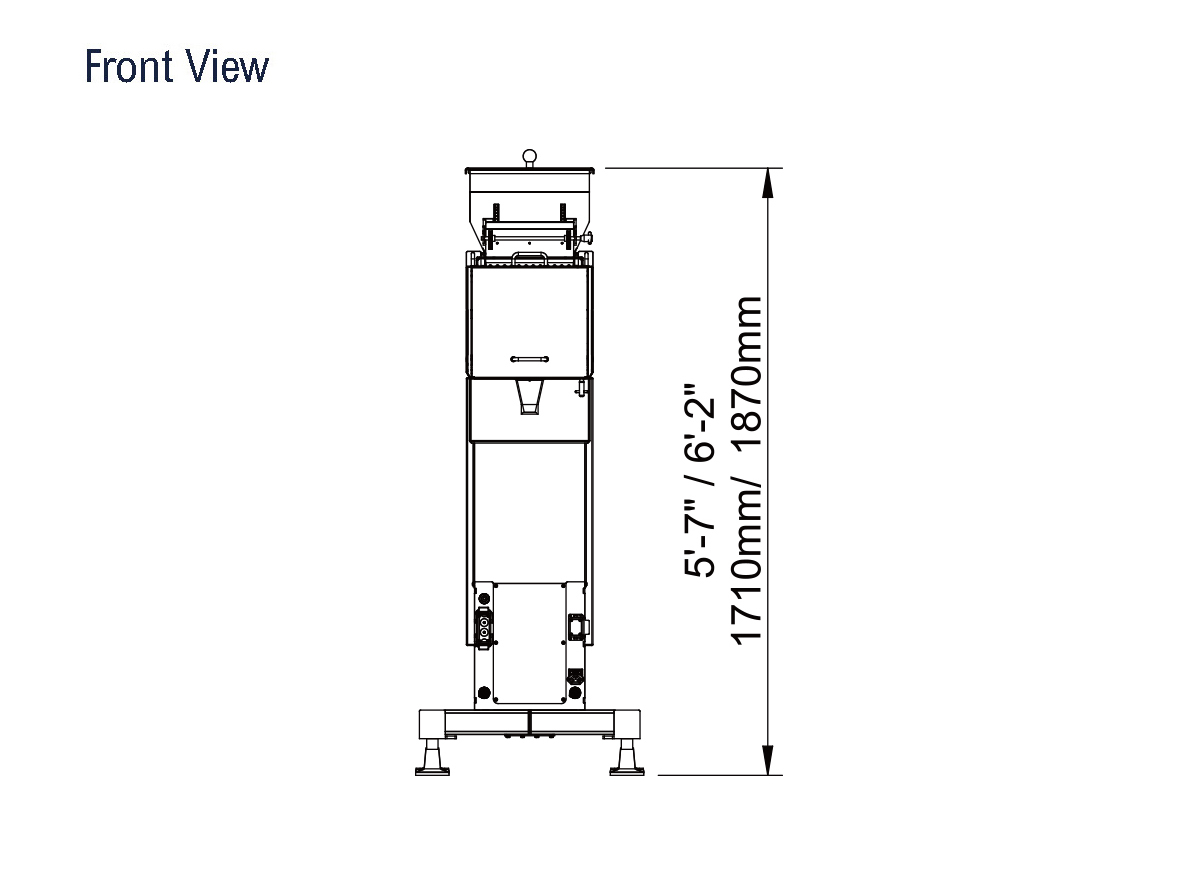

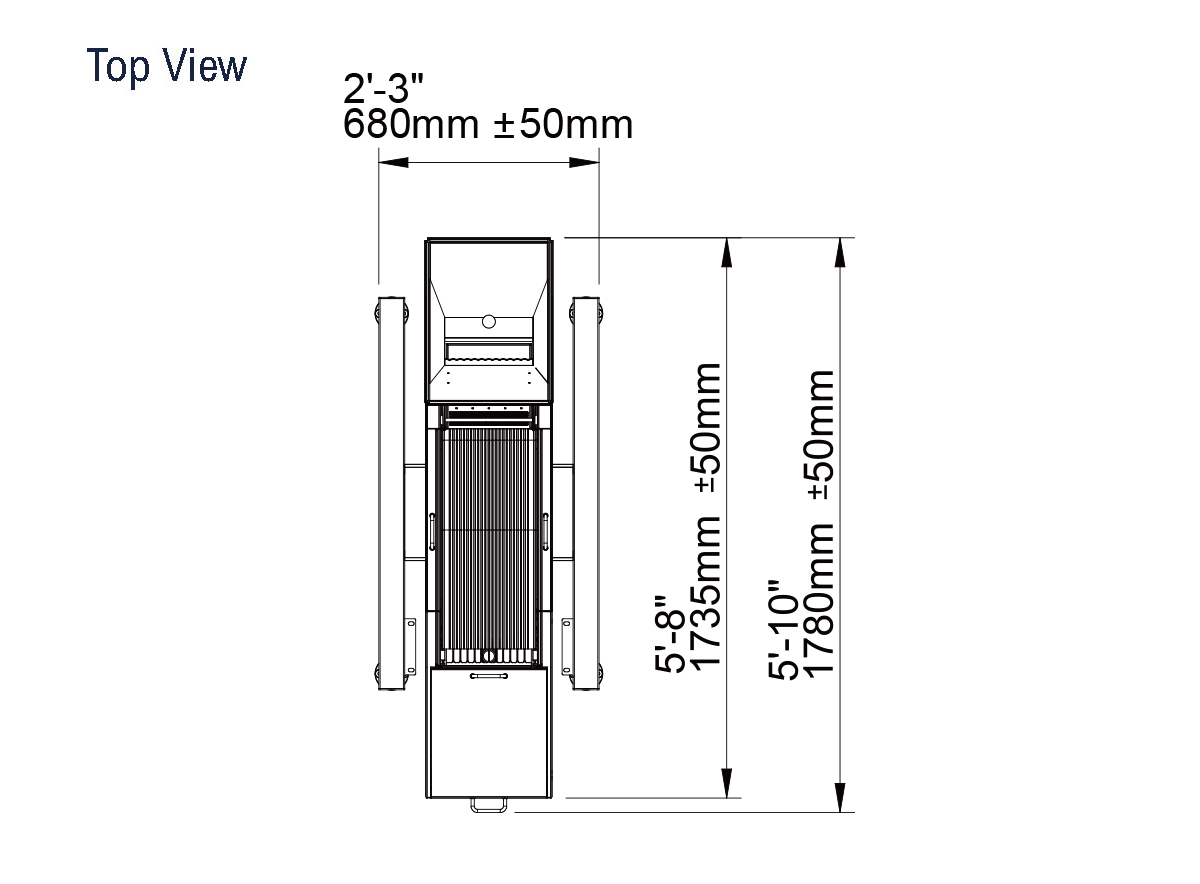

MACHINE LAYOUTS:


The dimensions shown are for standard machine. The conveyor can be extended: the length may vary based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year par ts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.


The machine comes standard with an automatic dust compensation system, dual vacuum ports, product count verification, and reject. The 1220CS can be setup to run one bottle using all 12 channels or two bottles using 6 channels for each bottle. Options include hopper level control with tow er lamp, upside down bottle sensor, static eliminator bar, channel blocker, and floor loaded tablet pre-re-feeder.

Technical Specifications CVC 1220CS Technical Specifications
Productivity up to 55±5 BPM with single discharge funnel
/ 85±5 BPM with double discharge funnel
(subject to trial confirmation)
Applicable Size Product:
Length: 2-30 mm (1⁄16” to 1 1⁄4”)
Width/Dia.: 2-20 mm (1⁄16” to3⁄4”)
Bottle:
Dia.: Ø30-120 mm (1 1⁄4” to 4 3⁄4”)
Height: 40-200 mm (1 1⁄2” to 7 3⁄4”)
Hopper Capacity 35 L (1.24 Cuft)
Power source 230 V, 50/60 HZ, 1 PH
Power Consumption 950 VA (4.2 A)
Air Pressure 6 bar (87 psi)
Air Consumption 25 NL/MIN. (1CFM)
Machine Weight 475 kg (1,047 lbs)
Noise Level 75-80 dB
