Tablet/Capsule Elevator Feeder

CVC 1101E

The CVC 1101E pre-feeding system is a pharmaceutical grade low profile tablet pre-feeder, designed with a streamline easy-to-clean hopper, that would accommodate both tablets and capsules. The system is a compactly designed with hopper bin lifting system to automatically elevate and deliver tablets or capsules from floor level to the hopper of the counter.

The CVC 1101E can be configured for single or dual head counting systems (depending on the counter layout)..

STANDARD FEATURES

  • On/off is automatically triggered.
  • Timer for tablet/capsule feeding time control.
  • Height adjustment is electrically controlled with auto lock; hopper is hooked when power cuts.
  • All contact parts are made of SS316.
  • Full cGMP compliance.

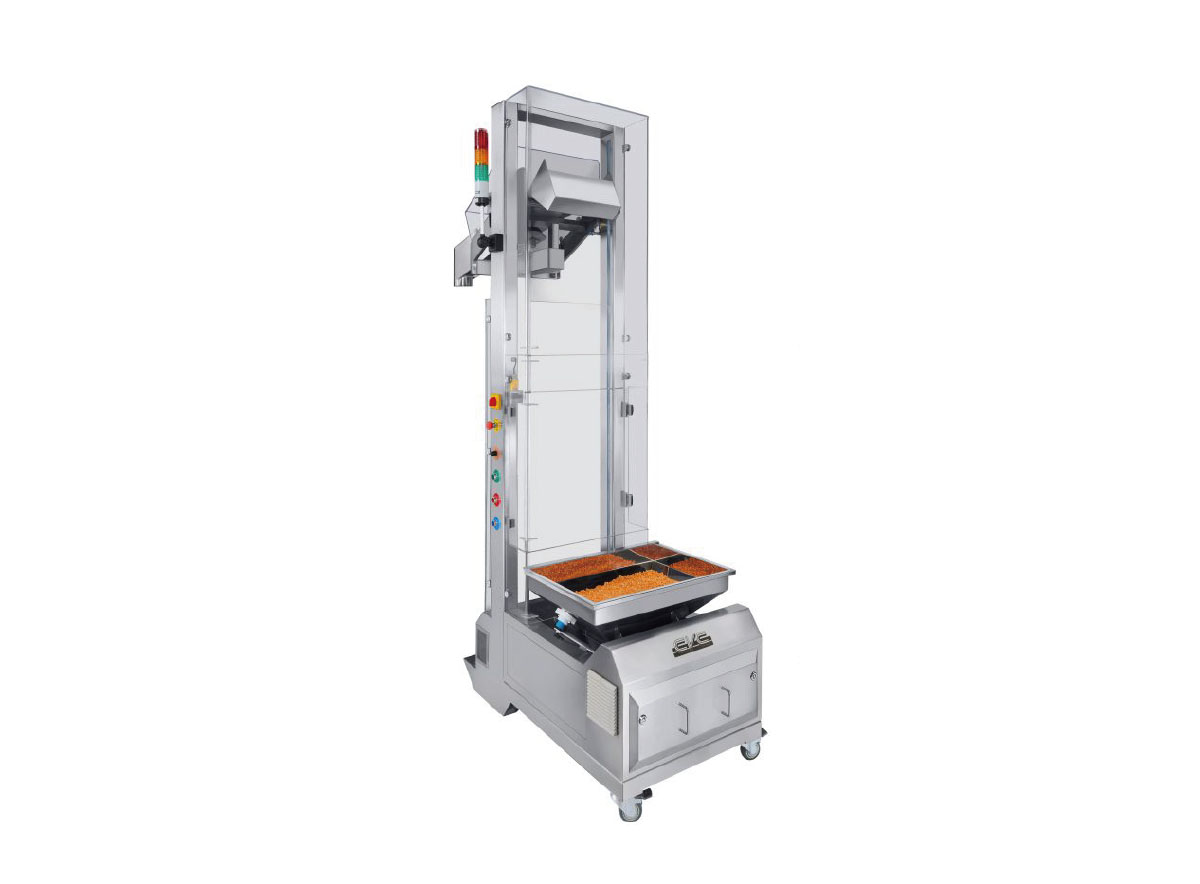

CVC 1101E
CVC 1101E

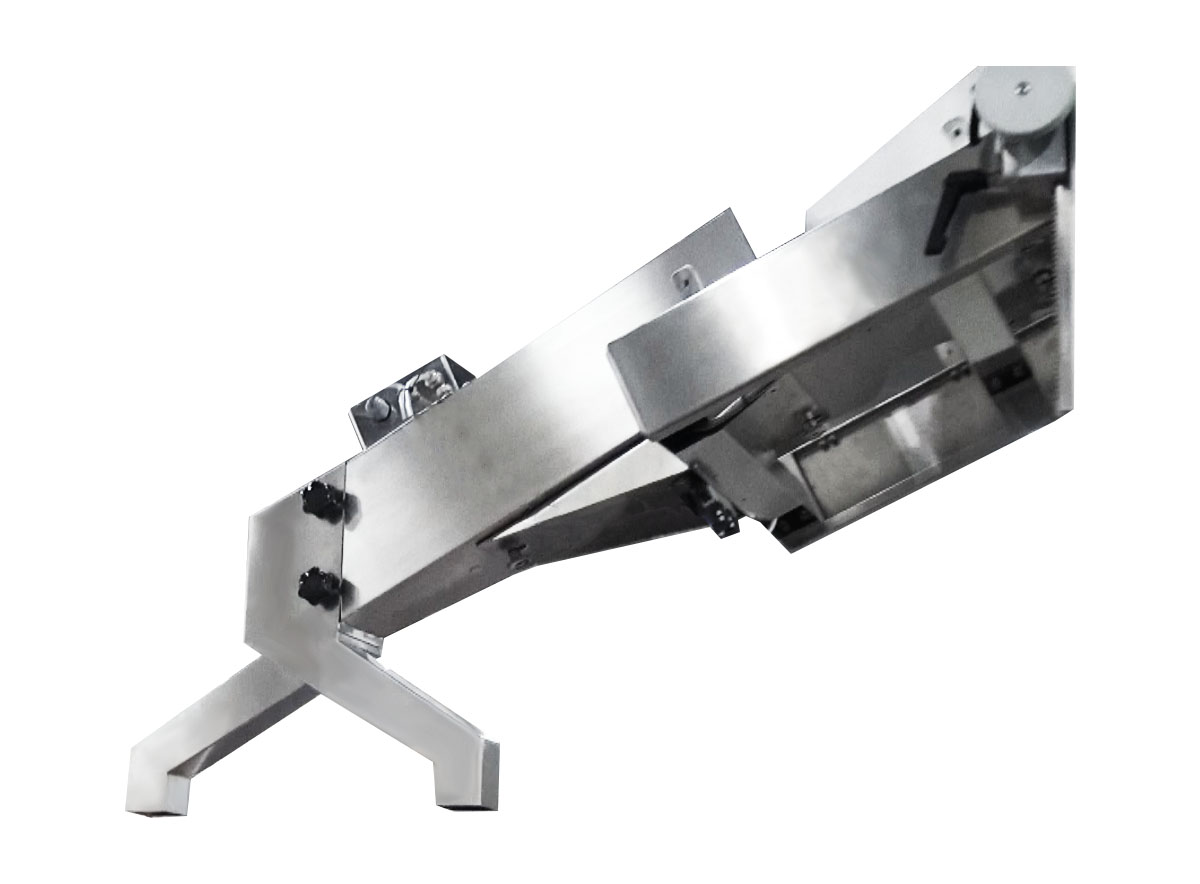

One-on-two discharge funnel
One-on-two discharge funnel
Previous Next Play Pause

AVAILABLE OPTIONS

  • One-on-two discharge funnel

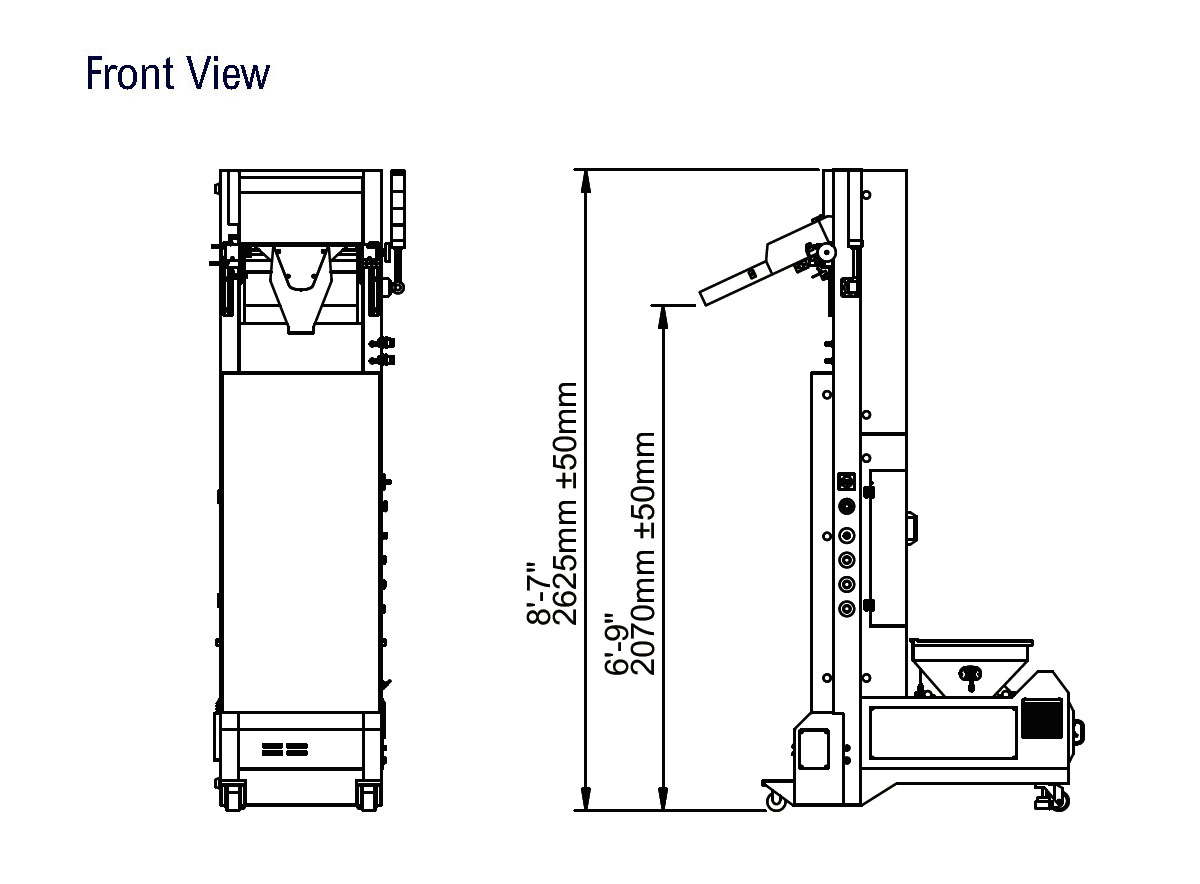

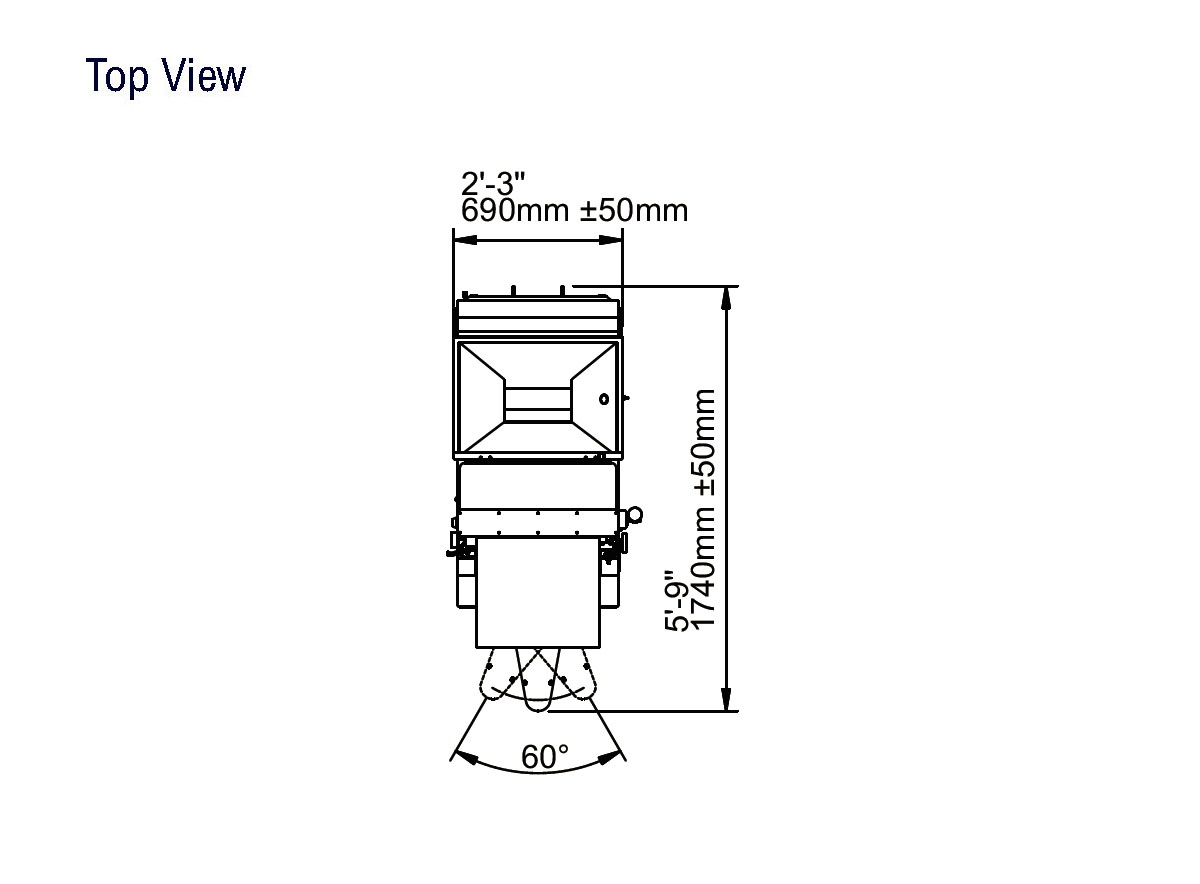

MACHINE LAYOUTS:


The dimensions shown are for standard machine. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full arranty details are included in our equipment proposals.


Technical Specifications CVC 1101E Technical Specifications
Productivity Up to 20,000 PPM (subject to trial confirmation)
Applicable Size Dia.: Ø⅛" to ؾ" (Ø3 to Ø20 mm)
Length: ⅛" to 1¼" (3 to 30 mm)
Width.: ⅛" to ¾" (3 to 20 mm)
Hopper Capacity 50L (1.8 Cuft)
Power source 220 V, 50/60 HZ, 1 PH
Power Consumption 860 VA (4 Amp)
Consumption Machine Dimensions 2’-3” x 5’-9” x 8’-7” (690 x 1,740 x 2,625 mm) (L x W x H
Machine Weight 350 kg (772 lbs)
