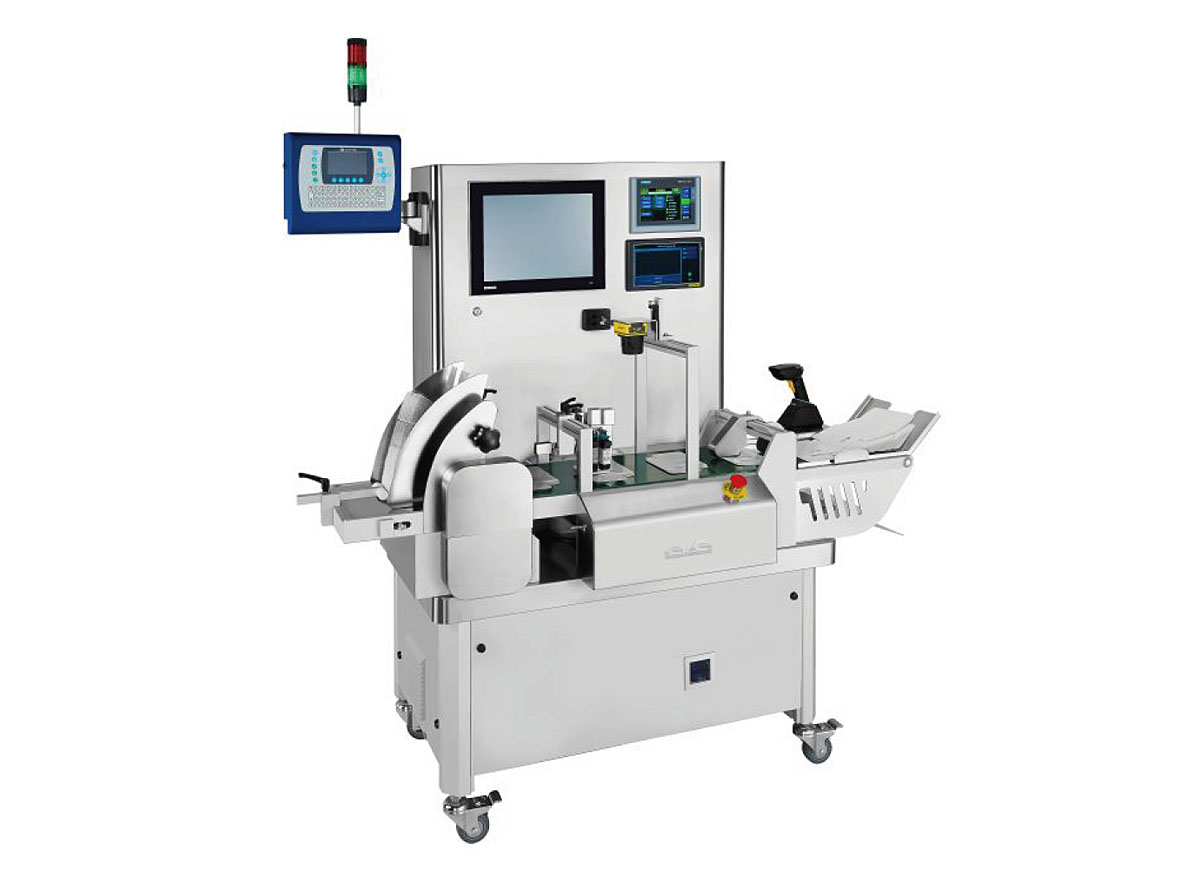

Flat Carton Printing and Inspection Machine

CVC 200T

The CVC Flat Carton Printing and Inspection Machine is a compact system designed for packaging and pharmaceutical serialization and track & trace requirements.

STANDARD FEATURES

  • Flat Carton Stack Feeder for non-stop operation, every single flat carton is well separated and fed.
  • Fully integrated printer and camera.
  • Compact and off-line operation.
  • Belt speeds are synchronized for smooth flat carton transportation.
  • Exceptional print quality, print speed is synchronized with the system speed.
  • Use with a vision camera to check and verify code and print information.
  • Reliable ejection mechanism for verification failure cartons
  • QR code Scanner is used to check and verify running status of flat cartons.
  • UPS(Uninterruptible Power Supply) is to provide power failure protection of the computer system.
  • Siemens PLC.
  • Type 304 stainless steel bin, frame, enclosure panels.
  • ISO 9001 : 2015 certified
CVC 200T
CVC 200T
Previous Next Play Pause

TECHNICAL SPECIFICATIONS

AVAILABLE OPTIONS:

  • 21 CFR PART 11 compliance
  • OPC UA for data collection

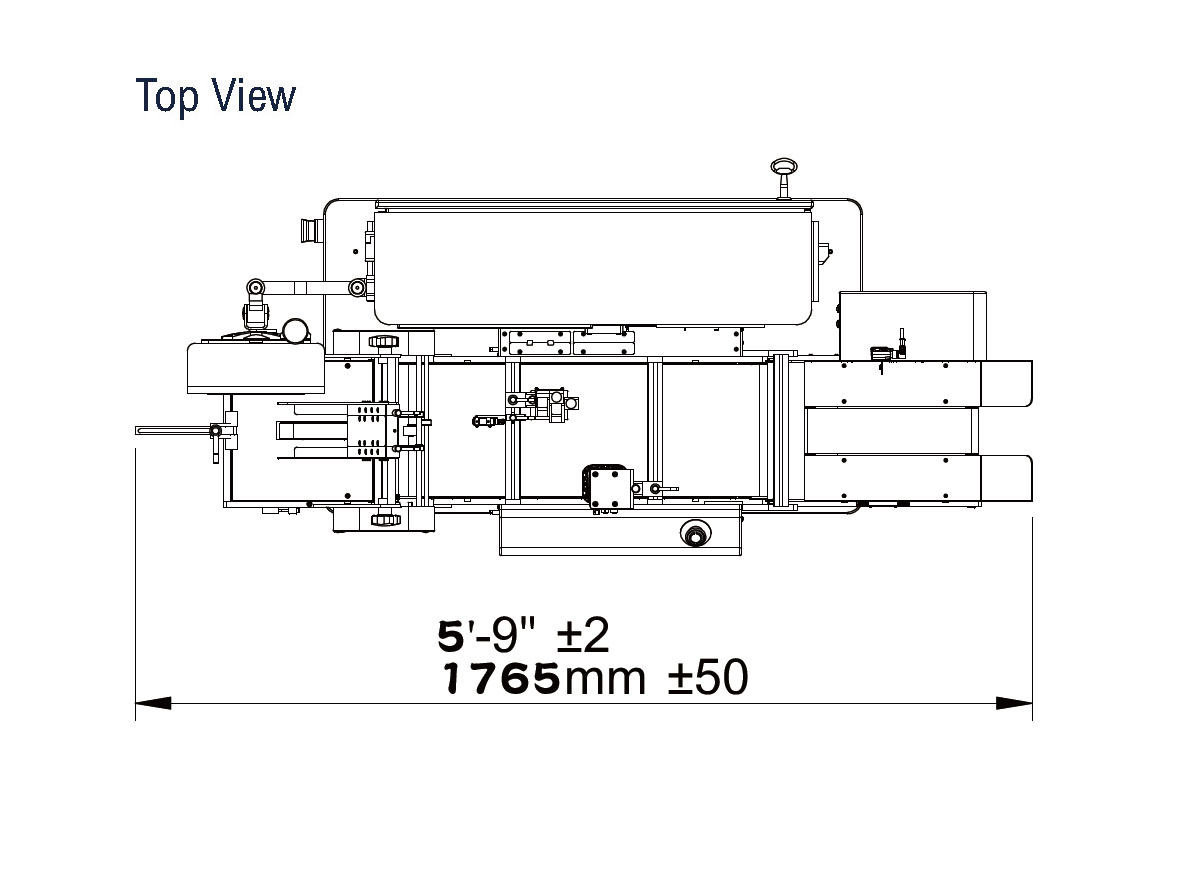

MACHINE LAYOUTS:


The dimensions shown are for standard machine. The conveyor can be extended: the length may var y based on selected options. This machine can run independently or be integrated into an automated packaging line. All CVC equipment is covered by a one-year parts warranty. Full Warranty details are included in our equipment proposals or can be found on our website.

Technical Specifications CVC 200T Technical Specifications
Max. Productivity Up to 120 PPM (subject to trial confirmation)
Applicable Size Cartons (L x W x H): 70-200 x 105-260 x 0.1-2.0 mm
Power source 220V, 50/60 HZ, 1 PH
Power Consumption 800 VA (3.6 A)
Air Pressure 6 bar (87 psi)
Air Consumption 20.96 NL/min (0.74 CFM)
Consumption Machine Dimensions 1,765 x 705 x 1,945 mm (5'-9" x 2'-4" x 6'-4" )
Machine Weight 247 kg (543 lbs)
Operator’s Interface IPC
ADVANTECH Industrial PC
15” Touch Screen
Print System Domino Gx-series inkjet printer
- Applicable for printing GTIN, Batch Number, EXP, SN
and Data Matrix Codes.
Vision Camera Verification System - Type of Camera: Cognex In-Sight 7801
- Camera light source holder is included.
